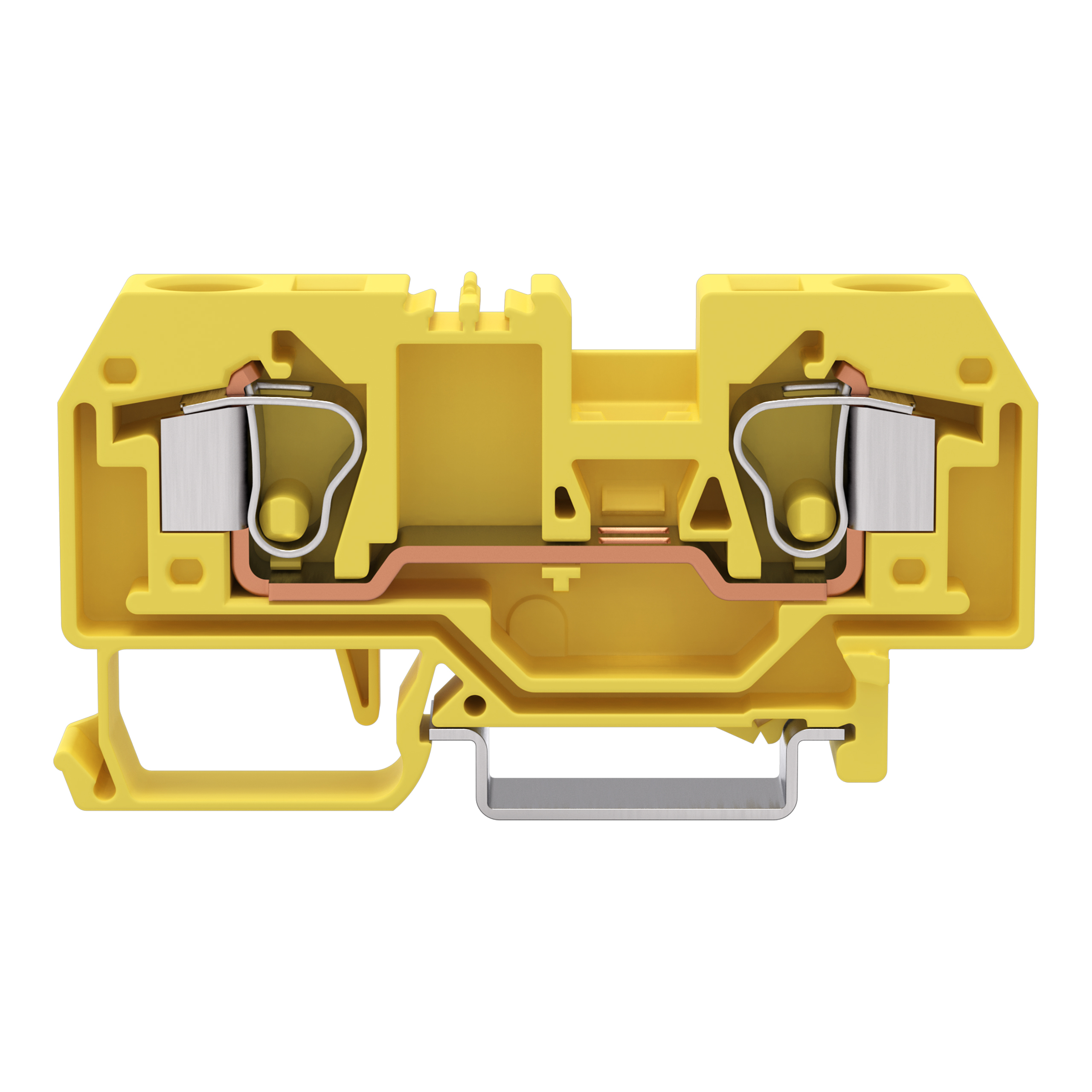

2-przewodowa złączka przelotowa 10 mm², żółty
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 284-906 |
GTIN(EAN) | 4066966232028 |
Price unit | piece |
Catalog price | 17,27 zł (14,04 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
złączka przelotowa 2-przewodowa; 10 mm²; opis na środku; na szynę TS 35 x 15 i 35 x 7,5; CAGE CLAMP®; 10,00 mm²; żółty
Additional features:
Information | Value |
---|---|
Net weight: | 23,06 g |
ETIM class: | Feed-through terminal block |
Material insulation body: | Thermoplastic |
Operating temperature: | 105 - 105 °C |
Height: | 78 mm |
Connectable conductor cross section solid-core: | 0.2 - 10 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Rated current In: | 57 A |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | yes |
Type of electrical connection 1: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.2 - 10 mm² |
Number of levels: | 1 |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 0.2 - 10 mm² |
Explosion-tested version 'Ex e': | no |
Number of clamp positions per level: | 2 |
Internally connected stages: | no |
Colour: | Yellow |
Width: | 10 mm |
Rated voltage: | 800 V |
Depth: | 35 mm |
