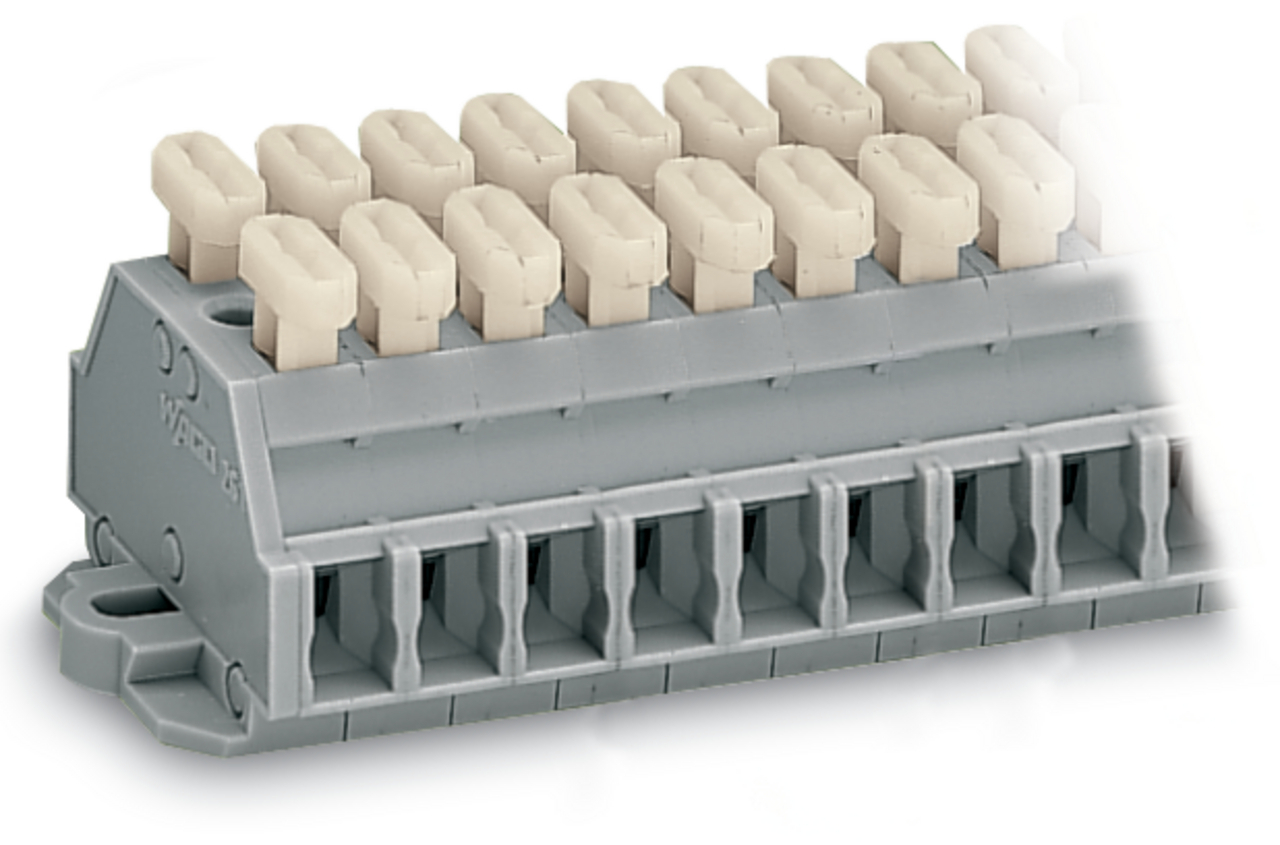

Listwa zaciskowa 2-przewodowa przyciski po obu stronach, szary
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 261-431/341-000 |
| GTIN(EAN) | 4017332283977 |
| Price unit | piece |
| Catalog price | 38,07 zł (30,95 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
listwa zaciskowa 2-przewodowa; przyciski po obu stronach; z uchwytami montażowymi; 11-bieg.; do mocowania śrubowego i podobnego typu; otwór montażowy Ø 3,2 mm; 2,5 mm²; CAGE CLAMP®; 2,50 mm²; szary
Additional features:
| Information | Value |
|---|---|
| Net weight: | 30,91 g |
| ETIM class: | Single- and multi-pole terminal strip |
| Number of clamp positions per pole: | 2 |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -30 - 85 °C |

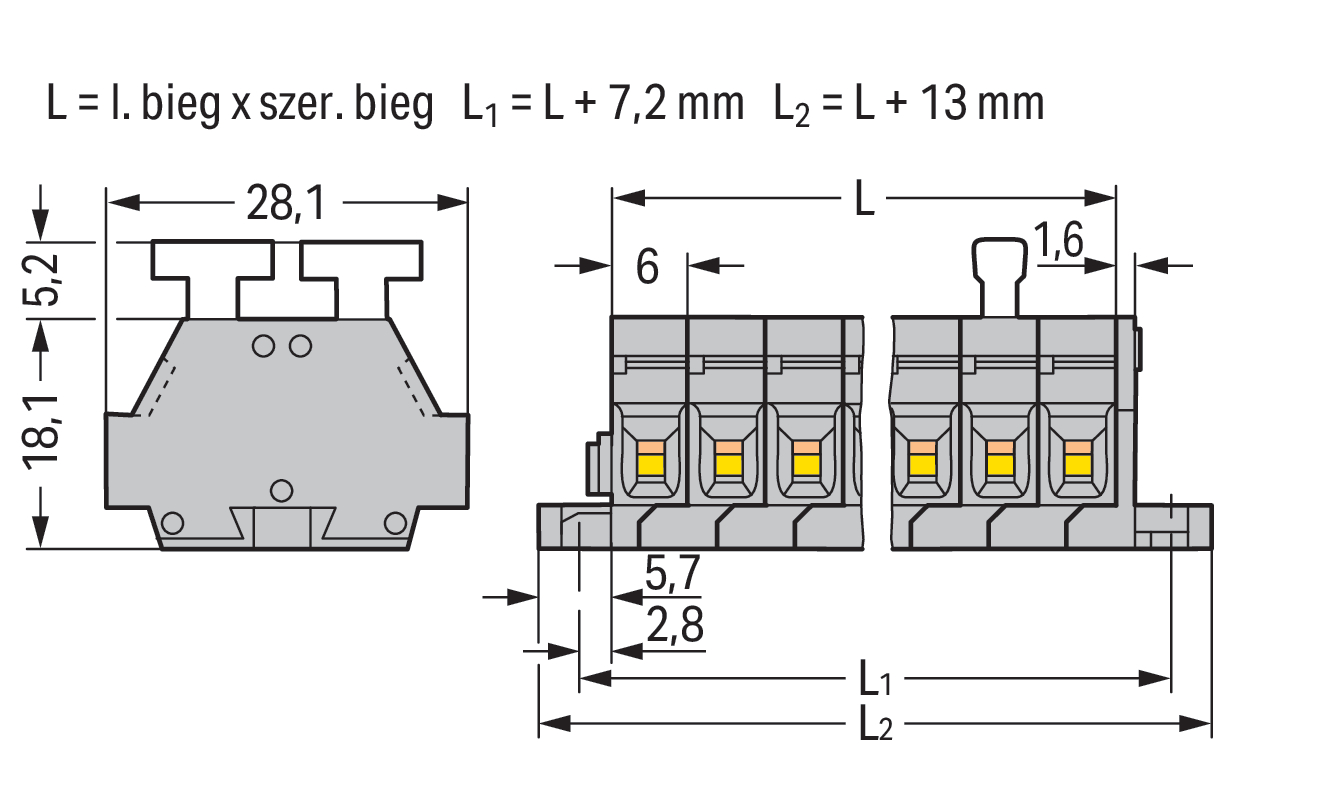

| Height: | 28.1 mm |
| Connectable conductor cross section solid-core: | 0.08 - 2.5 mm² |
| Halogen free: | yes |
| Mounting method: | Other |
| Drill hole distance centrically: | 73.2 mm |
| Rated current In: | 24 A |
| Inflammability class of insulation material according to with UL94: | V0 |
| Closing plate required: | no |
| Type of electrical connection 1: | Spring clamp connection |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 2.5 mm² |
| Connectable conductor cross section multi-wired: | 0.08 - 2.5 mm² |
| Number of poles: | 11 |
| Transparent: | no |
| Explosion-tested version 'Ex e': | no |
| Colour: | Grey |
| Width: | 79 mm |
| Rated voltage: | 500 V |
| Depth: | 23.3 mm |
