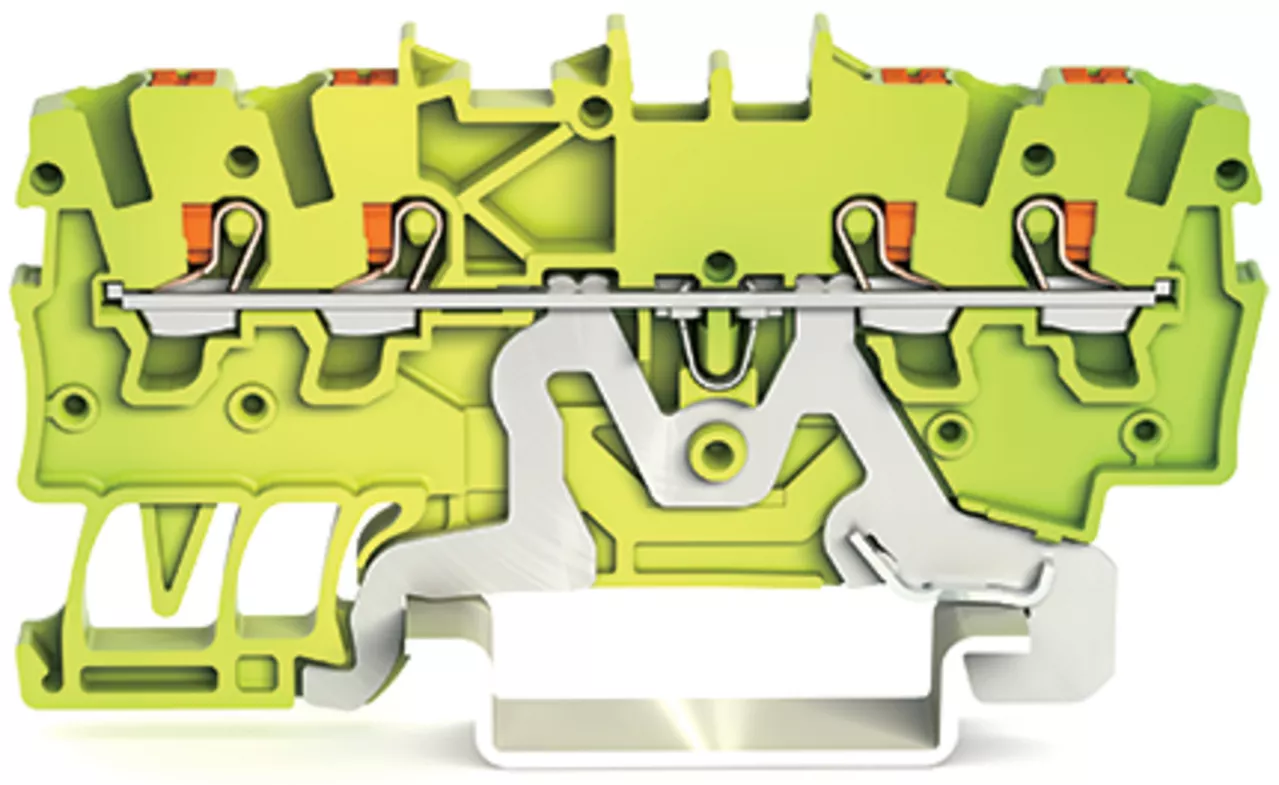

4-przewodowa złączka PE z przyciskiem 1mm², żółto-zielony
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2200-1407 |
GTIN(EAN) | 4055143692014 |
Price unit | piece |
Catalog price | 21,93 zł (17,83 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
złączka PE 4-przewodowa; z przyciskami; 1 mm²; z otworem pomiarowym; opis z boku i na środku; na szynę TS 35 x 15 i 35 x 7,5; Push-in CAGE CLAMP®; 1,00 mm²; żółto-zielony
Additional features:
Information | Value |
---|---|
Net weight: | 7,59 g |
ETIM class: | Ground terminal block |
Operating temperature: | 105 - 105 °C |
Material insulation body: | Thermoplastic |
Height: | 67.9 mm |
Connectable conductor cross section solid-core: | 0.5 - 1.5 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 0.75 mm² |
PEN function possible: | yes |
Mounting method: | DIN rail (top hat rail) 35 mm |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | yes |
Type of electrical connection 1: | Spring clamp connection |
Number of levels: | 1 |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.14 - 1.5 mm² |
Connectable conductor cross section multi-wired: | 0.14 - 1 mm² |
Number of clamp positions per level: | 4 |
Colour: | Green/yellow |
Width: | 3.5 mm |
Depth: | 32.9 mm |
