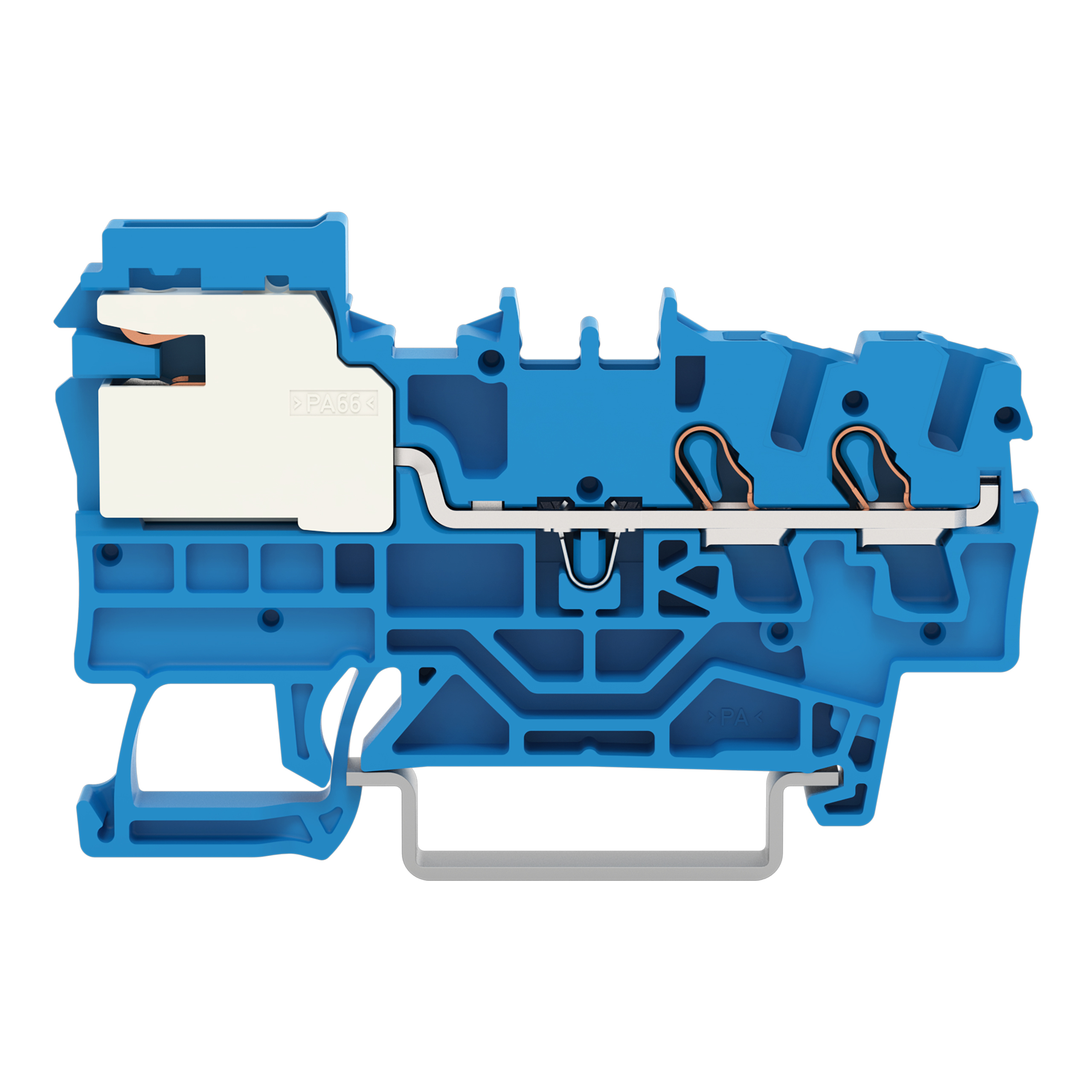

2-przewodowa złączka rozłączalna N 2,5 mm², niebieska
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2002-7214 |
GTIN(EAN) | 4045454802295 |
Price unit | piece |
Catalog price | 19,53 zł (15,88 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
złączka rozłączalna N 2-przewodowa; 2,5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; niebieski
Additional features:
Information | Value |
---|---|
Net weight: | 10,2 g |
ETIM class: | Neutral disconnect terminal block |
Operating temperature: | 105 - 105 °C |
Connecting plate required: | yes |
Rated current In: | 32 A |
Type of electric connection: | Spring clamp connection |
Height: | 67.3 mm |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.25 - 4 mm² |
Connectable conductor cross section multi-wired: | 0.25 - 2.5 mm² |
Connectable conductor cross section solid-core: | 0.75 - 4 mm² |
Material insulation body: | Thermoplastic |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.75 - 2.5 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Colour: | Blue |
Width: | 5.2 mm |
Number of clamp positions: | 2 |
Inflammability class of insulation material according to with UL94: | V0 |
Rated voltage: | 250 V |
Depth: | 38.1 mm |
Suitable for N-busbar: | 3x10 mm |
