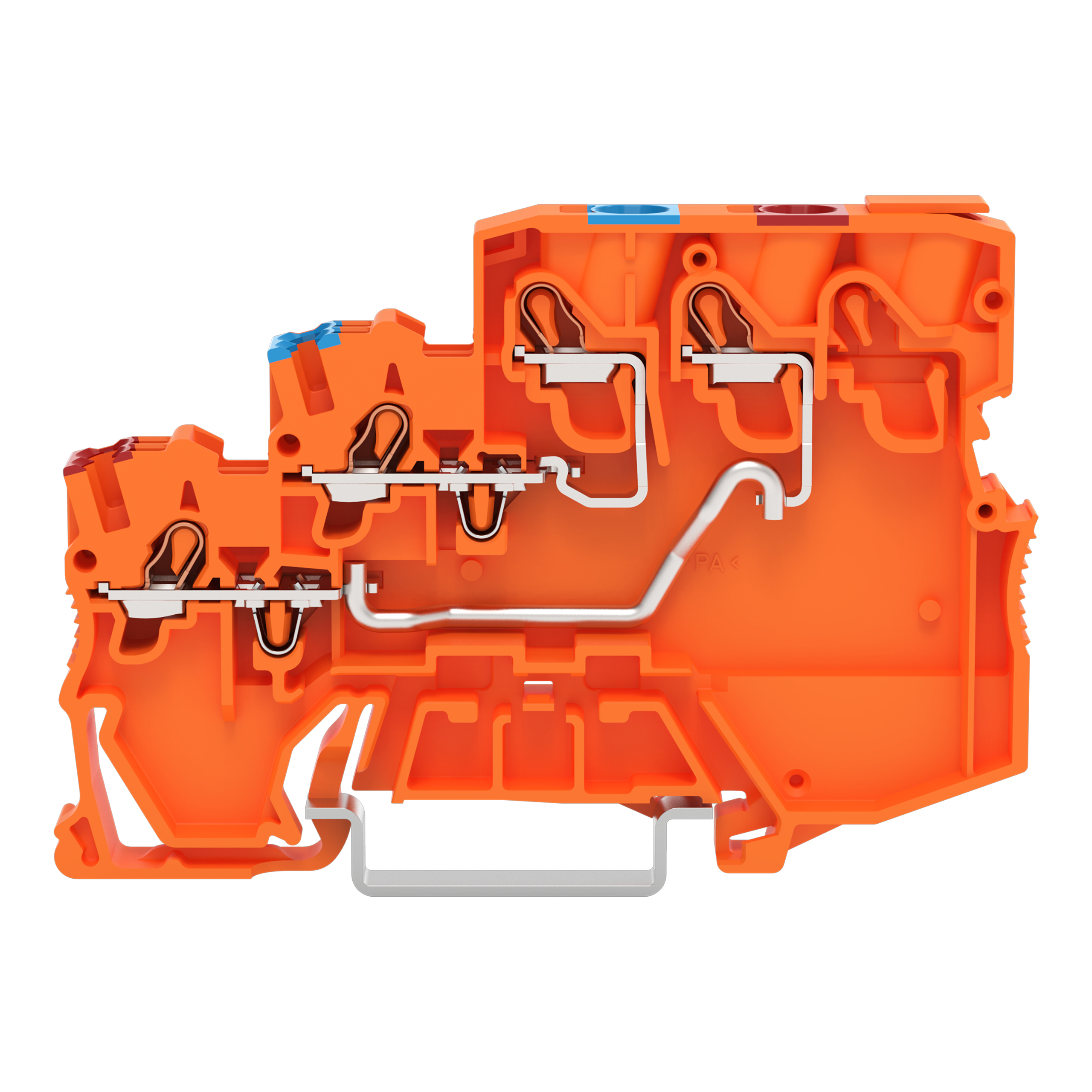

3-przewodowa złączka zasilająca do czujników typu PNP zasilanie od strony szafy sterowniczej, pomarańczowa
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2000-5352 |
GTIN(EAN) | 4055143497121 |
Price unit | piece |
Catalog price | 39,06 zł (31,76 zł + 23% VAT) |
Promotions related to this product
-
Wago. Kupuj w promocji. Oszczędzaj i odbieraj nagrody
Promocja skierowana wyłącznie dla Klientów spółki Karel 2 sp. z.o.o.
Dotyczy asortymentu firmy Wago - złączki listwowe i złączki instalacyjne (bez zestawów) -
WAGO - Idealne połączenie
Kup produkty marki WAGO za minimum 1000 zł brutto i odbierz jedną z trzech nagród.
Promotion active until 07/31/2024
Description:
Additional features:
Information | Value |
---|---|
Net weight: | 15,82 g |
ETIM class: | Sensor/actuator terminal block |
Disconnect function: | no |
Operating temperature: | 105 - 105 °C |
Cross connectable: | yes |
Explosion-tested version 'Ex e': | no |
Rated current In: | 28 A |
Height: | 81.1 mm |
Number of levels: | 3 |
Closing plate required: | yes |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.14 - 1.5 mm² |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 0.14 - 1 mm² |
Connectable conductor cross section solid-core: | 0.5 - 1.5 mm² |
Material insulation body: | Thermoplastic |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 0.75 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Number of clamp positions per level: | 2 |
Internally connected stages: | no |
Colour: | Orange |
Width: | 7 mm |
Inflammability class of insulation material according to with UL94: | V0 |
With power supply function: | yes |
LED switching for: | No |
Rated voltage: | 250 V |
With PE connection: | no |
With shield connection: | no |
Depth: | 49.4 mm |
Colour light source: | Green |
