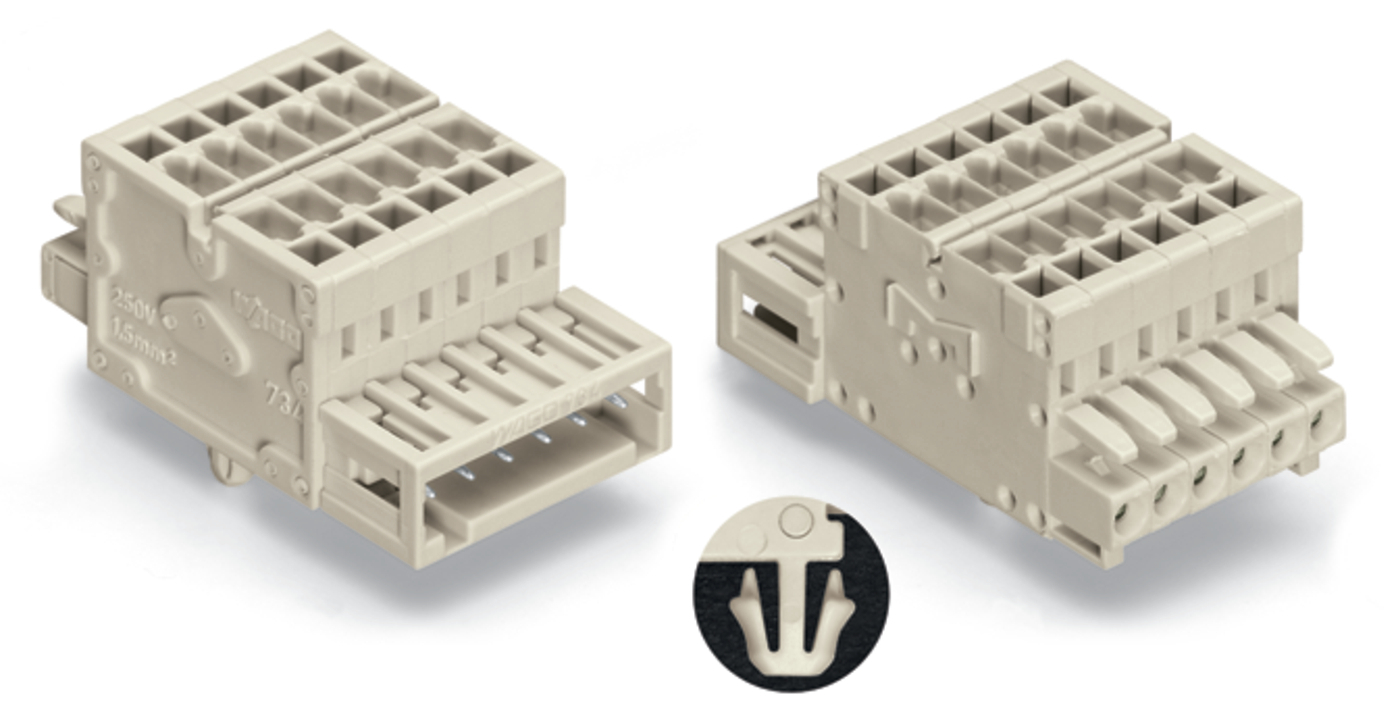

2-przewodowe wtyki kombi pełna ochrona przed błędnym wetknięciem, jasnoszary 734-363/008-000
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 734-363/008-000 |
| GTIN(EAN) | 4045454944179 |
| Price unit | piece |
| Catalog price | 44,49 zł (36,17 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
wtyk kombi 2-przewodowy; 100% ochrona przed błędnym połączeniem; stopki zatrzaskowe; 1,5 mm²; 3-bieg.; raster 3,5 mm; jasnoszary
Additional features:
| Information | Value |
|---|---|
| Net weight: | 7,65 g |
| ETIM class: | Single- and multi-pole terminal strip |
| Number of clamp positions per pole: | 2 |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -60 - 100 °C |

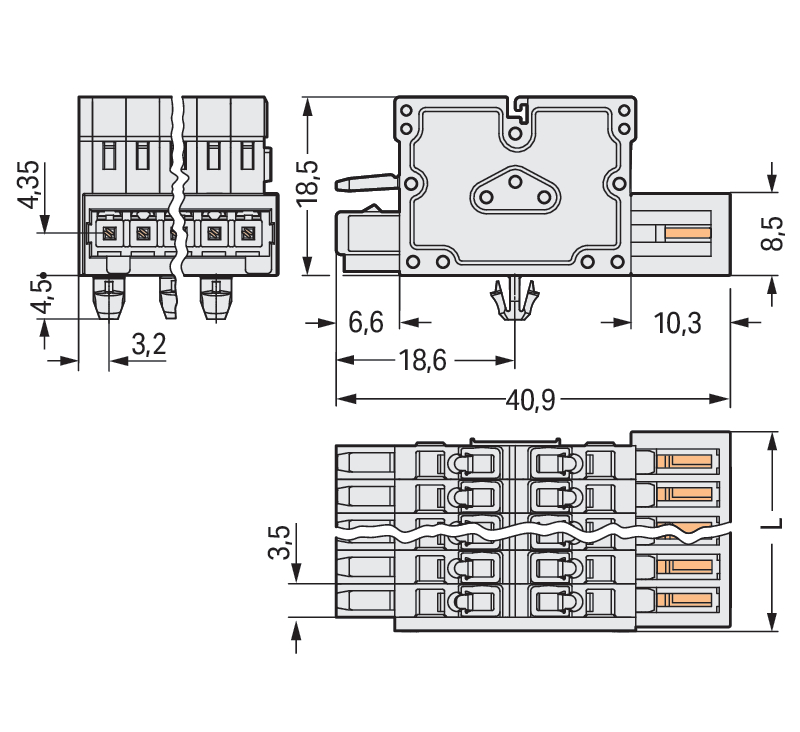

| Height: | 18.5 mm |
| Connectable conductor cross section solid-core: | 0.08 - 1.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.25 - 1.5 mm² |
| Mounting method: | Other |
| Rated current In: | 10 A |
| Inflammability class of insulation material according to with UL94: | V0 |
| Closing plate required: | no |
| Type of electrical connection 1: | Spring clamp connection |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.08 - 1.5 mm² |
| Connectable conductor cross section multi-wired: | 0.08 - 1.5 mm² |
| Number of poles: | 3 |
| Transparent: | no |
| Explosion-tested version 'Ex e': | no |
| Colour: | Grey |
| Width: | 3.5 mm |
| Rated voltage: | 160 V |
| Depth: | 40.9 mm |
