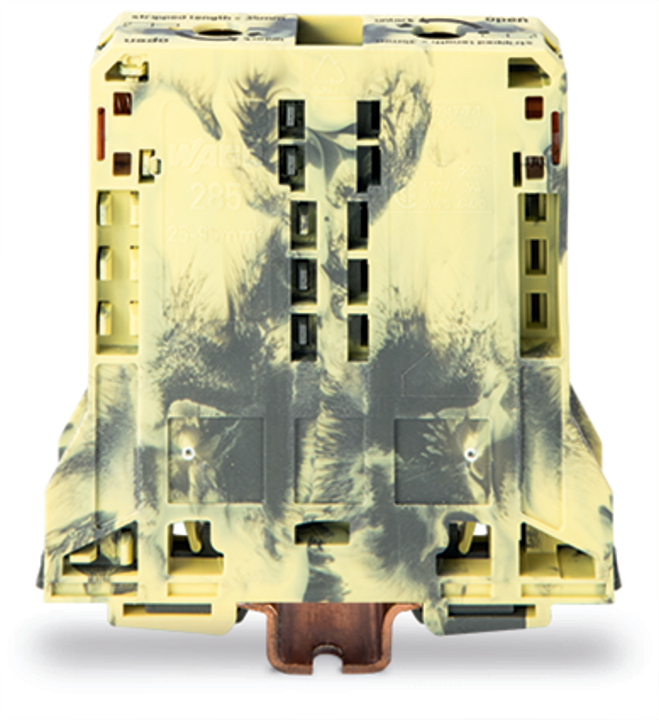

2-przewodowa złączka przelotowa 95 mm², ciemnoszary-żółta 285-191
| Information | Value |
|---|---|
| Supplier | WAGO ELWAG Sp. z o.o. |
| Symbol | 285-191 |
| GTIN(EAN) | 4055143500852 |
| Price unit | piece |
| Catalog price | 177,86 zł (144,60 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
złączka przelotowa 2-przewodowa; 95 mm²; boczne miejsca na oznaczniki; tylko na szynę TS 35 x 15; POWER CAGE CLAMP; 95,00 mm²; ciemnoszary-żółty
Additional features:
| Information | Value |
|---|---|
| Net weight: | 260,7 g |
| ETIM class: | Feed-through terminal block |
| Operating temperature: | 105 - 105 °C |
| Explosion-tested version 'Ex e': | no |
| Rated current In: | 232 A |
| Height: | 107 mm |
| Number of levels: | 1 |
| Closing plate required: | no |
| Connectable conductor cross section fine-strand without cable end sleeve: | 25 - 95 mm² |
| Type of electrical connection 1: | Spring clamp connection |
| Type of electrical connection 2: | Spring clamp connection |
| Connectable conductor cross section multi-wired: | 25 - 95 mm² |
| Connectable conductor cross section solid-core: | 25 - 95 mm² |
| Material insulation body: | Thermoplastic |
| Connectable conductor cross section fine-strand with cable end sleeve: | 25 - 95 mm² |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Number of clamp positions per level: | 2 |
| Internally connected stages: | no |
| Colour: | Multi-coloured |
| Width: | 25 mm |
| Inflammability class of insulation material according to with UL94: | V0 |
| Rated voltage: | 1000 V |
| Depth: | 101 mm |
