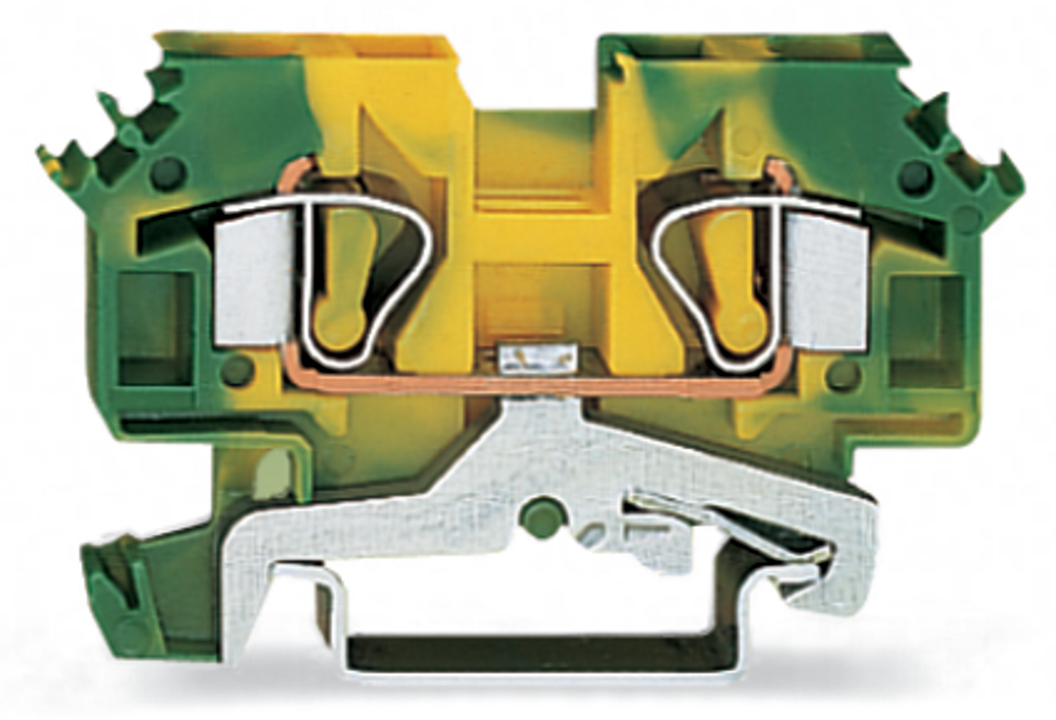

2-przewodowa złączka PE 6 mm², żółto-zielona 282-607
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 282-607 |
GTIN(EAN) | 4045454100209 |
Price unit | piece |
Catalog price | 30,64 zł (24,91 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
złączka PE 2-przewodowa; 6 mm²; boczne miejsca na oznaczniki; na szynę TS 35 x 15 i 35 x 7,5; CAGE CLAMP®; 6,00 mm²; żółto-zielony
Additional features:
Information | Value |
---|---|
Net weight: | 19,09 g |
ETIM class: | Ground terminal block |
Operating temperature: | 105 - 105 °C |
Material insulation body: | Thermoplastic |
Height: | 62 mm |
Connectable conductor cross section solid-core: | 0.2 - 6 mm² |
PEN function possible: | yes |
Mounting method: | DIN rail (top hat rail) 35 mm |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | yes |
Type of electrical connection 1: | Spring clamp connection |
Number of levels: | 1 |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.2 - 6 mm² |
Connectable conductor cross section multi-wired: | 0.2 - 6 mm² |
Number of clamp positions per level: | 2 |
Colour: | Green/yellow |
Width: | 8 mm |
Depth: | 31.5 mm |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Firma Handlowo-Usługowa "LUX-SYSTEM" S.M. Stanek, J.E. Poniedziałek Sp.j.
Szaflary,
ul. Zakopiańska 18
Distance:
Firma Handlowa "ELEKTRET" Spółka komandytowa Jacek Bieda, Agata Mól
Limanowa,
ul. Tarnowska 9D
Distance:
Przedsiębiorstwo Wielobranżowe „ELEKTRO-HURT” Aleksander Winter Sp. z o.o.
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-04-04 15:10:14 |
Files to download: | |
External links: |
