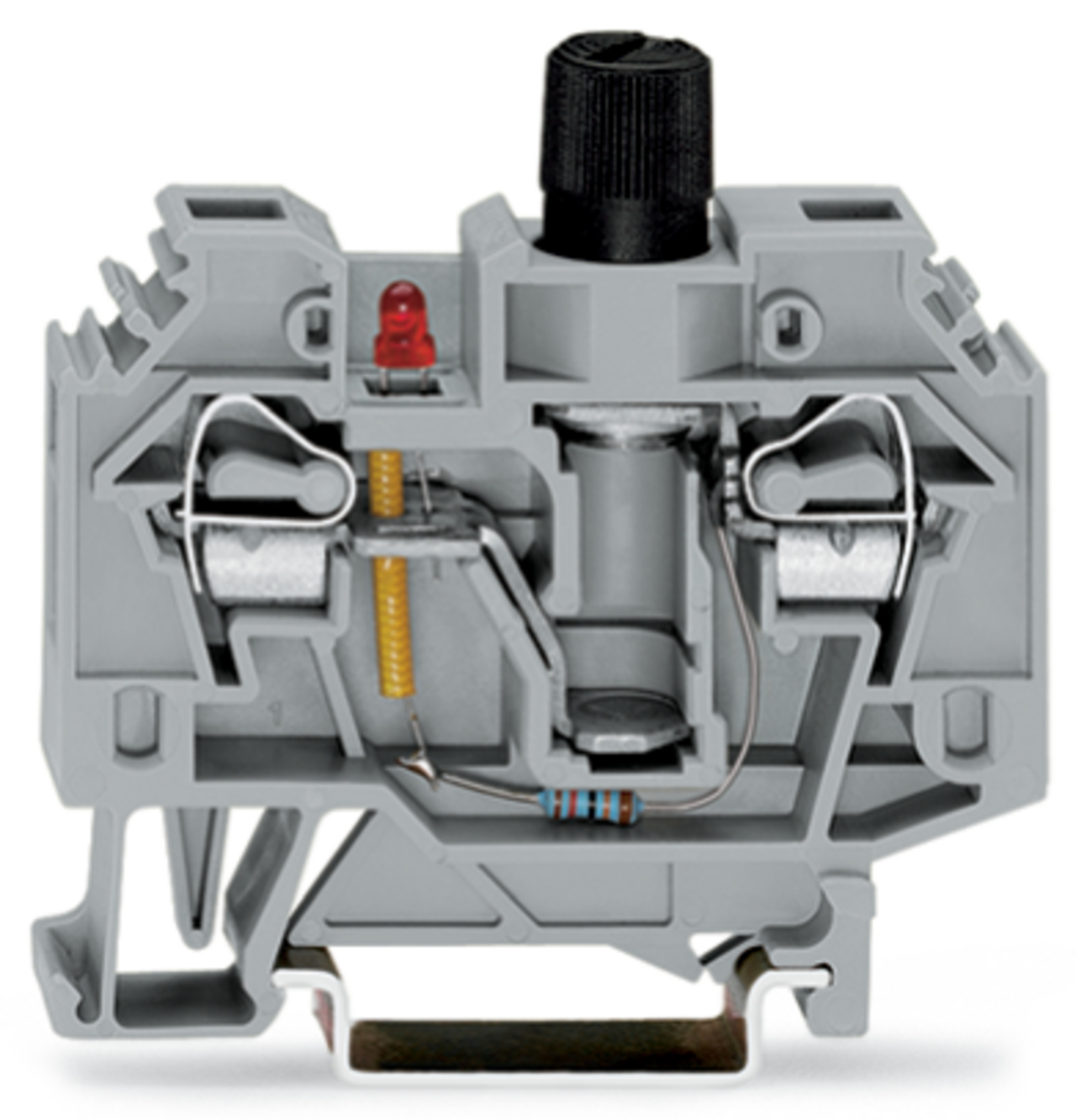

2-przewodowa złączka bezpiecznikowa szara 282-128/281-413
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 282-128/281-413 |
GTIN(EAN) | 4050821110323 |
Price unit | piece |
Catalog price | 76,63 zł (62,30 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:

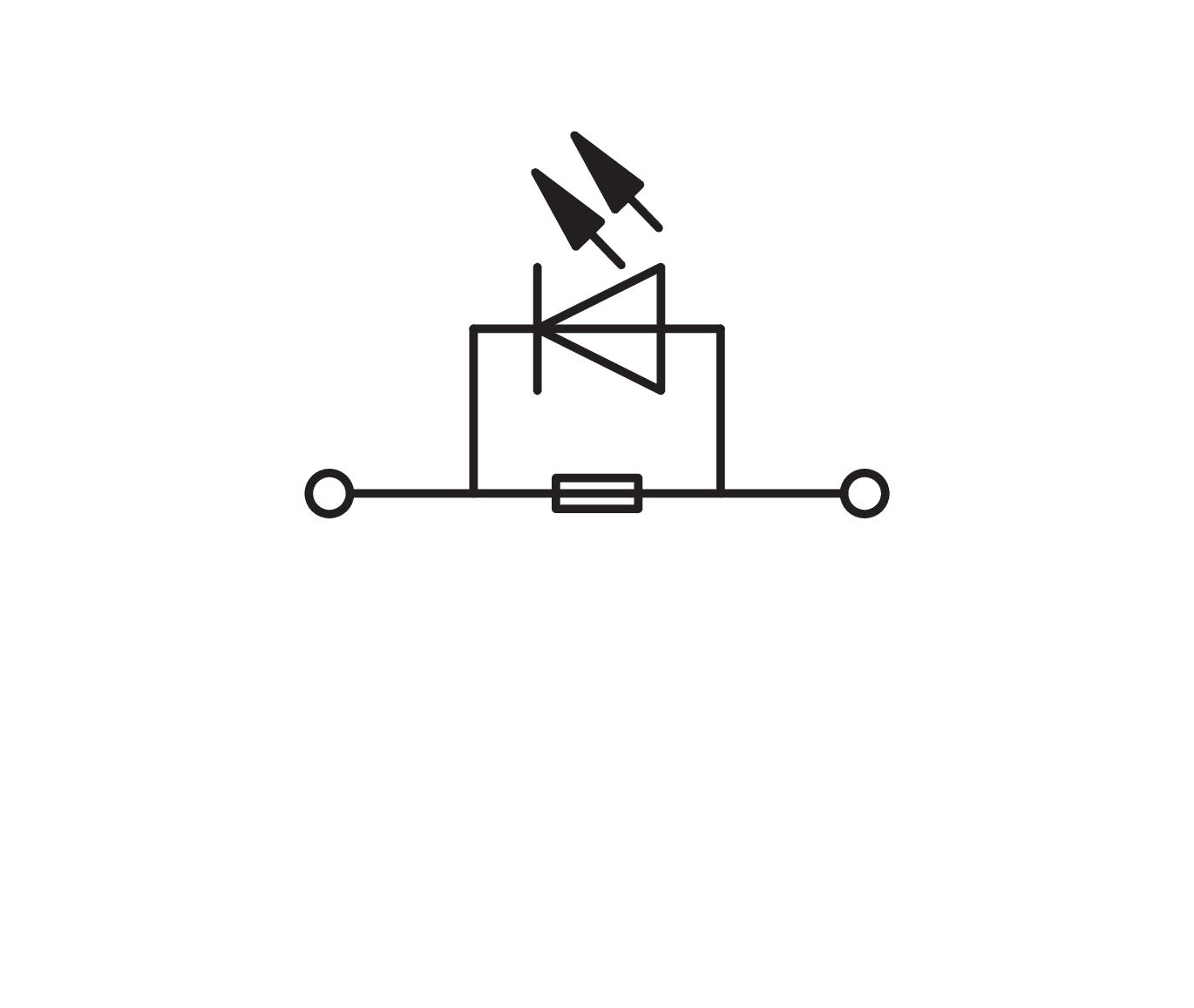

złączka bezpiecznikowa 2-przewodowa; do aparatowej wkładki bezpiecznikowej ¼" x 1¼"; z sygnalizacją przepalenia wkładki przez LED; 24 V DC; na szynę TS 35 x 15 i 35 x 7,5; 6 mm²; CAGE CLAMP®; 6,00 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 27,95 g |
ETIM class: | Fuse terminal block |
Material insulation body: | Thermoplastic |
Operating temperature: | 105 - 105 °C |
Height: | 62 mm |
Connectable conductor cross section solid-core: | 0.2 - 6 mm² |
Voltage type for defect indication: | DC |
Mounting method: | DIN rail (top hat rail) 35 mm |
Rated current In: | 10 A |
Supply voltage for defect-indication: | 24 - 24 V |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | yes |
Type of electrical connection 1: | Spring clamp connection |
Number of levels: | 1 |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.2 - 6 mm² |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section multi-wired: | 0.2 - 6 mm² |
Colour: | Grey |
Width: | 13 mm |
Rated voltage: | 110 V |
Type of fuse insert: | Other |
Depth: | 56.5 mm |
Type of fuse holder: | Screwable |
Type of indication element for defect indication: | LED |
