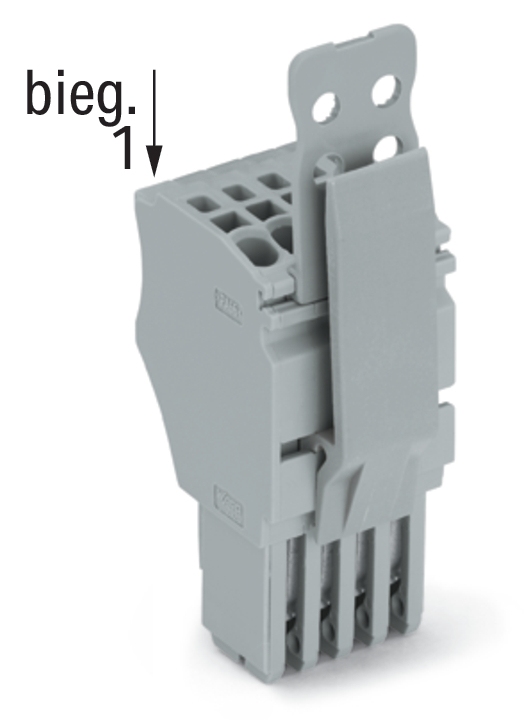

1-przewodowe gniazdo Push-in CAGE CLAMP®, szara 2020-102/142-000
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 2020-102/142-000 |
GTIN(EAN) | 4050821092537 |
Price unit | piece |
Catalog price | 17,69 zł (14,38 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
gniazdo 1-przewodowe; Push-in CAGE CLAMP®; 1,5 mm²; raster 3,5 mm; 2-bieg.; środkowy zaczep ryglujący; płytka odciążająca przewody; 1,50 mm²; szary
Additional features:
Information | Value |
---|---|
Net weight: | 5,45 g |
ETIM class: | Single- and multi-pole terminal strip |
Number of clamp positions per pole: | 1 |
Material insulation body: | Thermoplastic |
Operating temperature: | 105 - 105 °C |
Height: | 27.2 mm |
Connectable conductor cross section solid-core: | 0.5 - 1.5 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 0.75 mm² |
Halogen free: | yes |
Mounting method: | Other |
Rated current In: | 13.5 A |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | no |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.14 - 1.5 mm² |
Connectable conductor cross section multi-wired: | 0.14 - 1 mm² |
Number of poles: | 2 |
Transparent: | no |
Explosion-tested version 'Ex e': | no |
Colour: | Grey |
Width: | 7.7 mm |
Rated voltage: | 500 V |
Depth: | 56.5 mm |
