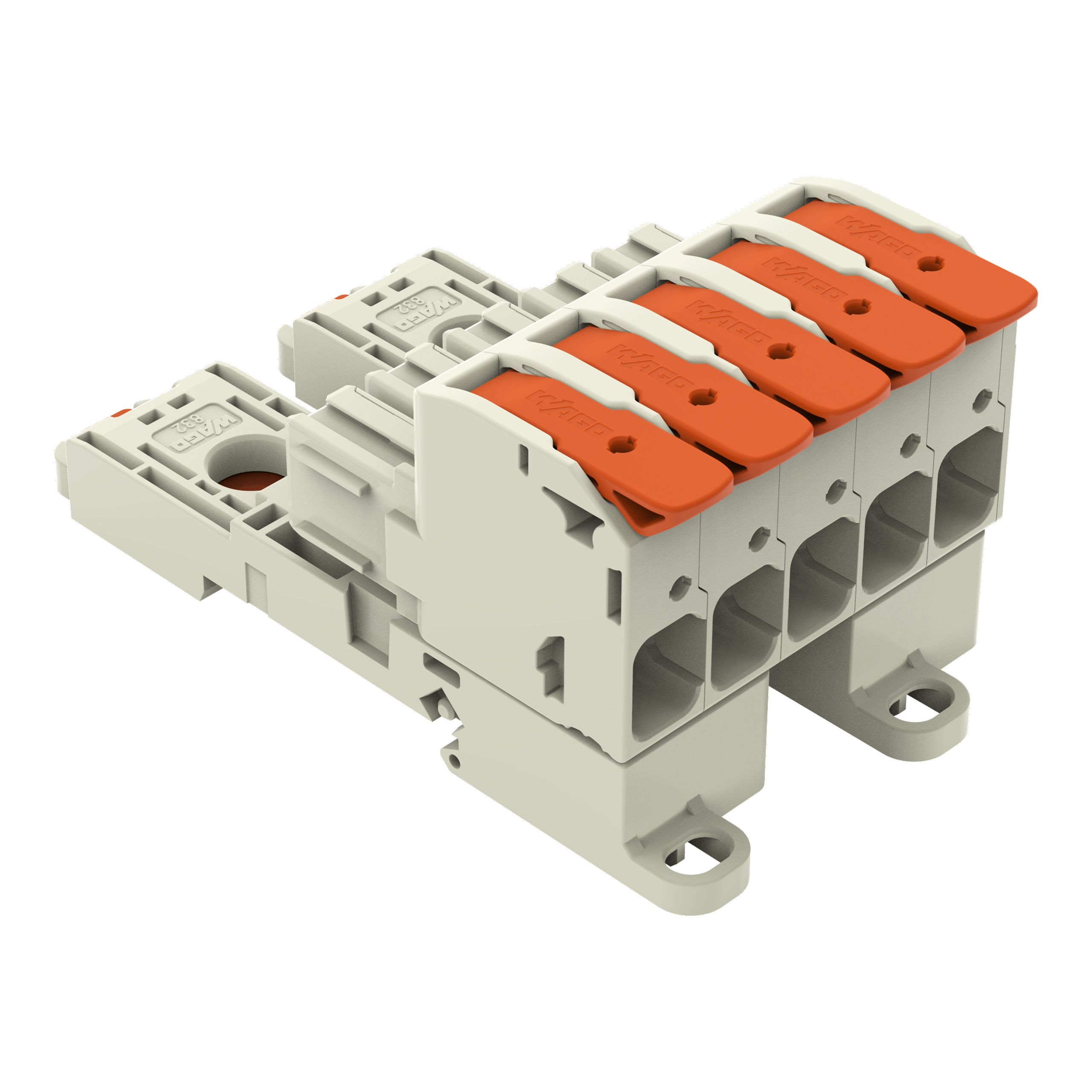

1-przewodowe gniazdo dźwignia Push-in CAGE CLAMP®, jasnoszary 832-1105/306-000
Information | Value |
---|---|
Supplier | WAGO ELWAG Sp. z o.o. |
Symbol | 832-1105/306-000 |
GTIN(EAN) | 4066966114553 |
Price unit | piece |
Catalog price | 121,13 zł (98,48 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
gniazdo 1-przewodowe; dźwignia; Push-in CAGE CLAMP®; 16 mm²; raster 10,16 mm; 5-bieg.; 100% ochrona przed błędnym połączeniem; TS 35/montaż na płycie; zestyki posrebrzane; 16,00 mm²; jasnoszary
Additional features:
Information | Value |
---|---|
Net weight: | 87,2 g |
ETIM class: | Single- and multi-pole terminal strip |
Number of clamp positions per pole: | 1 |
Material insulation body: | Thermoplastic |
Operating temperature: | -60 - 120 °C |
Height: | 42.5 mm |
Connectable conductor cross section solid-core: | 0.75 - 16 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.75 - 16 mm² |
Mounting method: | DIN rail (top hat rail) 35 mm |
Rated current In: | 76 A |
Inflammability class of insulation material according to with UL94: | V0 |
Closing plate required: | no |
Type of electrical connection 1: | Spring clamp connection |
Type of electrical connection 2: | Spring clamp connection |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.75 - 25 mm² |
Connectable conductor cross section multi-wired: | 0.75 - 25 mm² |
Number of poles: | 5 |
Transparent: | no |
Explosion-tested version 'Ex e': | no |
Colour: | Grey |
Width: | 10.16 mm |
Rated voltage: | 1000 V |
Depth: | 92.9 mm |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Firma Handlowo-Usługowa "LUX-SYSTEM" S.M. Stanek, J.E. Poniedziałek Sp.j.
Szaflary,
ul. Zakopiańska 18
Distance:
Firma Handlowa "ELEKTRET" Spółka komandytowa Jacek Bieda, Agata Mól
Limanowa,
ul. Tarnowska 9D
Distance:
Przedsiębiorstwo Wielobranżowe „ELEKTRO-HURT” Aleksander Winter Sp. z o.o.
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-04-04 16:42:54 |
Files to download: | |
External links: |
