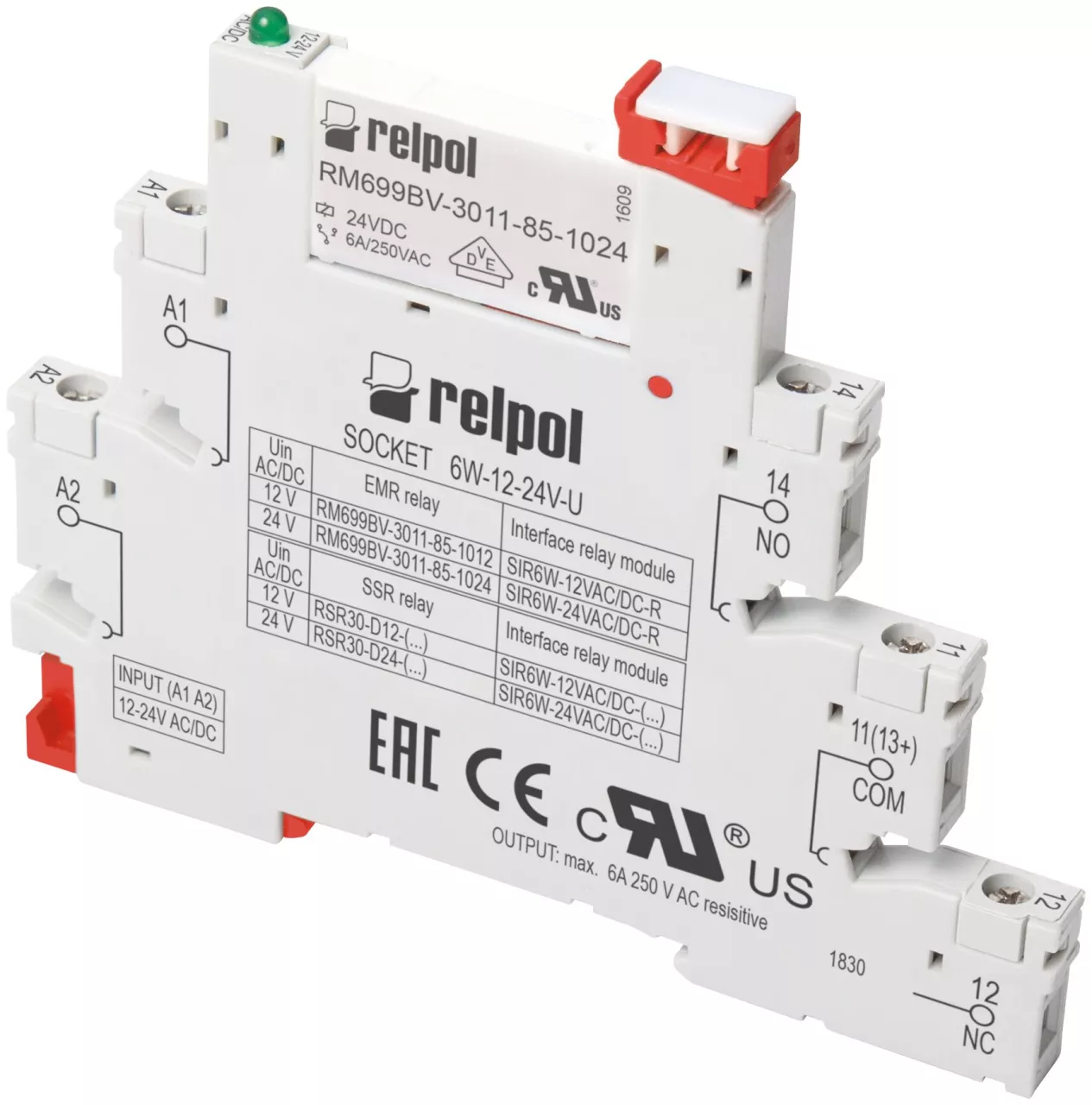

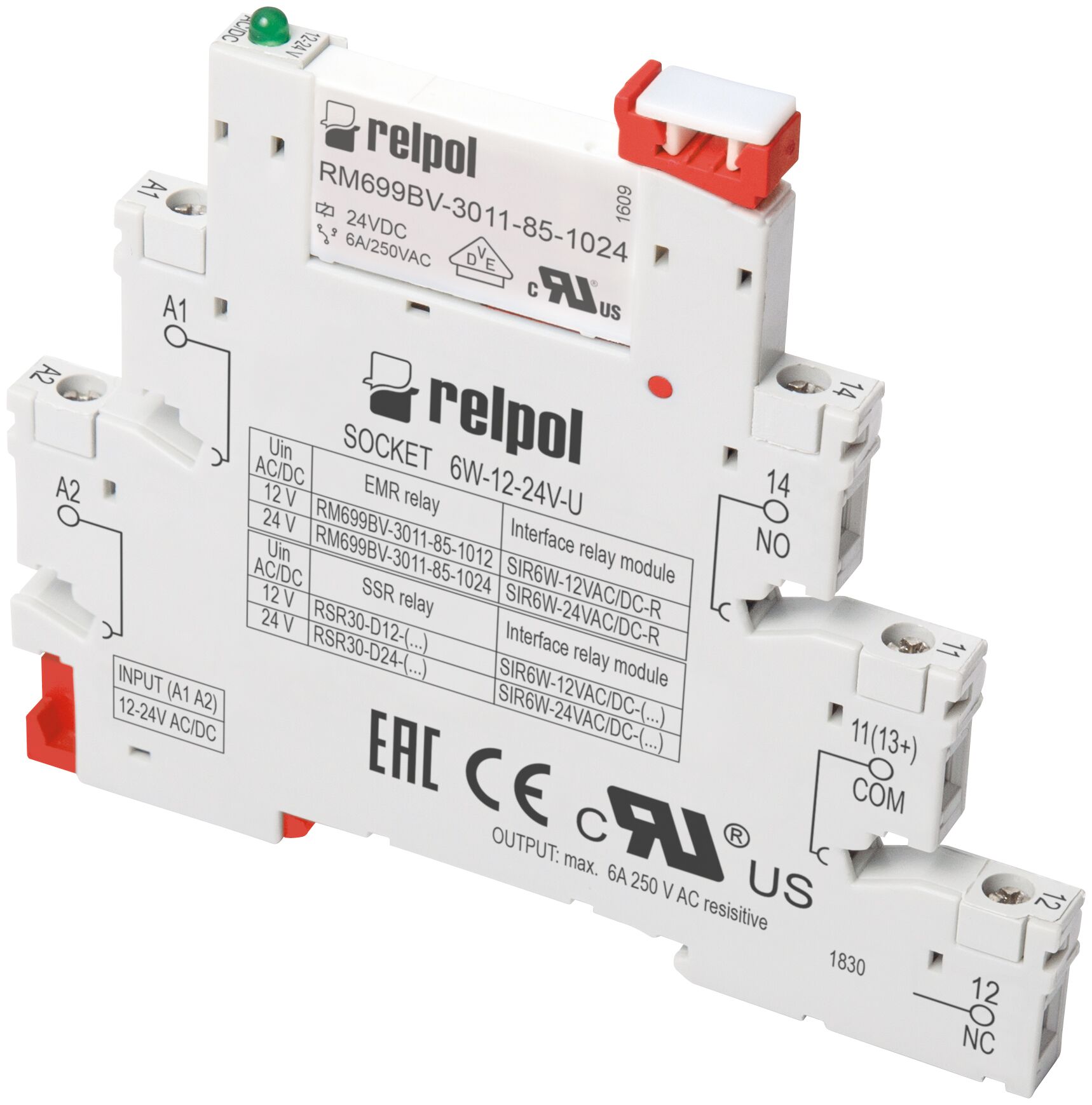

Przekaźnik Interfejsowy SIR6W-110-125VAC/DC-R01
Information | Value |
---|---|
Supplier | RELPOL S.A. |
Symbol | 865711 |
Price unit | piece |
Catalog price | 66,64 zł (54,18 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik interfejsowy wąskoprofilowy - zestaw gniazdo 6W-110-125V-U oraz przekaźnik RM699BV-3011-85-1060. Materiał stykowy AgSnO2/ Au złocenie tawrde. Szerokość 6,2 mm. Zaciski śrubowe. Wyjście (wymienne - przekaźnik RM699BV): styki 1P - zaciski: 14, 11 (13+), 12; AC1 - 6A/250 V; DC1 - 6A/30 V. Wejście - zaciski: A1 - A2 - dowolna biegunowość, napięcie zasilania Un - 110...125 V AC/DC. Wymiary: 88,6 x 6,2 x 76 mm. Montaż na szynie 35 mm. IP 20.
Additional features:
Information | Value |
---|---|
Net weight: | 30 g |
ETIM class: | Switching relay |
With detachable clamps: | no |
With LED indication: | no |
Rated control supply voltage AC 50 Hz: | 110 - 125 V |
Rated control supply voltage AC 60 Hz: | 110 - 125 V |
Rated control supply voltage DC: | 110 - 125 V |
Voltage type for actuating: | AC/DC |
Drive, polarization: | Polarity free |
Drive, switching attitude: | Mono stable |
Number of contacts as normally closed contact: | 0 |
Number of contacts as normally open contact: | 0 |
Number of contacts as change-over contact: | 1 |
Type of switch contact: | Single contact |
Material contact: | Silver tin oxide (AgSnO2) |
Material of contact surface: | Gold |
Nominal current: | 6 A |
Degree of protection (IP): | IP20 |
Width: | 6.2 mm |
Height: | 76 mm |
Depth: | 88.6 mm |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Firma Handlowo-Usługowa "LUX-SYSTEM" S.M. Stanek, J.E. Poniedziałek Sp.j.
Szaflary,
ul. Zakopiańska 18
Distance:
Firma Handlowa "ELEKTRET" Spółka komandytowa Jacek Bieda, Agata Mól
Limanowa,
ul. Tarnowska 9D
Distance:
Przedsiębiorstwo Wielobranżowe „ELEKTRO-HURT” Aleksander Winter Sp. z o.o.
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-07-19 00:03:13 |
Files to download: |
