Przekaźnik kolejowy interfejsowy PIR3T-024DC-M41G-V0
Information | Value |
---|---|
Supplier | RELPOL S.A. |
Symbol | 862560 |
GTIN(EAN) | 5900005224003 |
Price unit | piece |
Catalog price | 119,75 zł (97,36 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

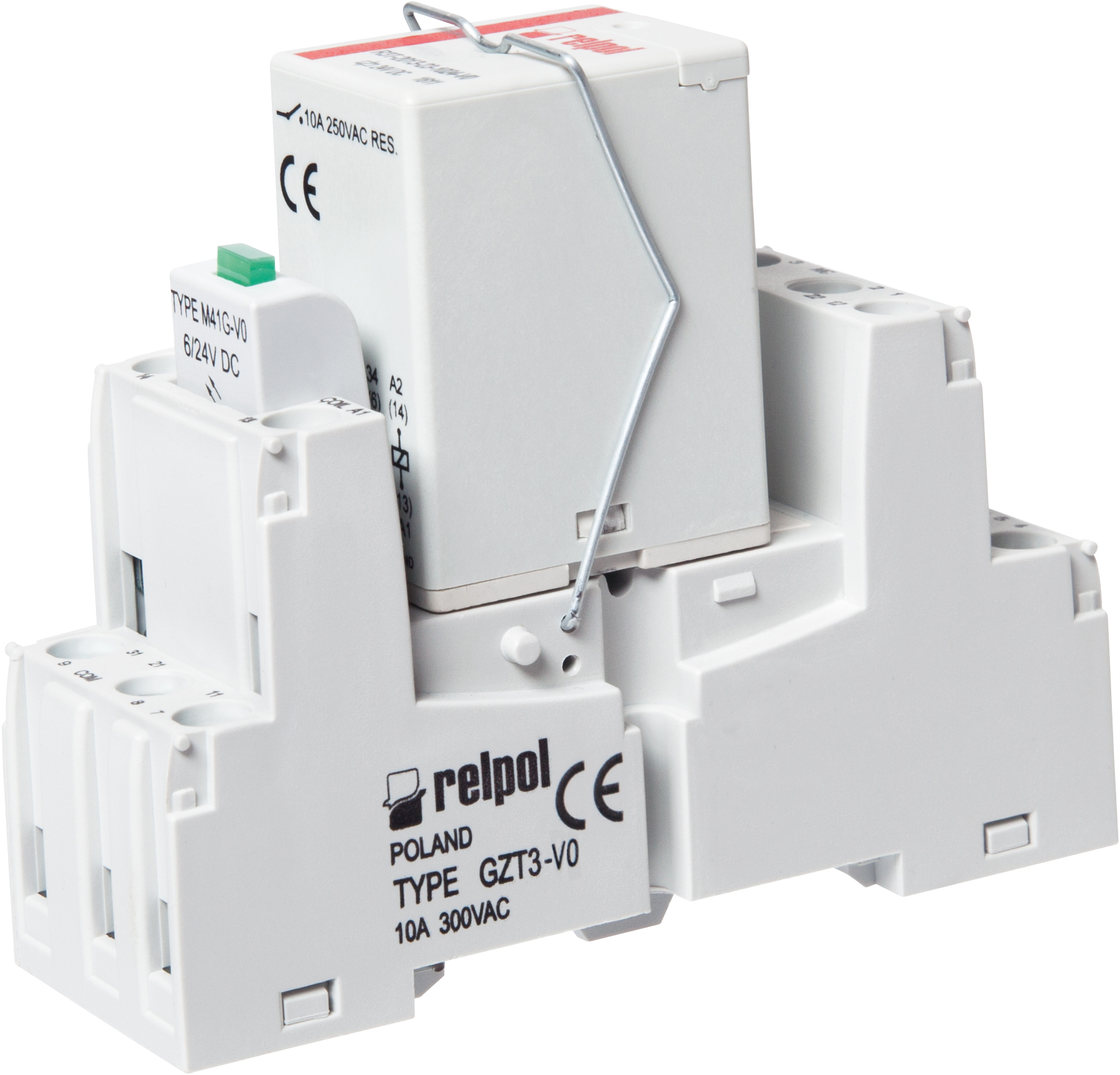

Przekaźnik interfejsowy do zastosowań kolejowych: 3P - trzy zestyki przełączne. Szerokość 27 mm. Wskaźnik LED zielony. Dioda D tłumiąca przepięcia. Zaciski śrubowe. Wyjście: styki 3P - zaciski: 11(7)-12(1)-14(4); 21(8)-22(2)-24(5); 31(9)-32(3)-34(6); AC1 - 10 A / 250 V; DC1 - 10 A / 24 V. Wejście - zaciski: (+)A1(13) - (-)A2(14), napięcie zasilania Un - 24 V DC. Wymiary: 76,3 x 27 x 65 mm. Montaż na szynie 35 mm lub na płycie montażowej dwoma wkrętami M3. Zestaw zawiera gniazdo GZT3-V0 - IP 20.
Additional features:
Information | Value |
---|---|
Net weight: | 87 g |
ETIM class: | Switching relay |
Type of electric connection: | Screw connection |
With detachable clamps: | no |
Nominal current: | 10 A |
Rated control supply voltage AC 50 Hz: | 0 - 0 V |
Rated control supply voltage AC 60 Hz: | 0 - 0 V |
Rated control supply voltage DC: | 24 - 24 V |
Voltage type for actuating: | DC |
Drive, polarization: | Polarity free |
Drive, switching attitude: | Mono stable |
Number of contacts as normally closed contact: | 0 |
Number of contacts as normally open contact: | 0 |
Number of contacts as change-over contact: | 3 |
With forced-guided contacts: | no |
Type of switch contact: | Single contact |
With LED indication: | no |
Material of contact surface: | Silver |
Material contact: | Nickel |
Degree of protection (IP): | IP20 |
Width: | 27 mm |
Height: | 65 mm |
Depth: | 76.3 mm |
