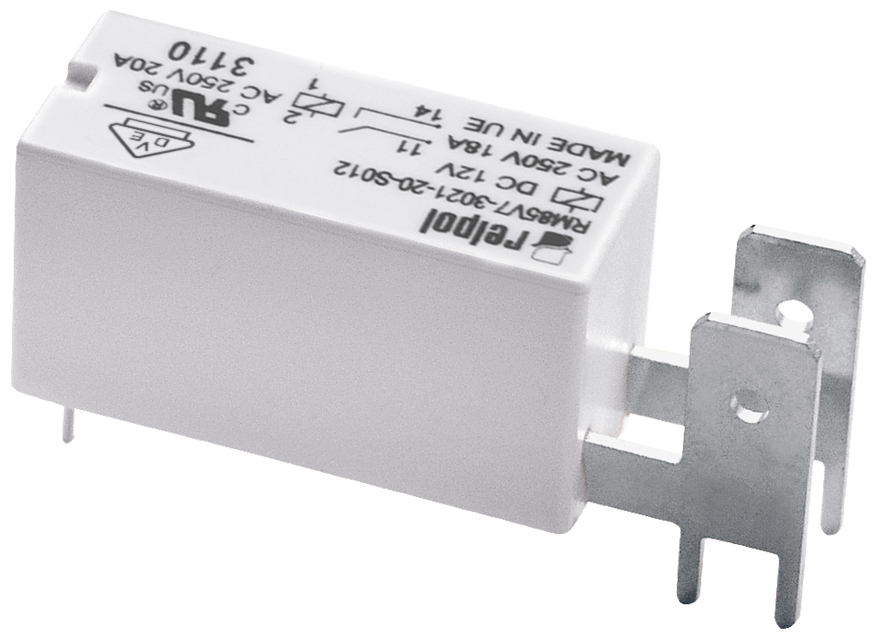

Przekaźnik miniaturowy RM85V7-3021-20-S024
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 855380 |
| Price unit | piece |
| Catalog price | 50,42 zł (40,99 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźniki RM85 faston, 1 zestyk zwierny, 16 A, do obwodów drukowanych i do połączeń wsuwkowych, wysokość 15,7 mm, fastony ułożone pionowo w rozstawie 7,5 mm, IP 40, styki AgSnO2 . Wejście / cewka: A1(1) - A2(2), napięcie zasilania Un - 24 V DC.Opcje montażu gniazd: EC50, GD50, PW80 - do druku; GZP80 (push-in), GZ80, GZT80, GZM80, GZS80, GZF80 - montaż na szynie 35 mm lub przykręcane do płyty jedną śrubą M3.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 16 g |
| ETIM class: | Switching relay |
| Type of electric connection: | Flat plug-in connection |
| With detachable clamps: | no |
| Nominal current: | 16 A |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 24 - 24 V |
| Voltage type for actuating: | DC |
| Drive, polarization: | Polarity free |
| Drive, switching attitude: | Mono stable |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 1 |
| Number of contacts as change-over contact: | 0 |
| With forced-guided contacts: | no |
| Type of switch contact: | Single contact |
| Complete with socket: | no |
| With LED indication: | no |
| Material of contact surface: | Silver |
| Degree of protection (IP): | IP40 |
| Width: | 12.7 mm |
| Height: | 15.7 mm |
| Depth: | 40.5 mm |
| Material contact: | Silver tin oxide (AgSnO2) |
