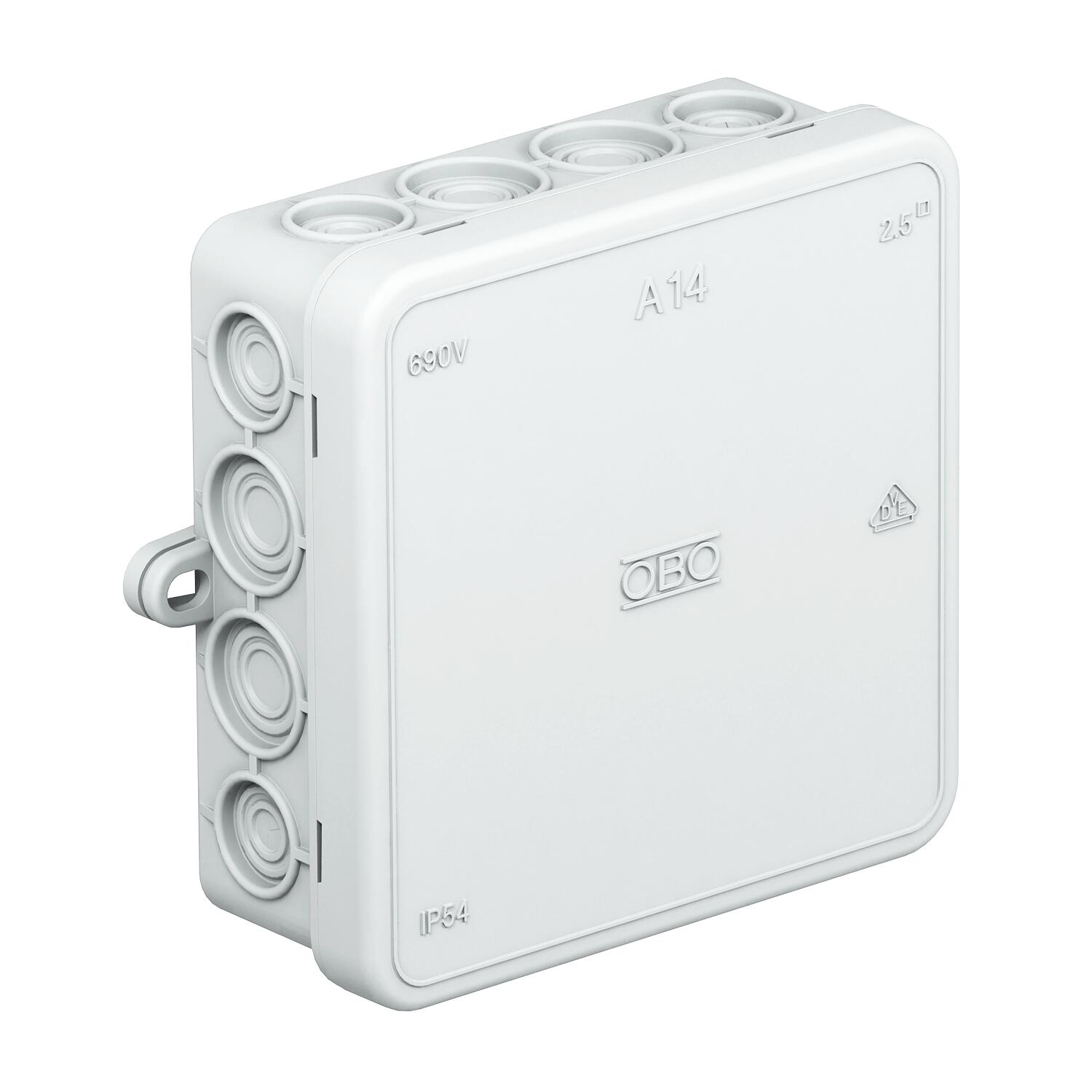

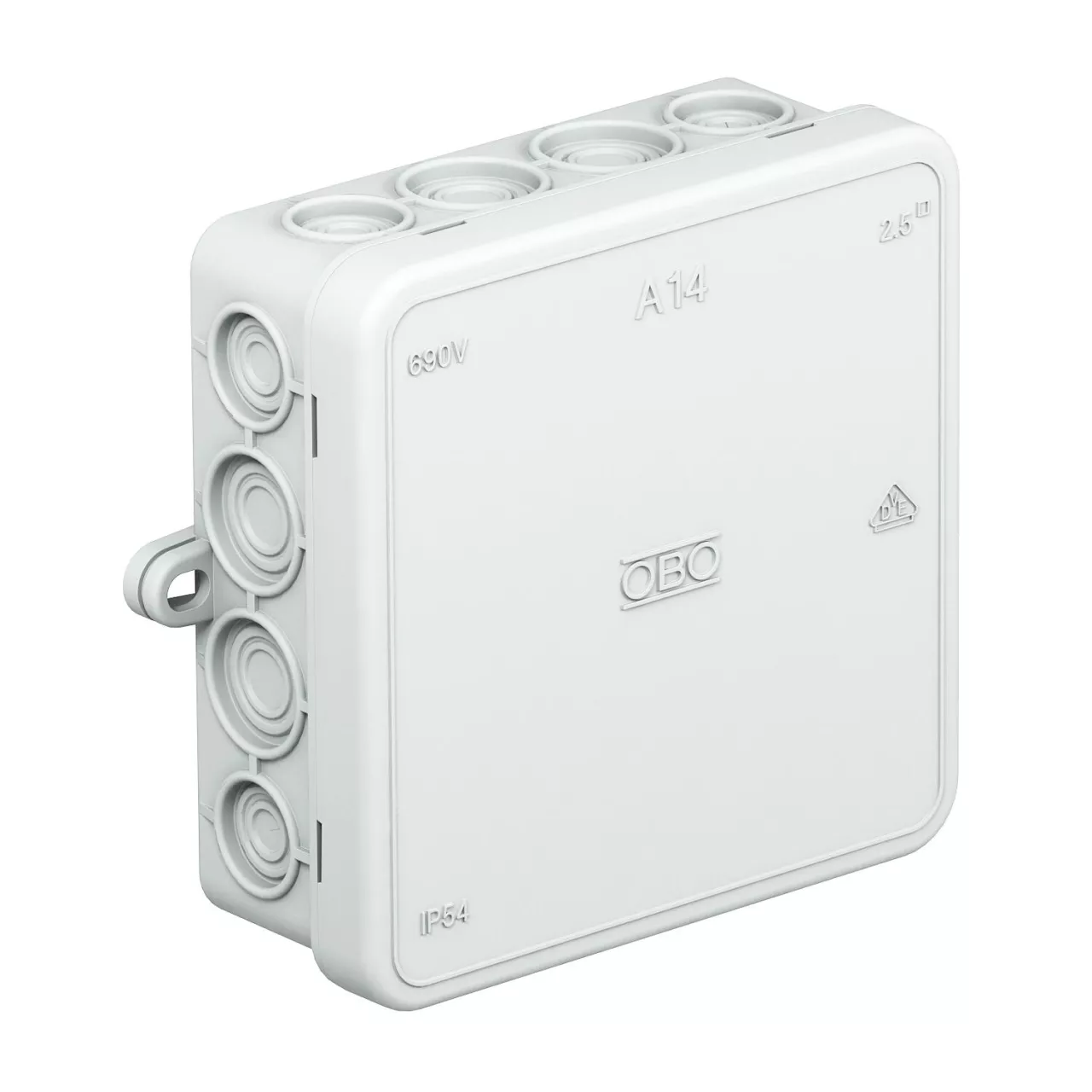

A 14 Puszka odgałęźna
| Information | Value |
|---|---|
| Supplier | OBO Bettermann Polska Sp. z o.o. |
| Symbol | 2000378 |
| GTIN(EAN) | 4012195917090 |
| Price unit | piece |
| Catalog price | 11,64 zł (9,46 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Stopień ochrony IP55, napięcie znamionowe 400 V, przekrój znamionowy 2,5 ÷ mm², 8 wejść przewodów o średnicy 5-14 mm
8 wejść przewodów o średnicy 5-11 mm.
Osłona zacisków.

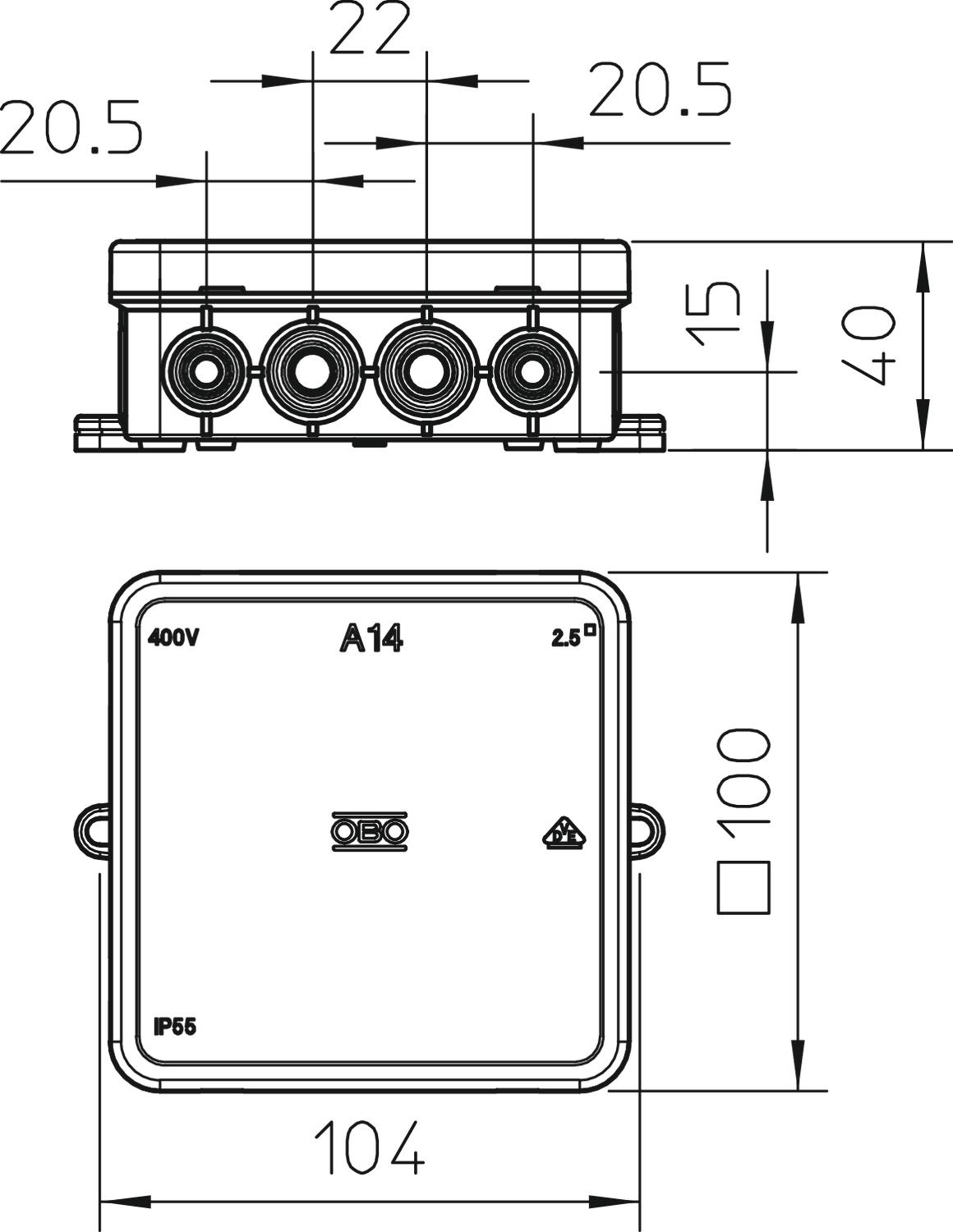

Wymiary: 100 x 100 x 40 mm
Wymiary wewnętrzne: 90 x 90 x 35 mm
1 narzędzie tnące na 10 puszek
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Box/housing for surface mounting on the wall/ceiling |
| Max. conductor cross section: | 2,5 mm² |
| Equipped with: | None |
| Shape: | Square |
| Mounting method: | Wall-/ceiling mounting |
| Inlet from the rear: | no |
| Length: | 100 mm |
| Width: | 100 mm |
| Depth: | 40 mm |
| Tackable: | yes |
| Number of inlets: | 16 |
| Type of housing feed-through: | Preembossing |
| Material: | Plastic |
| Halogen free: | yes |
| Colour: | Grey |
| Degree of protection (IP): | IP55 |
| Cover attachment: | Snapped on |
| Rated insulation voltage Ui: | 690 V |
| Circuit integrity: | None |
| With screening: | no |
| Weatherproof: | no |
| Operating temperature: | -5 - 45 °C |
| For Ex-zone gas: | None |
| For Ex-Zone dust: | None |
