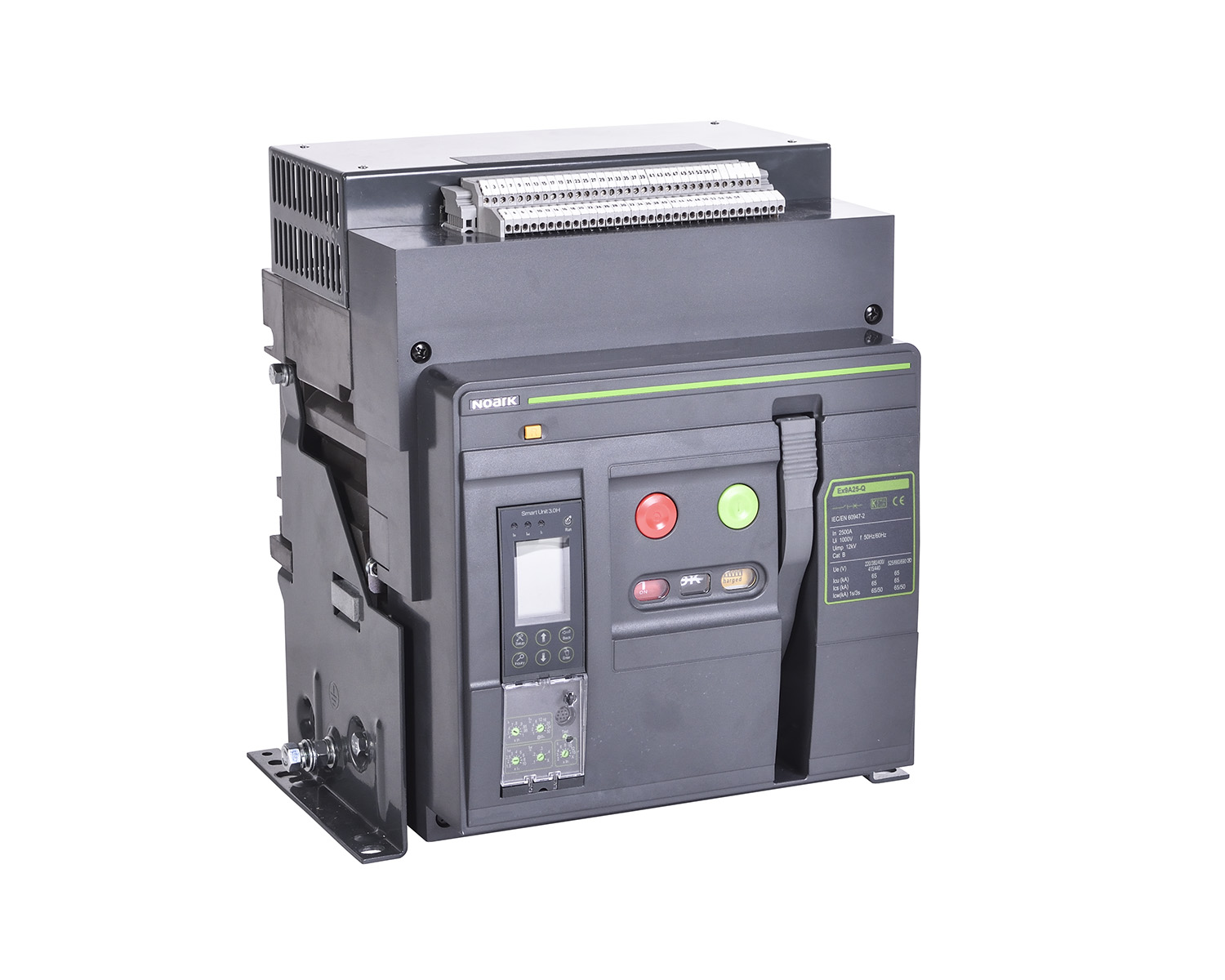

Ex9A25R 4P F 1000(N) EU Wyłącznik powietrzny, wielkość A25, Icu=85kA, In=1000A, 4-bieg., stacjonarny
Information | Value |
---|---|
Supplier | NOARK Electric Sp. z o.o. |
Symbol | 112199 |
GTIN(EAN) | 8592765121998 |
Price unit | piece |
Catalog price | 41 836,22 zł (34 013,19 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Are you reals ? !
Dokonaj zakupów produktów NOARK na kwotę powyżej 1500 zł brutto, a w prezencie otrzymasz Uchwyt Selfie marki VÖGEL BSF305K !
-
LETNIE ORZEŹWIENIE
Przy zakupach produktów NOARK w ElektRa Hurtownia Elektrotechniczna na kwotę 5000 zł brutto otrzymasz prezent Saturator Brita SodaOne
Additional features:
Information | Value |
---|---|
Net weight: | 52 kg |
ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
Rated permanent current Iu: | 1000 A |
With integrated under voltage release: | no |
Number of poles: | 4 |
Overload release current setting: | 400 - 1000 A |
Number of auxiliary contacts as change-over contact: | 6 |
Power loss: | 155 W |
Degree of protection (IP): | IP40 |
Position of connection for main current circuit: | Back side |
Motor drive integrated: | no |
Type of electrical connection of main circuit: | Other |
Type of control element: | Push button |
With switched-off indicator: | yes |
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 85 kA |
Adjustment range undelayed short-circuit release: | 2000 - 15000 A |
Suitable for DIN rail (top hat rail) mounting: | no |
Integrated earth fault protection: | no |
Motor drive optional: | yes |
Device construction: | Built-in device fixed built-in technique |
DIN rail (top hat rail) mounting optional: | no |
Complete device with protection unit: | no |
