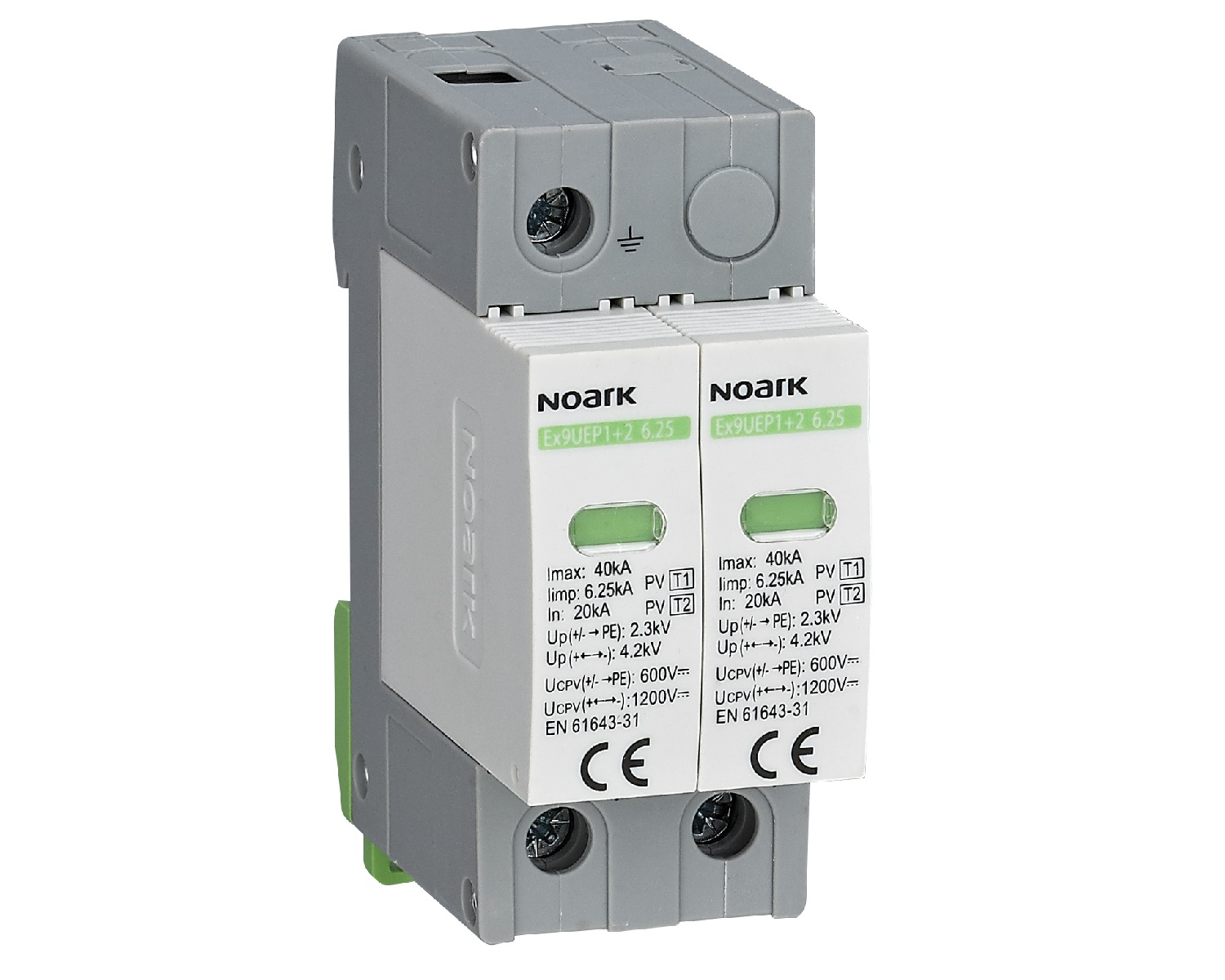

Ex9UEP1+2 6.25 2P 500 EU Ogr. przepięć SPD Ex9UEP, typ I+II, 500 V DC, 2 moduły szer., dla nieuziemionych systemów PV
| Information | Value |
|---|---|
| Supplier | NOARK Electric Sp. z o.o. |
| Symbol | 111745 |
| GTIN(EAN) | 8592765117458 |
| Price unit | piece |
| Catalog price | 503,81 zł (409,60 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
Are you reals ? !
Dokonaj zakupów produktów NOARK na kwotę powyżej 1500 zł brutto, a w prezencie otrzymasz Uchwyt Selfie marki VÖGEL BSF305K !
-
LETNIE ORZEŹWIENIE
Przy zakupach produktów NOARK w ElektRa Hurtownia Elektrotechniczna na kwotę 5000 zł brutto otrzymasz prezent Saturator Brita SodaOne
Additional features:
| Information | Value |
|---|---|
| Net weight: | 230 g |
| ETIM class: | Combined arrester for power supply systems |
| System configuration DC: | yes |
| System configuration IT: | no |
| System configuration TN: | no |
| System configuration TN-C: | no |
| System configuration TN-C-S: | no |
| System configuration TN-S: | no |
| System configuration TT: | no |
| System configuration other: | yes |
| Number of poles: | 2 |
| Lightning impulse current (10/350 µs): | 6.25 kA |
| Max. continuous voltage DC: | 500 V |
| Nominal voltage DC: | 500 V |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Construction size: | 2 modular spacing |
| Max. conductor cross section solid (solid, stranded): | 25 mm² |
| Max. conductor cross section flexible (fine-strand): | 25 mm² |
| Remote signalling: | no |
| Signalling at the device: | Optical |
| Test class: | Type 1 + 2 |
| Integrated backup fuse: | no |
| Energy-coordinated protection effect with regard to the terminal equipment: | no |
| Degree of protection (IP): | IP20 |
