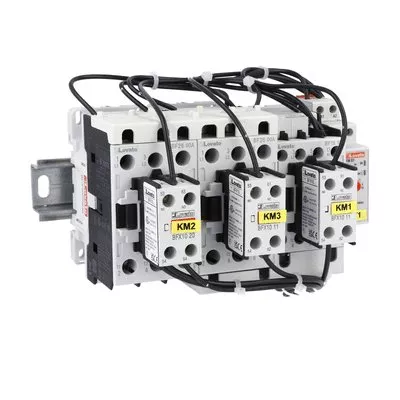

Rozrusznik gwiazda-trójkąt (22kW), złożony, bez obudowy, czas rozruchu do 12 sekund i maksymalnie 30 rozruchów na godzinę, maks. prąd roboczy 43A. Napięcie cewki 230VAC 50/60Hz
Information | Value |
---|---|
Supplier | LOVATO Electric Sp. z o.o. |
Symbol | BFA02670230 |
GTIN(EAN) | 8013975155431 |
Price unit | piece |
Catalog price | 2 258,28 zł (1 836,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 1,8 kg |
ETIM class: | Motor starter/motor starter combination |
Degree of protection (NEMA): | Other |
Type of motor starter: | Star-delta starter |
Voltage type for actuating: | AC |
Type of electrical connection for auxiliary- and control current circuit: | Screw connection |
Type of electrical connection of main circuit: | Screw connection |
Degree of protection (IP): | IP20 |
Rated control supply voltage AC 60 Hz: | 230 - 230 V |
Rated control supply voltage AC 50 Hz: | 230 - 230 V |
Supporting protocol for SafetyBUS p: | no |
Supporting protocol for PROFIsafe: | no |
Supporting protocol for PROFINET IO: | no |
Supporting protocol for PROFINET CBA: | no |
Supporting protocol for Foundation Fieldbus: | no |
Supporting protocol for EtherNet/IP: | no |
Supporting protocol for DeviceNet Safety: | no |
Supporting protocol for AS-Interface Safety at Work: | no |
With fuse: | no |
With short-circuit release: | no |
Supporting protocol for INTERBUS-Safety: | no |
Supporting protocol for SERCOS: | no |
Rail mounting possible: | yes |
External reset possible: | no |
Supporting protocol for other bus systems: | no |
Supporting protocol for SUCONET: | no |
Supporting protocol for DeviceNet: | no |
Supporting protocol for Data-Highway: | no |
Supporting protocol for Modbus: | no |
Supporting protocol for INTERBUS: | no |
Supporting protocol for CAN: | no |
Supporting protocol for PROFIBUS: | no |
Supporting protocol for ASI: | no |
Supporting protocol for TCP/IP: | no |
Supporting protocol for LON: | no |
Suitable for emergency stop: | no |
With transformer: | no |
Rated conditional short-circuit current, type 2, 230 V: | 50000 A |
Rated conditional short-circuit current, type 2, 400 V: | 50000 A |
Ambient temperature, upper operating limit: | 70 °C |
Rated operation current at AC-3, 400 V: | 43 A |
Rated operation power at AC-3, 230 V, 3-phase: | 11 kW |
Number of indicator lights: | 0 |
Rated operation current Ie: | 43 A |
Rated operation power at AC-3, 400 V: | 22 kW |
Depth: | 130 mm |
Height: | 90 mm |
Width: | 198 mm |
