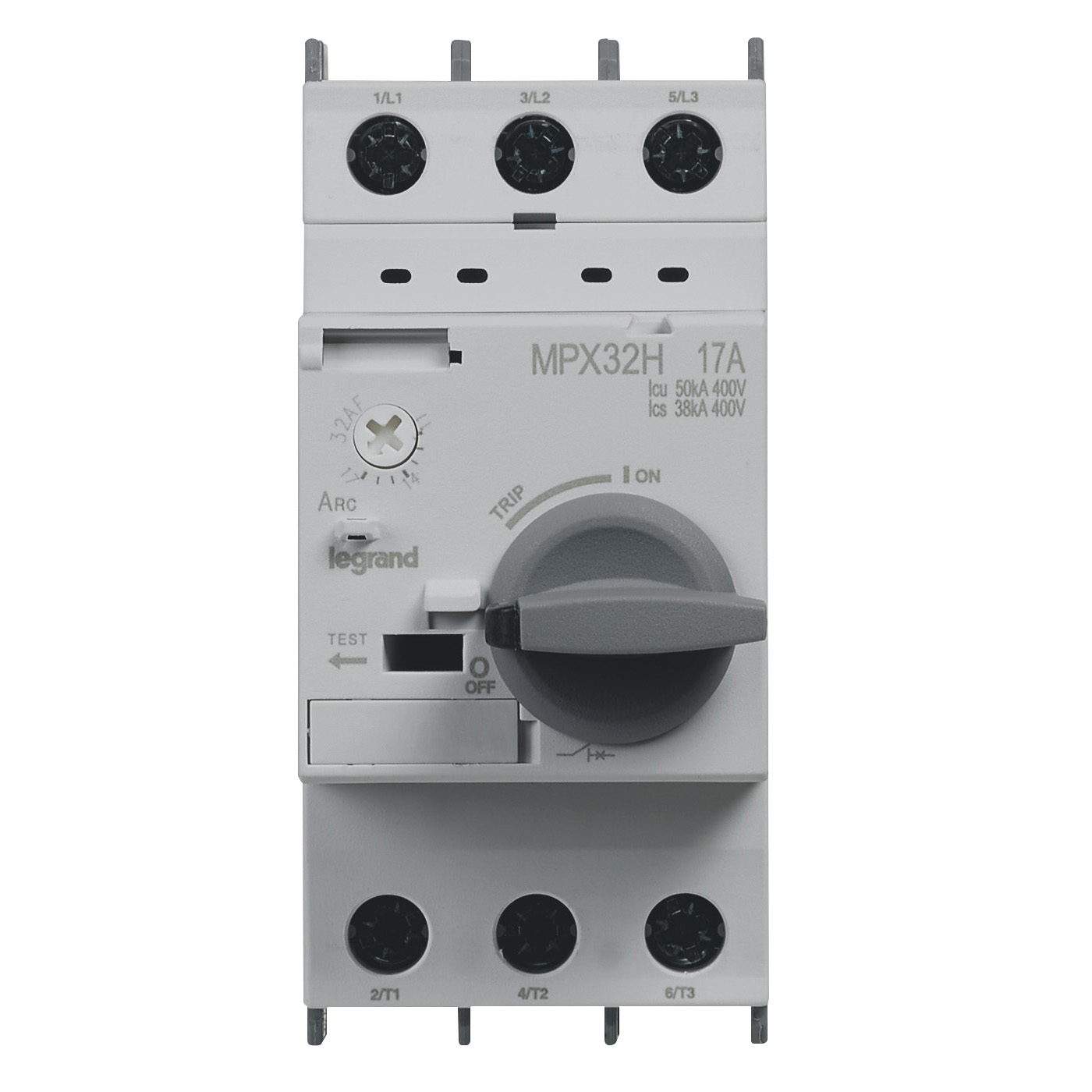

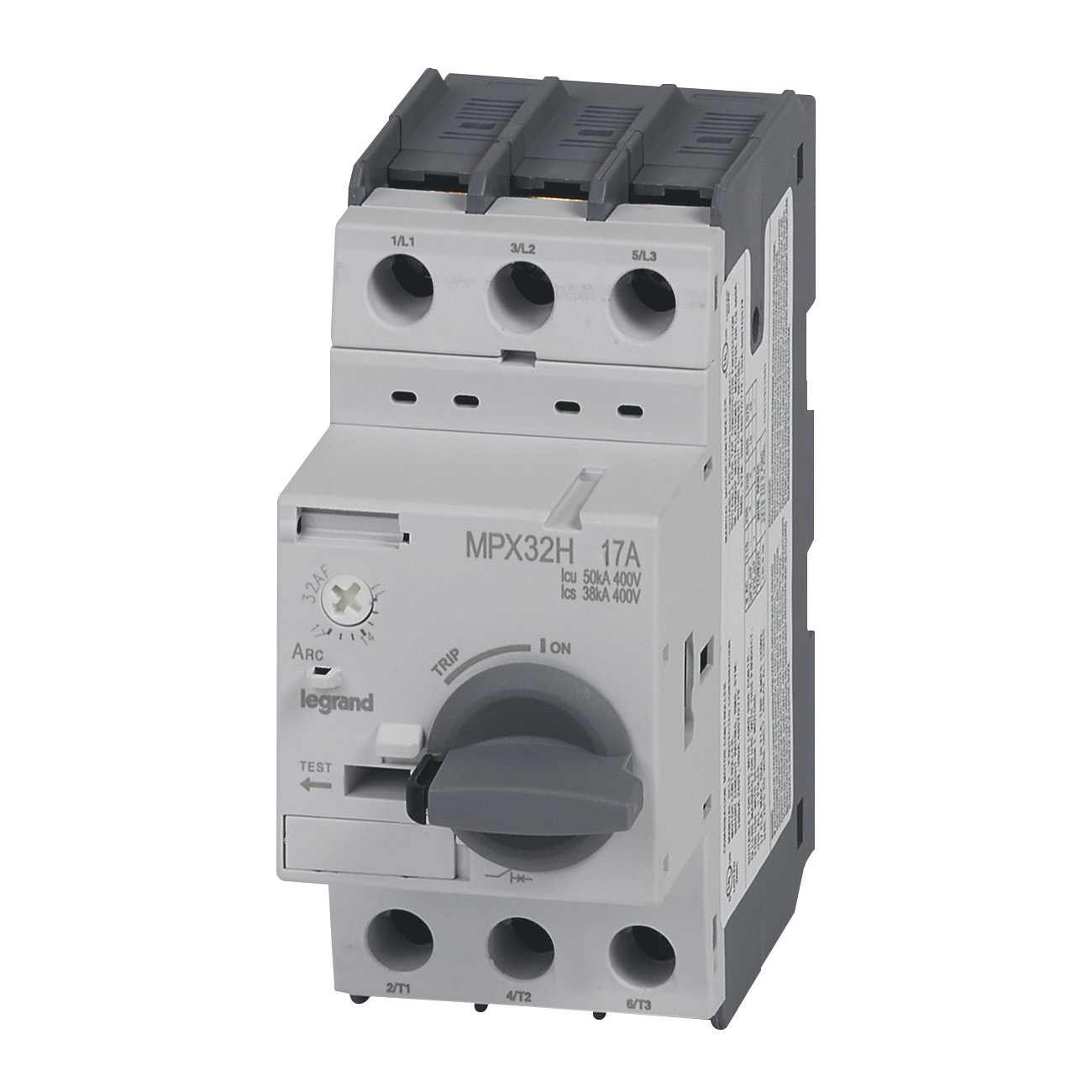

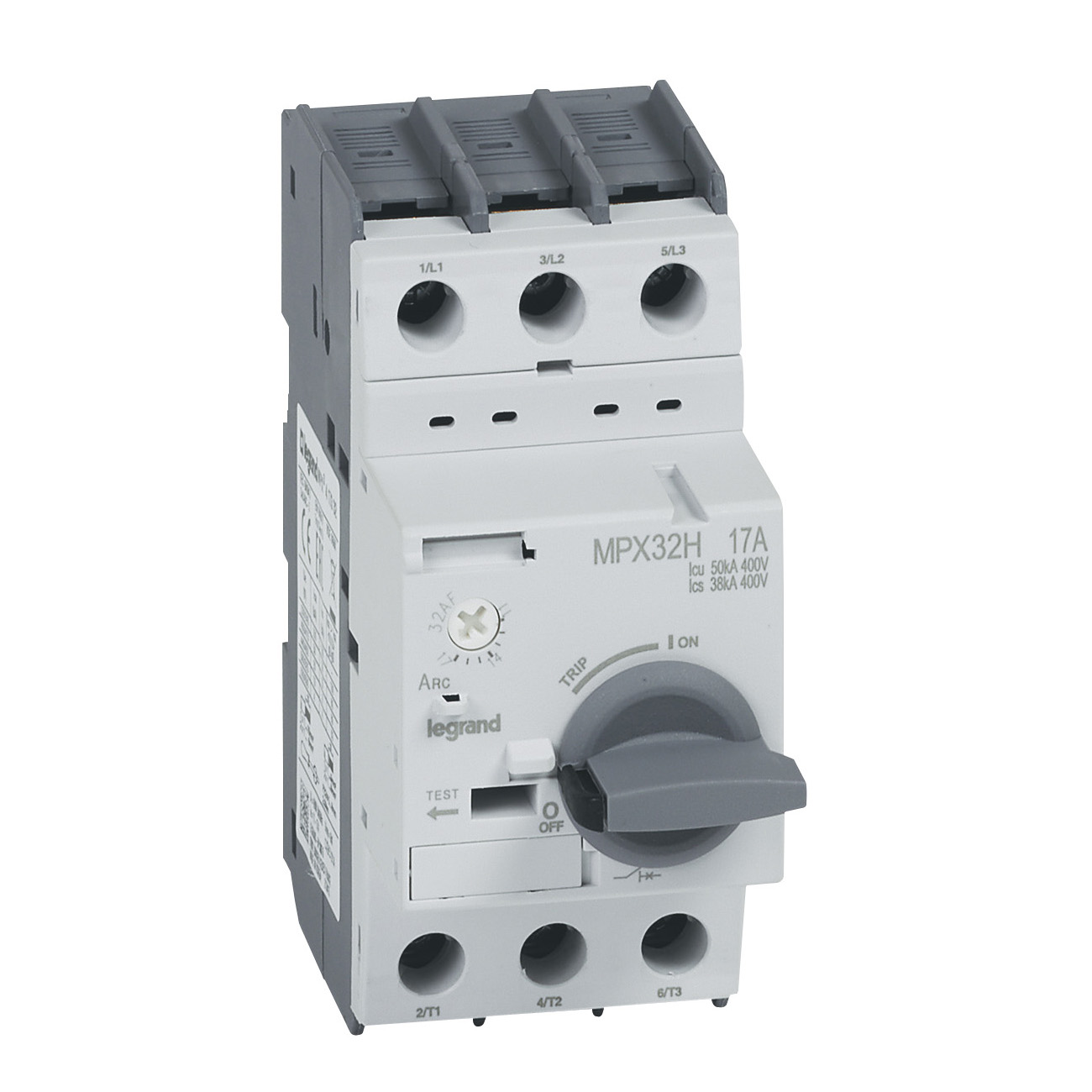

WYŁĄCZNIK SILNIKOWY MPX3 32H 11-17A WYSOKA ZDOLNOŚĆ ZWARCIOWA, Legrand
Information | Value |
---|---|
Supplier | Legrand Polska Sp. z o.o. |
Symbol | 417332 |
GTIN(EAN) | 3414970395597 |
Price unit | piece |
Catalog price | 493,03 zł (400,84 zł + 23% VAT) |
Sale price | from 136,70 zł (111,14 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
ETIM class: | Motor protection circuit-breaker |
Switch off technique: | Thermomagnetic |
Height: | 94 mm |
Type of control element: | Turn button |
With thermal overload protection: | yes |
Degree of protection (IP): | IP20 |
Rated operation power at AC-3, 230 V: | 3.7 kW |
With integrated auxiliary switch: | yes |
Rated operation power at AC-3, 400 V: | 7.5 kW |
Phase failure sensitive: | no |
Rated permanent current Iu: | 17 A |
Rated short-circuit breaking capacity lcu at 400 V, AC: | 50 kA |
Adjustment range undelayed short-circuit release: | 221 - 221 A |
With integrated under voltage release: | yes |
Device construction: | Built-in device fixed built-in technique |
Number of poles: | 3 |
Rated operating voltage: | 220 - 690 V |
Depth: | 99.6 mm |
Overload release current setting: | 11 - 17 A |
Type of electrical connection of main circuit: | Frame clamp |
Width: | 45 mm |
