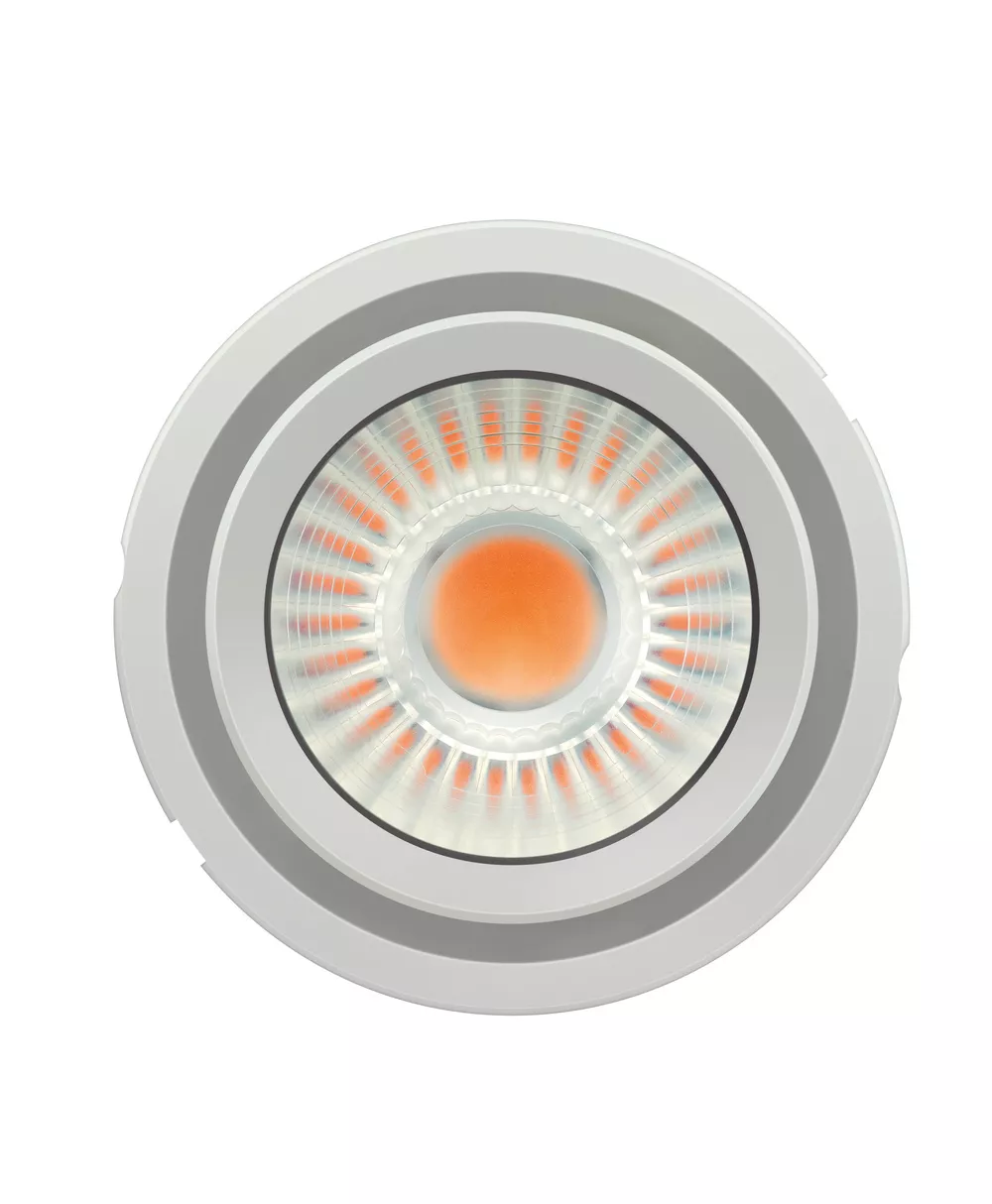

Moduł PANEL-CN111-COB-2800-840-40D-G2 FS1 OSRAM
Information | Value |
---|---|
Supplier | LEDVANCE Sp z o.o |
Symbol | 4052899621008 |
GTIN(EAN) | 4052899621008 |
Price unit | piece |
Catalog price | 273,06 zł (222,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Moduł LED z wbudowanym układem optycznym i radiatorem. Cechy produktu: <li>Color consistency < 2 SDCM</li><li>TM30 compliant</li><li>High flux output up to 4900 lm</li><li>Beam angle: 15°, 24°, 40°, 60°</li><li>Type of protection: IP20</li>. Zalety produktu: <li>Compact form factor compatible with conventional AR111 lamps</li><li>Precise optical control and free from multi-shadow issue</li><li>Dual mode options in High-Output (HO) and High-Efficacy (HE)</li>. Obszary zastosowań: <li>Retail, shop, restaurant, hospitality</li><li>High-end residential</li><li>Suitable for indoor applications</li><li>Connecting multiple modules in parallel on one LED driver is not permitted</li><li>Connecting multiple modules in series on one LED driver is not recommended</li><li>Do not use in sealed fixtures</li><li>Avoid covering the lens with dust or any object</li>.
Additional features:
Information | Value |
---|---|
Net weight: | 385 g |
Country of origin | Chiny |
ETIM class: | LED-module |
Lamp power: | 25.30 - 25.30 W |
Voltage type: | DC |
Suitable for constant current: | yes |
Suitable for constant voltage: | no |
External driver required: | yes |
Lamp voltage: | 36.2 - 36.2 V |
Number of LEDs: | 1 |
Shape: | Round |
Colour: | White |
Colour of light according to EN 12464-1: | Neutral white 3300-5300 K |
Flexible: | no |
Colour temperature: | 3900 K |
Luminous intensity: | 6495 cd |
Luminous flux: | 2650 - 2650 lm |
Beam angle: | 40.00 - 40.00 ° |
Colour consistency (McAdam ellipse): | SDCM2 |
Suitable for general lighting: | yes |
Suitable for traffic lights: | no |
Suitable for variable road signs: | no |
Suitable for rail traffic: | no |
Suitable for matrix information boards: | no |

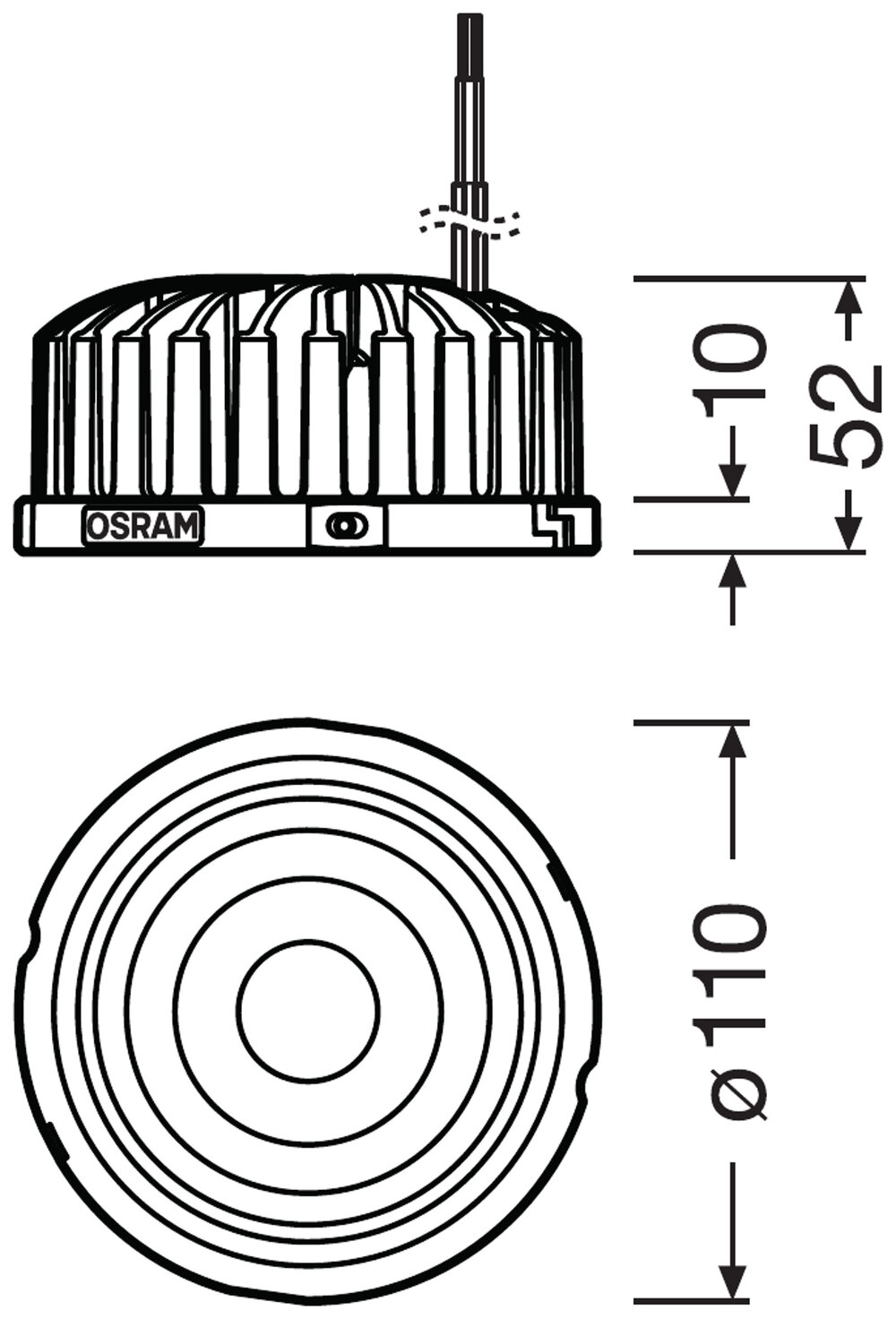

Length: | 110.00 mm |
Width: | 110.00 mm |
Height: | 52.00 mm |
Diameter: | 110.0 mm |
Degree of protection (IP): | IP20 |
Average nominal lifespan: | 50000 h |
Photobiological safety according to EN 62471: | RG1 |
Compatible with Apple HomeKit: | no |
Compatible with Google Assistant: | no |
Compatible with Amazon Alexa: | no |
IFTTT support available: | yes |
Energy efficiency class according to EU regulation 2019/2015: | E |
