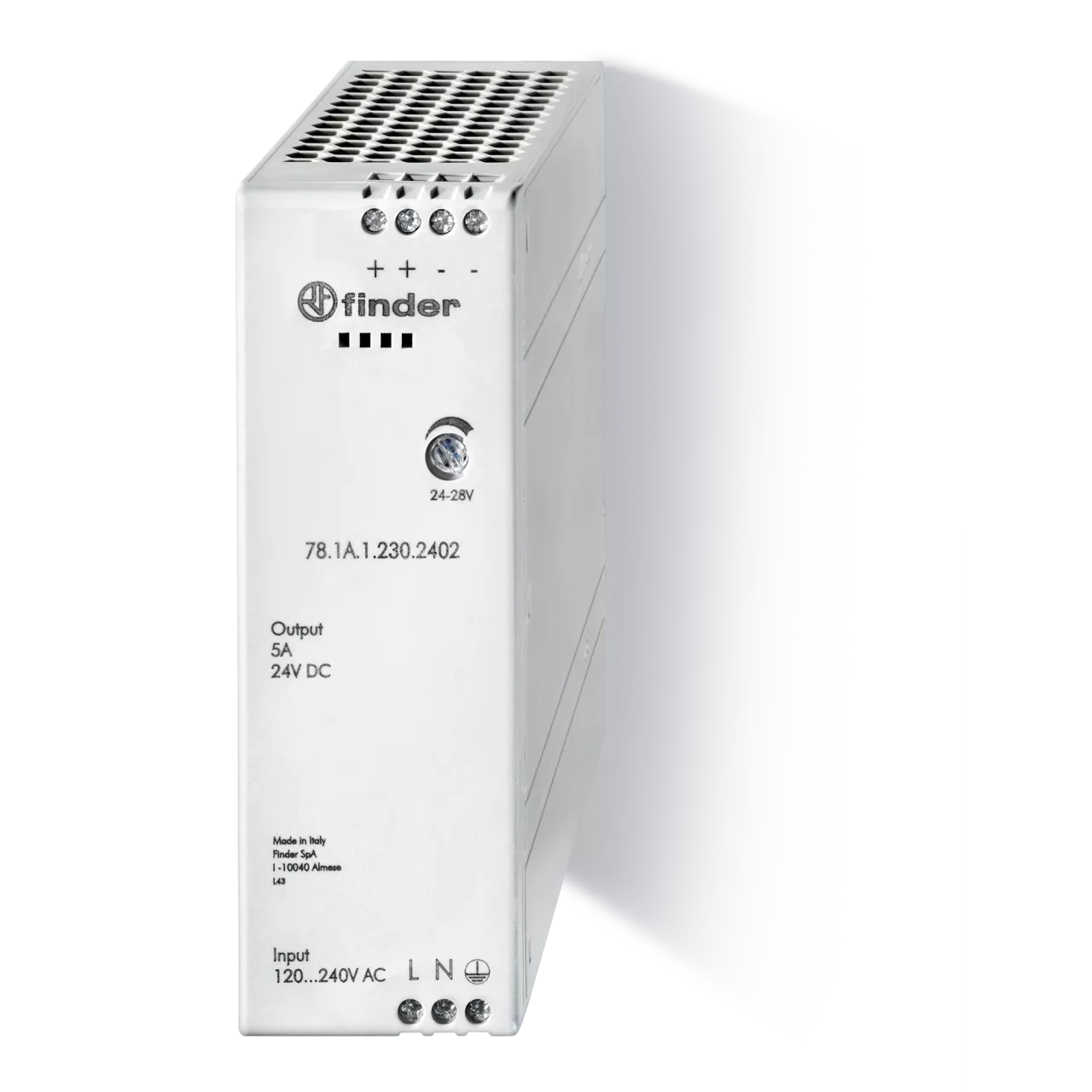

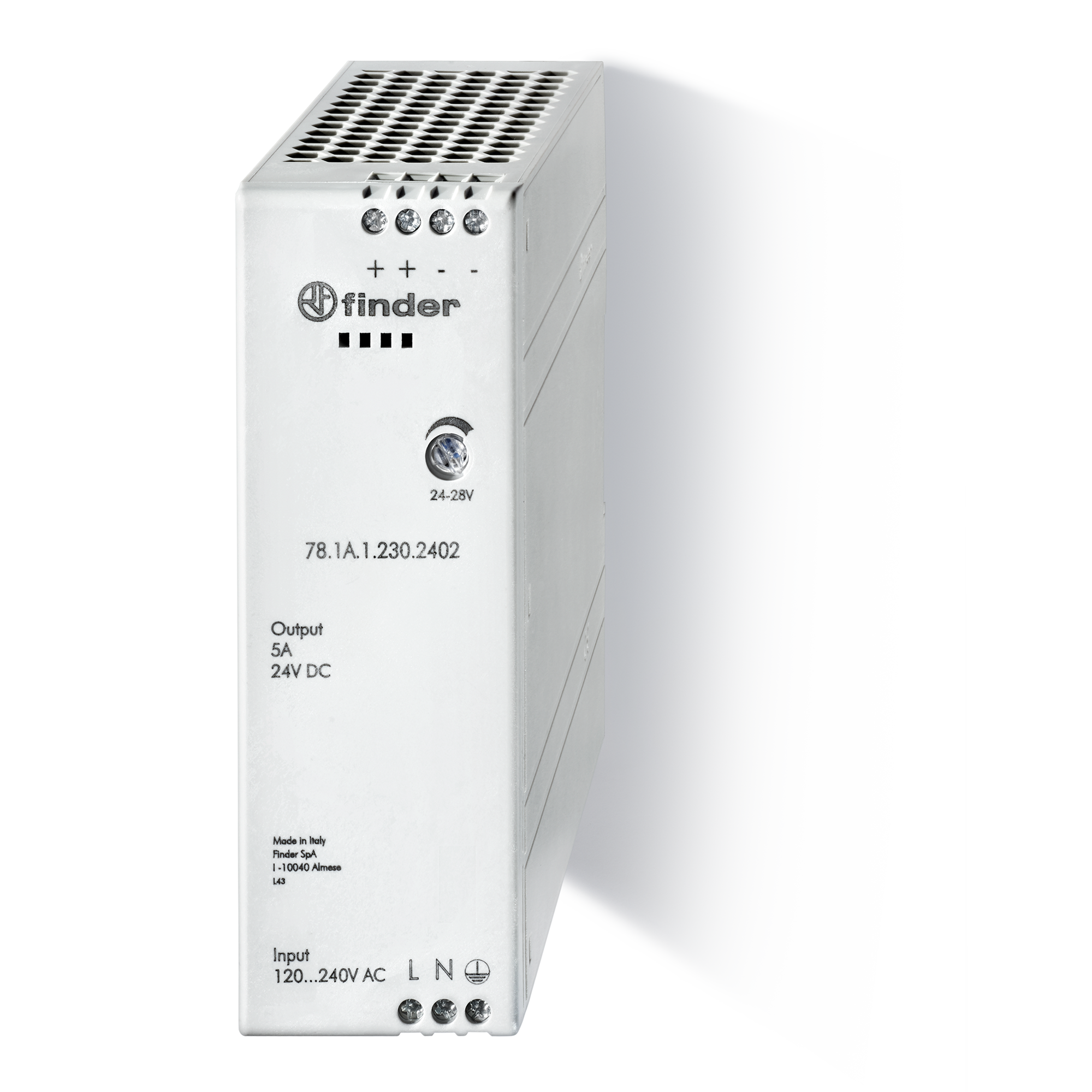

Zasilacz impulsowy 24V DC, 120W, 78.1A.1.230.2402
Information | Value |
---|---|
Supplier | FINDER Polska Sp. z o.o. |
Symbol | 781A12302402 |
GTIN(EAN) | 8012823429441 |
Price unit | piece |
Catalog price | 817,78 zł (664,86 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 322 g |
ETIM class: | DC-power supply |
Power consumption: | 195 VA |
Width: | 42.5 mm |
Height: | 126 mm |
Max. output current 1: | 5 A |
Nominal value output voltage 1: | 24 V |
Nominal value output current 1: | 4.5 A |
Power output: | 120 W |
Depth: | 125 mm |
Modular version: | yes |
Suitable for safety functions: | no |
Stabilized: | yes |
Output voltage stabilized: | yes |
Wall mounting possible: | no |
Rail mounting possible: | yes |
Short-circuit-proof: | yes |
Secondary voltage adjustable: | no |
1st secondary output voltage: | 24 - 28 V |
Rated supply voltage AC 50 Hz: | 120 - 240 V |
Rated supply voltage AC 60 Hz: | 120 - 240 V |
Degree of protection (IP): | IP20 |
Type of electric connection: | Screw connection |
SIL according to IEC 61508: | None |
Performance level according to EN ISO 13849-1: | None |
Voltage type (supply voltage): | AC |
