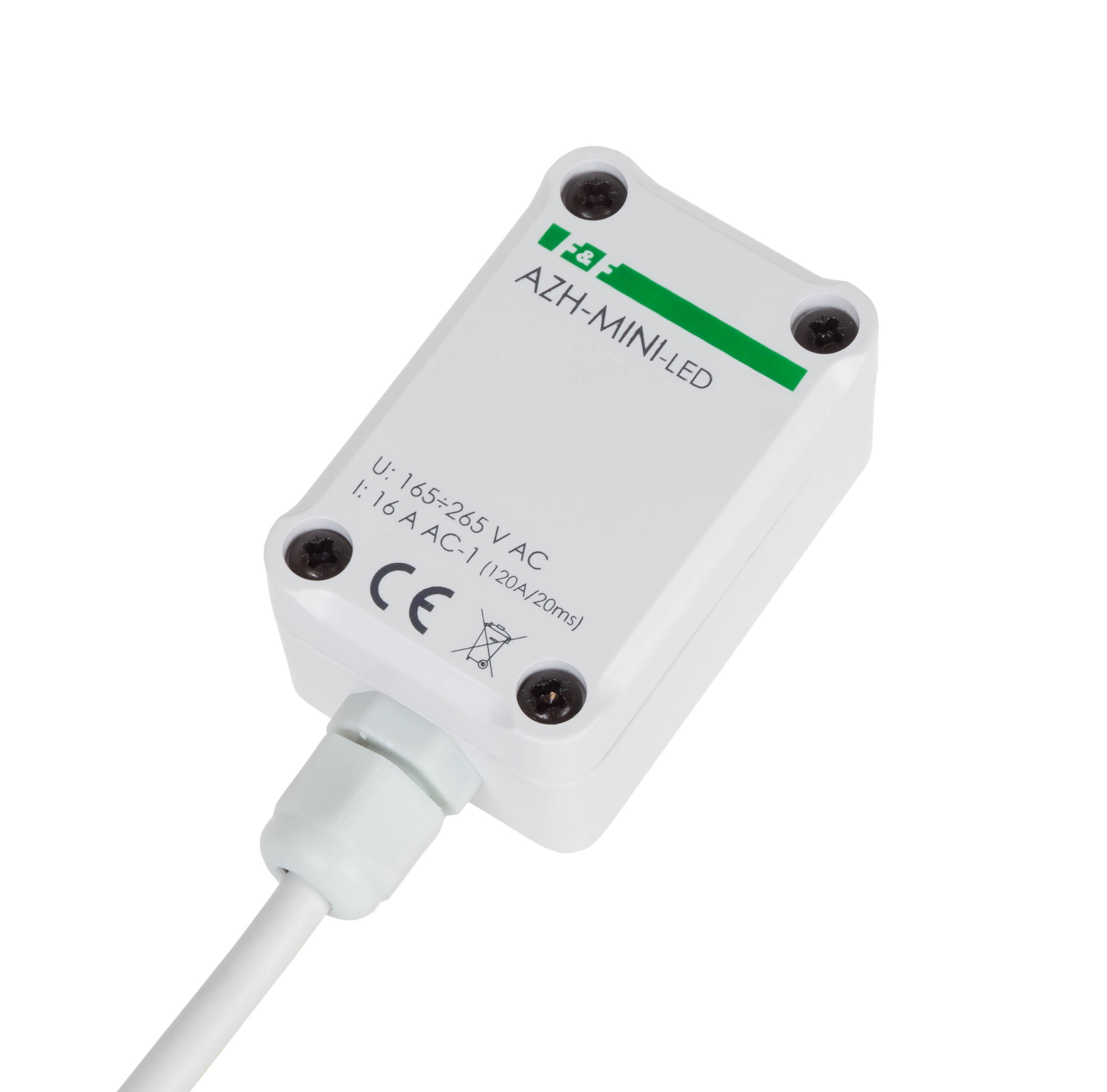

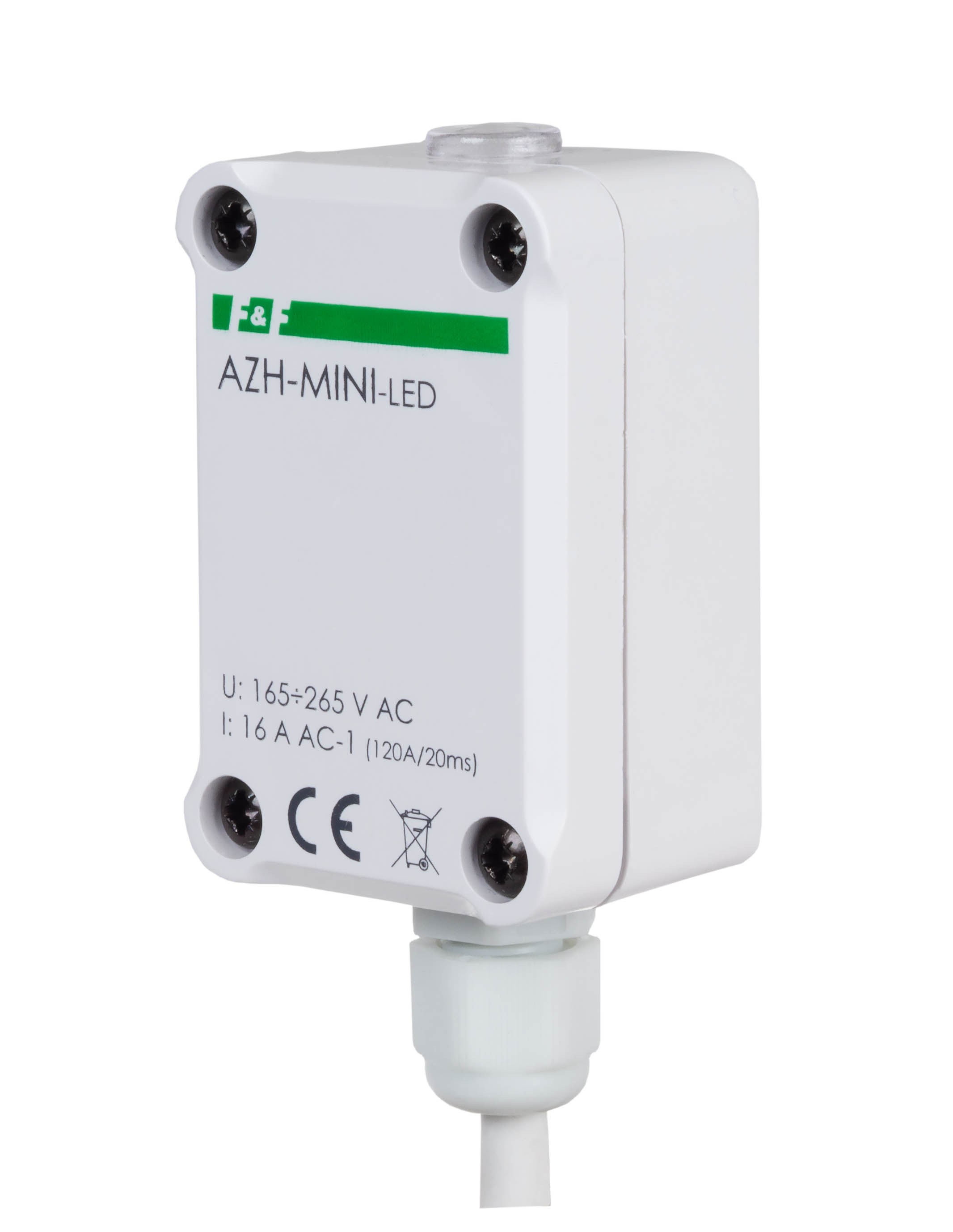

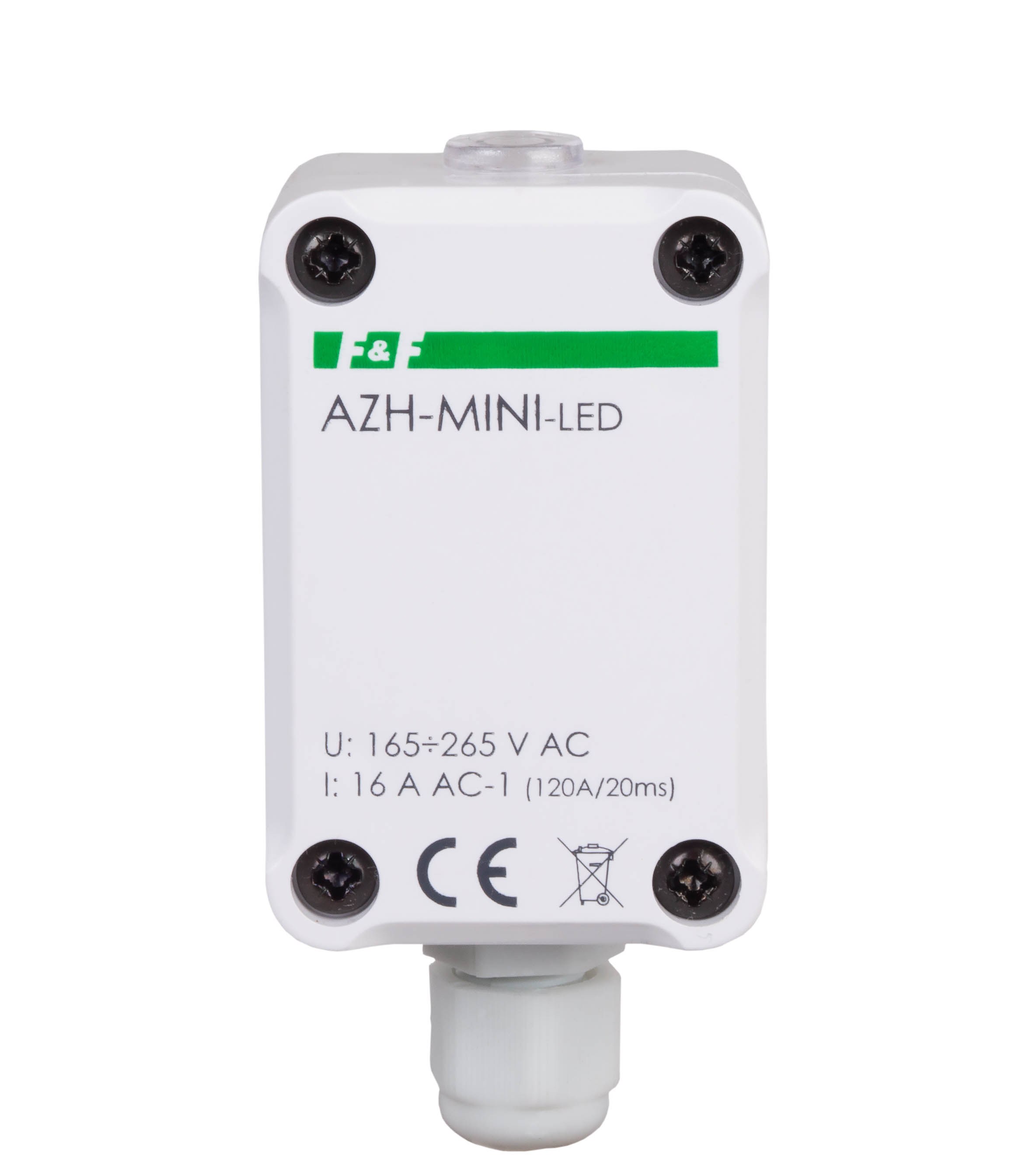

Automat zmierzchowy z wewnętrznym czujnikiem światłoczułym do załączania oświetlenia LED AZH-MINI-LED
Information | Value |
---|---|
Supplier | F&F Filipowski Spółka Komandytowa |
Series | AZ |
Symbol | AZH-MINI-LED |
GTIN(EAN) | 5902431673967 |
Price unit | piece |
Catalog price | 116,85 zł (95,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie zasilania 195÷253 V AC Tolerancja napięcia zasilania -10 ÷ 10 % Maksymalny prąd obciążenia AC-1 10 A Element wykonawczy przekaźnik Konfiguracja styków 1 × NO Separacja styku NIE Odporność na prądy udarowe 160 A/20 ms Próg zadziałania - regulowany 2 ÷ 1000 Lx Histereza ok. 15 Lx Opóźnienie zadziałania włączenia ok. 10 s Opóźnienie zadziałania wyłączenia ok. 20 s Przyłącze OMY 3×0,75 mm²; długość 0,8 m Pobór mocy 0,56 W Temperatura pracy -25 ÷ 50 °C Wymiary 51×67×26 mm (± 1 mm) Montaż natynkowy Stopień ochrony IP65 - hermetyczny
Additional features:
Information | Value |
---|---|
ETIM class: | Twilight switch |
Type of sensor: | Built-in light sensor |
Contacts: | 1 make contact (NO) |
Switch-off delay: | 20 s |
Switching-on delay: | 10 s |
Max. switching power: | 1500 W |
Suitable for C-load: | yes |
With automatic night switch-off: | no |
Mounting method: | Surface mounted |
Swivelling: | no |
Material: | Plastic |
Material quality: | Other |
Halogen free: | no |
Surface protection: | Other |
Surface finishing: | Matt |
Colour: | Other |
RAL-number (similar): | 7035 |
Transparent: | no |
Nominal voltage: | 230 V |
Max. switching current (resistive load): | 10 A |
Suitable for degree of protection (IP): | IP65 |
