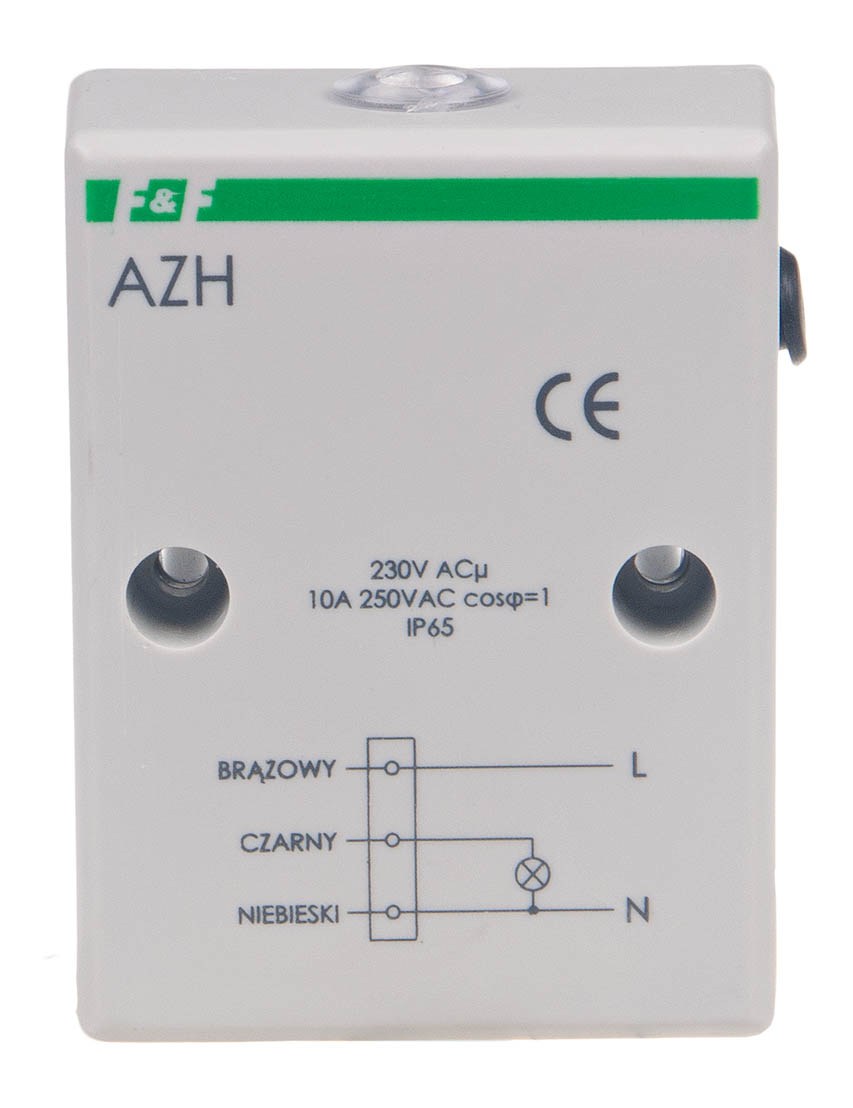

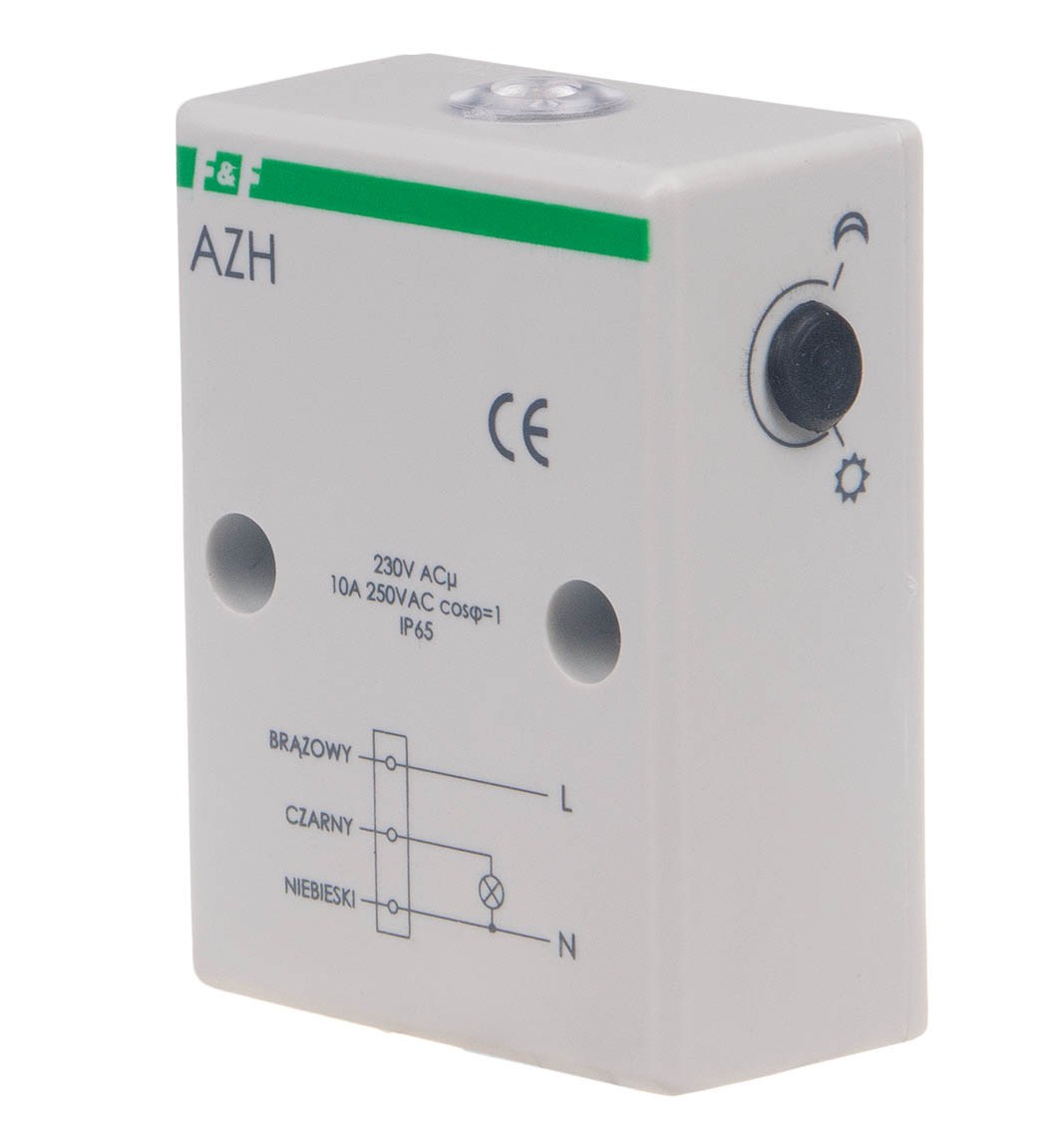

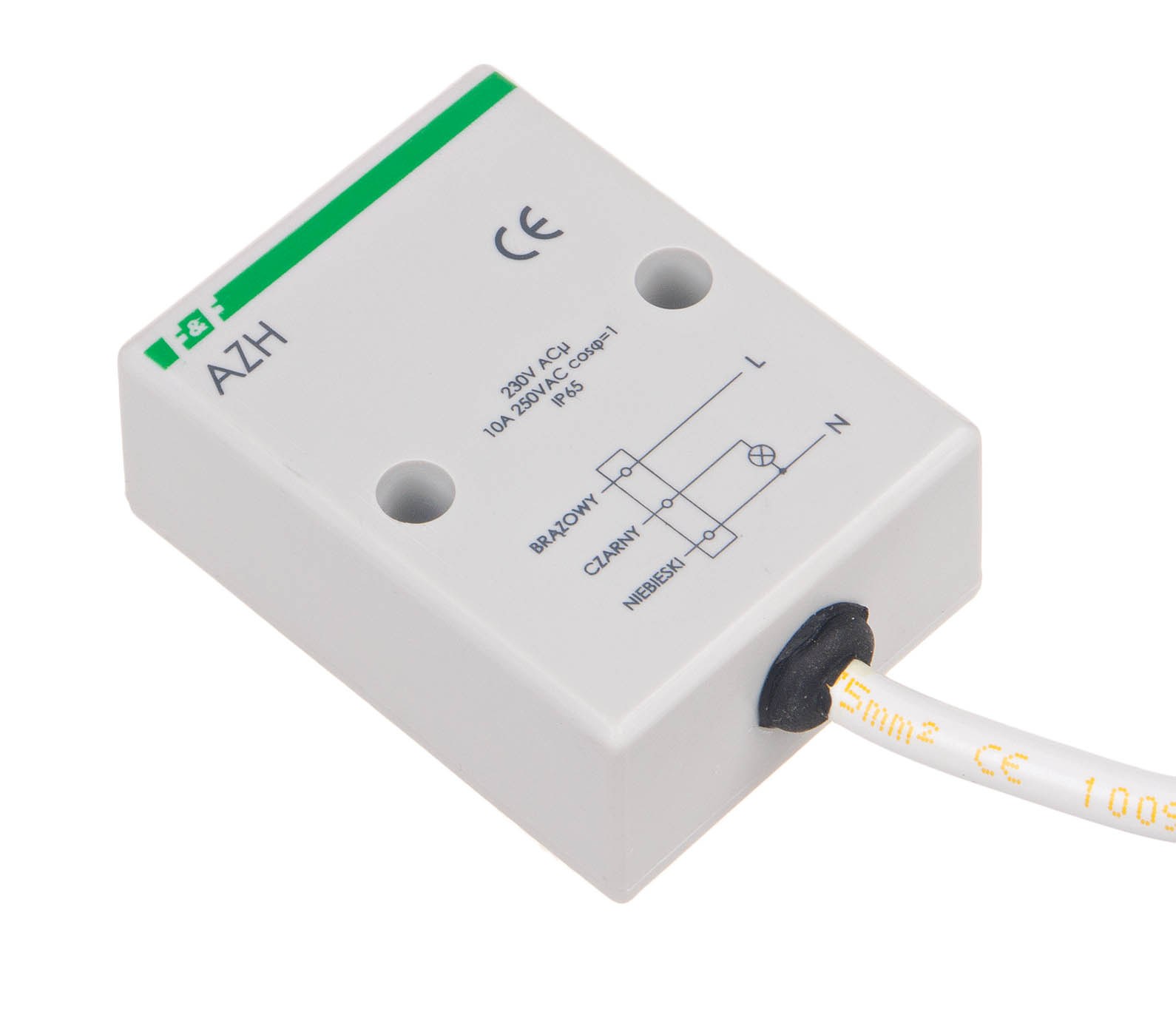

Automat zmierzchowy z wewnętrznym czujnikiem światłoczułym AZH
Information | Value |
---|---|
Supplier | F&F Filipowski Spółka Komandytowa |
Series | AZ |
Symbol | AZH |
GTIN(EAN) | 5908312591016 |
Price unit | piece |
Catalog price | 92,25 zł (75,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Napięcie zasilania 230 V AC Tolerancja napięcia zasilania -10 ÷ 10 % Maksymalny prąd obciążenia AC-1 10 A Element wykonawczy przekaźnik Konfiguracja styków 1 × NO Separacja styku NIE Próg zadziałania - regulowany 2 ÷ 1000 Lx Próg zadziałania - ustawiony ok. 7 Lx Histereza ok. 15 Lx Opóźnienie zadziałania włączenia ok. 10 s Opóźnienie zadziałania wyłączenia ok. 20 s
Additional features:
Information | Value |
---|---|
Gross weight: | 108 g |
ETIM class: | Twilight switch |
Type of sensor: | Built-in light sensor |
Contacts: | 1 make contact (NO) |
Engaging brightness: | 2 - 1000 lx |
Switching-off brightness: | 7 - 7 lx |
Switch-off delay: | 10 s |
Switching-on delay: | 5 s |
Max. switching power: | 1500 W |
Mounting method: | Surface mounted |
Material: | Plastic |
Material quality: | Thermoplastic |
Halogen free: | yes |
Surface protection: | Untreated |
Transparent: | no |
Max. switching current (resistive load): | 10 A |
Suitable for degree of protection (IP): | IP65 |
