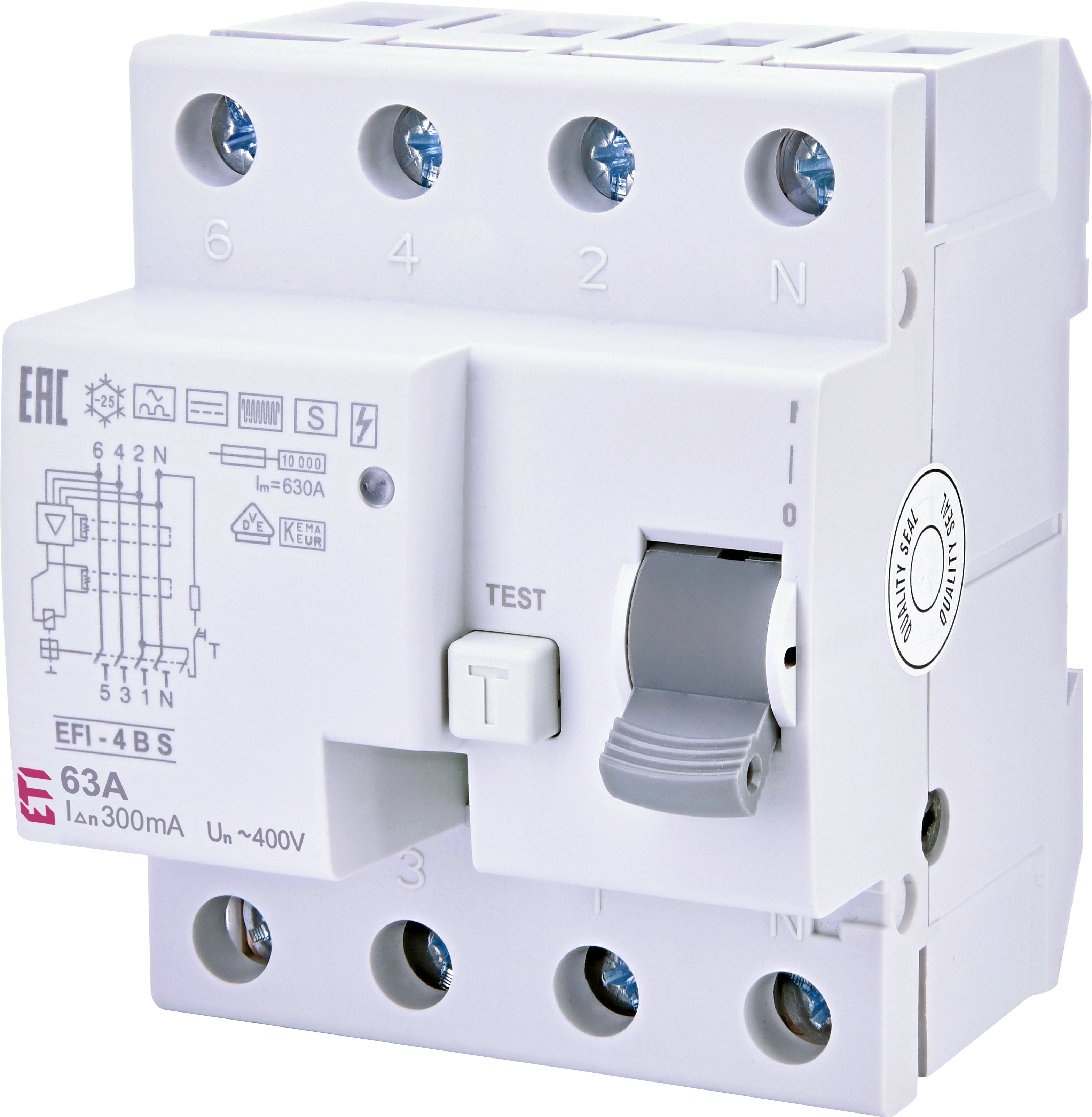

EFI-4 B S 63/0.3 Wyłącznik różnicowoprądowy Typ B, selektywny
Information | Value |
---|---|
Supplier | ETI-POLAM Sp. z o.o. |
Series | ASTI |
Symbol | 002064664 |
GTIN(EAN) | 3838895709350 |
Price unit | piece |
Catalog price | 6 466,61 zł (5 257,41 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Additional features:
Information | Value |
---|---|
Net weight: | 350 g |
ETIM class: | Residual current circuit breaker (RCCB) |
Number of poles: | 4 |
Rated current: | 63 A |
Rated fault current: | 300 A |
Rated insulation voltage Ui: | 500 V |
Rated impulse withstand voltage Uimp: | 4 kV |
Mounting method: | DIN rail |
Leakage current type: | B |
Selective protection: | yes |
Short-circuit breaking capacity (Icw): | 10 kA |
Frequency: | 50/60 Hz |
Degree of protection (IP): | IP20 |
Width in number of modular spacings: | 4 |
Built-in depth: | 68 mm |
Ambient temperature during operating: | -25 - 55 °C |
Connectable conductor cross section multi-wired: | 1 - 25 mm² |
Connectable conductor cross section solid-core: | 1 - 25 mm² |
