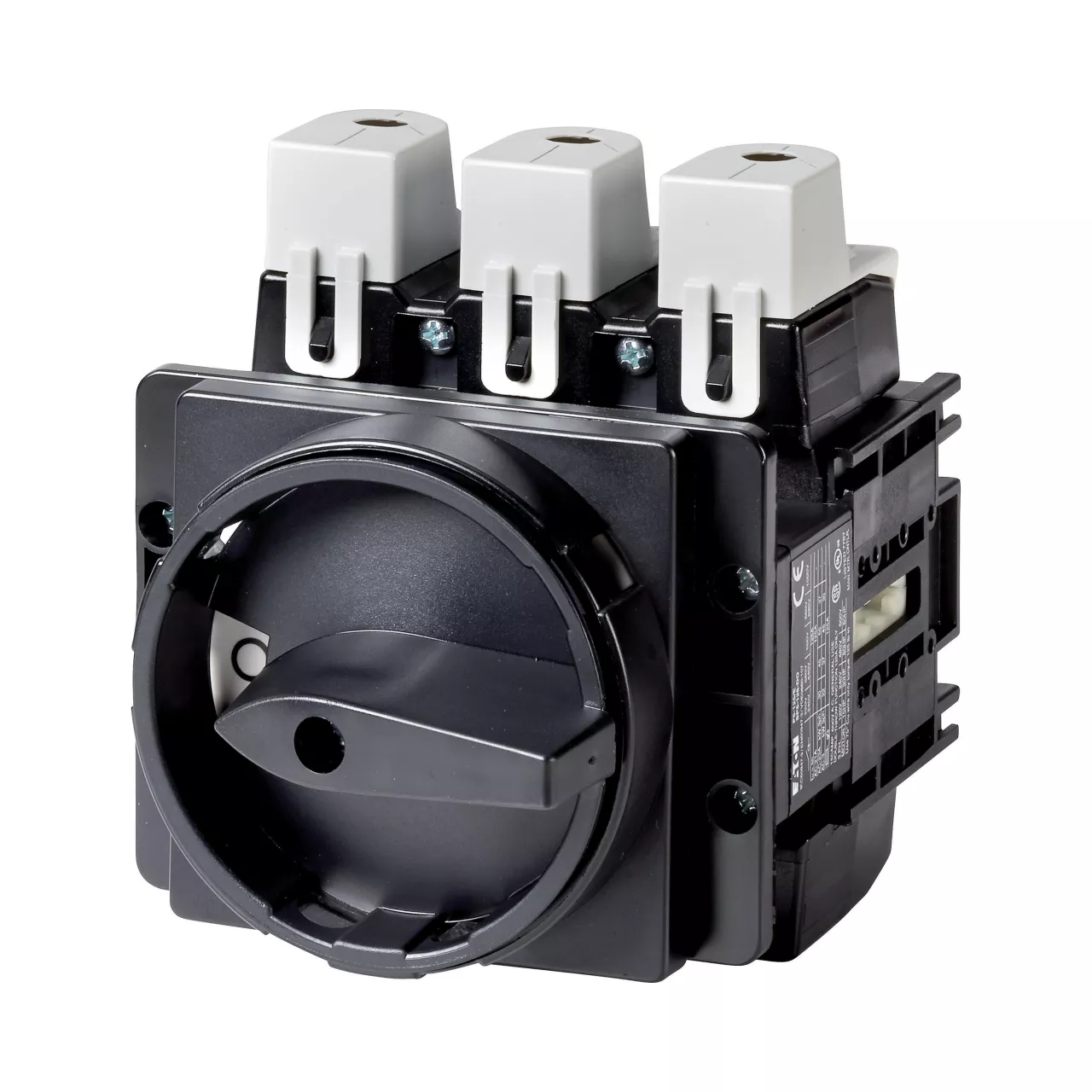

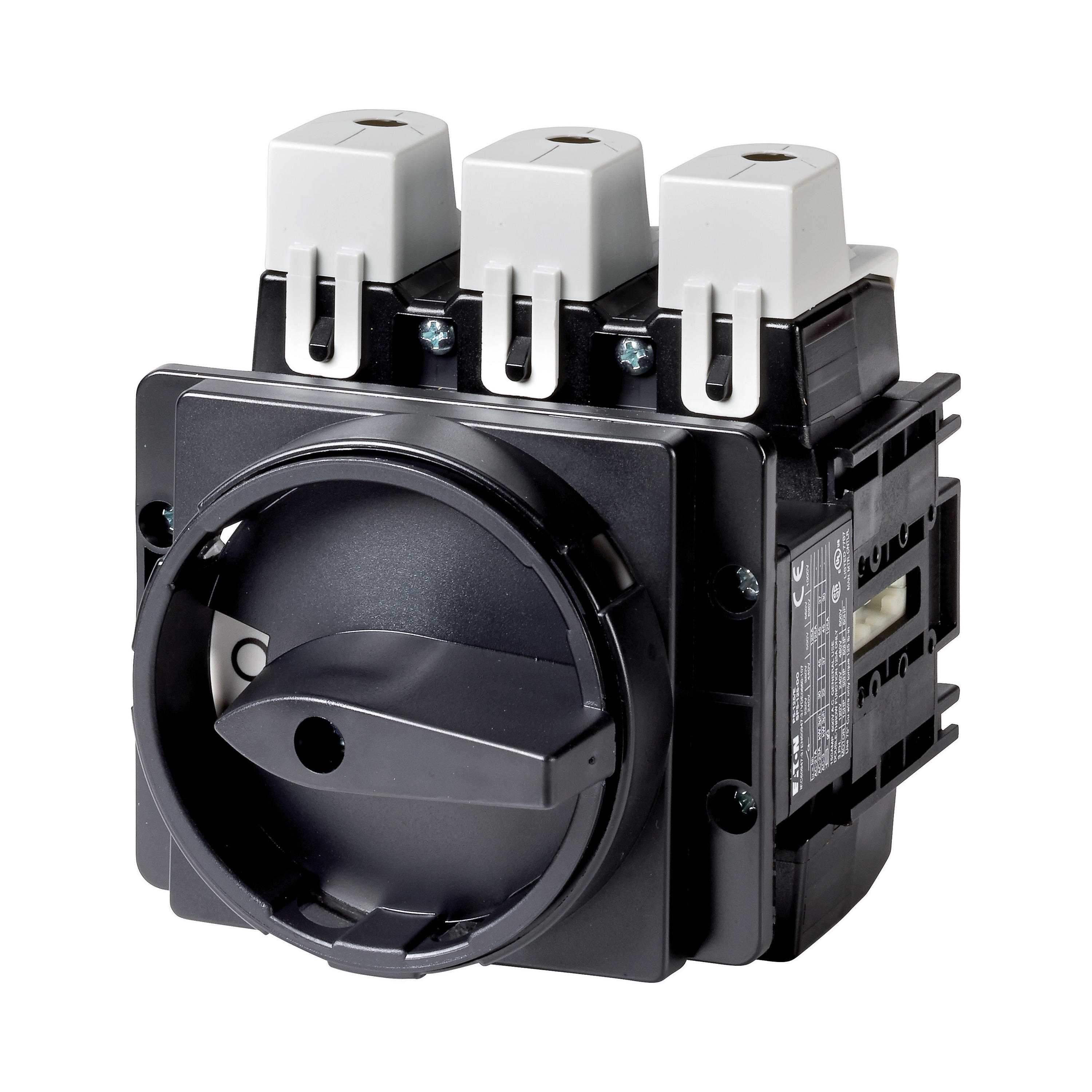

P5-250/EA/SVB-SW/HI10 Rozłącznik główny, 3 bieg.+1NO, 250 A, funkcja awaryjnego zatrzymania, blok. na kłódkę w pozycji Wył., montaż natablicowy, pokrętło czarne z blokadą na kłódkę
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 280940 |
GTIN(EAN) | 4015082809409 |
Price unit | piece |
Catalog price | 2 976,60 zł (2 420,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Rozłącznik główny / rozłącznik izolacyjny wł./wył. wg IEC/EN 60947-3, 690 V, klasa ochrony przód IP65, rękojeść czarna z wieńcem blokującym czarnym zamykana 3 kłódkami rozłączniki izolacyjne P5 mają niewielkie wymiary i solidną konstrukcję. Napęd ręczny działa bezpośrednio na zestyki. Zestyki po wyłączeniu rozwierają się w sposób wymuszony.
Additional features:
Information | Value |
---|---|
Net weight: | 2,004 kg |
ETIM class: | Switch disconnector (low voltage) |
Version as main switch: | yes |
Version as maintenance-/service switch: | yes |
Version as safety switch: | no |
Version as emergency stop installation: | no |
Version as reversing switch: | no |
Number of switches: | 1 |
Max. rated operation voltage Ue AC: | 690 V |
Rated operating voltage: | 690 - 690 V |
Rated permanent current Iu: | 250 A |
Rated permanent current at AC-23, 400 V: | 250 A |
Rated permanent current at AC-21, 400 V: | 250 A |
Rated operation power at AC-3, 400 V: | 55 kW |
Rated short-time withstand current lcw: | 4.6 kA |
Rated operation power at AC-23, 400 V: | 90 kW |
Switching power at 400 V: | 90 kW |
Conditioned rated short-circuit current Iq: | 30 kA |
Number of poles: | 3 |
Number of auxiliary contacts as normally closed contact: | 0 |
Number of auxiliary contacts as normally open contact: | 1 |
Number of auxiliary contacts as change-over contact: | 0 |
Motor drive optional: | no |
Motor drive integrated: | no |
Voltage release optional: | no |
Device construction: | Built-in device fixed built-in technique |
Suitable for floor mounting: | no |
Suitable for front mounting 4-hole: | yes |
Suitable for front mounting centre: | no |
Suitable for distribution board installation: | no |
Suitable for intermediate mounting: | no |
Colour control element: | Black |
Type of control element: | Door coupling rotary drive |
Interlockable: | yes |
Type of electrical connection of main circuit: | Frame clamp |
Degree of protection (IP), front side: | IP65 |
Degree of protection (NEMA): | 12 |
