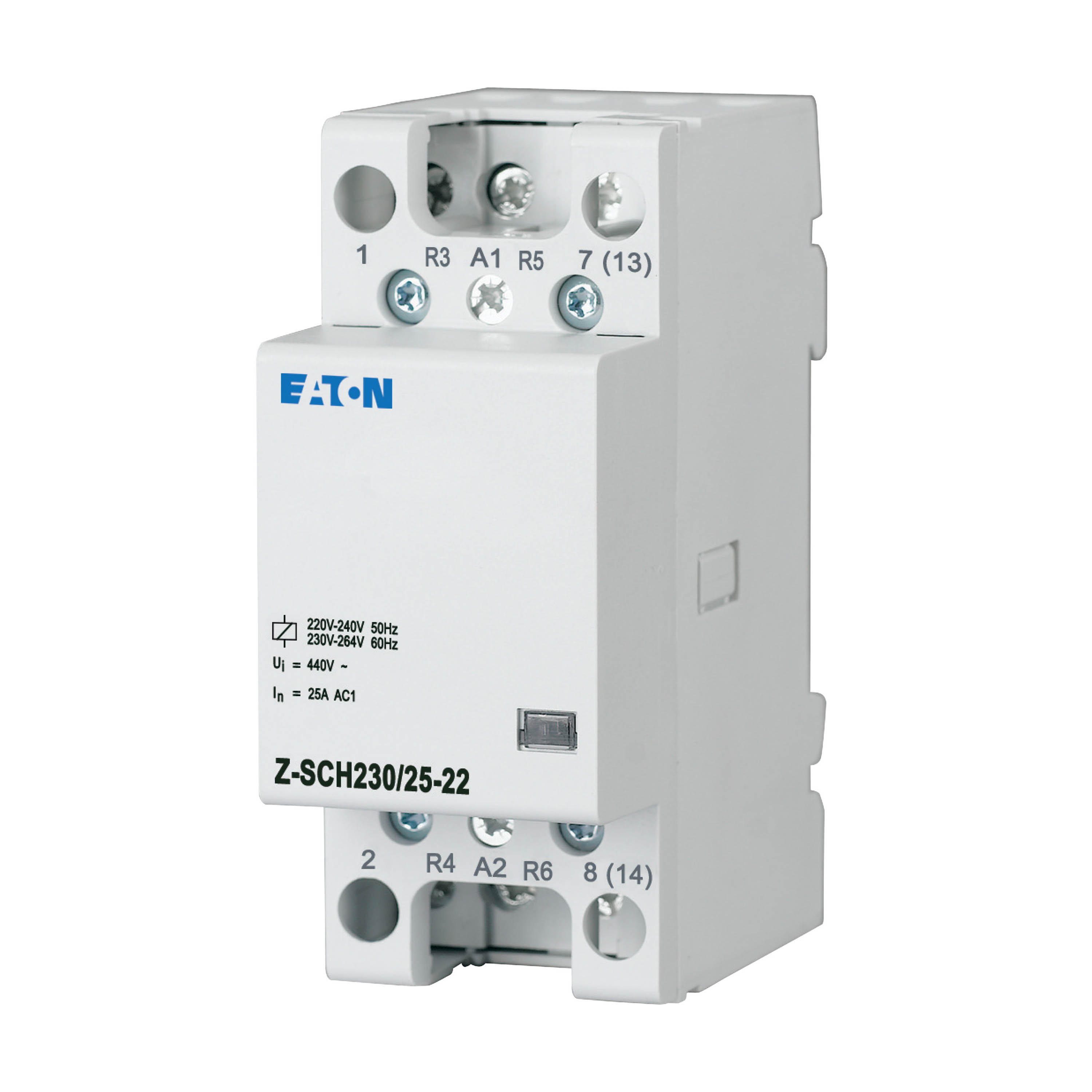

Z-SCH230/25-22 Stycznik instalacyjny
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 248849 |
| GTIN(EAN) | 4015082488499 |
| Price unit | piece |
| Catalog price | 513,53 zł (417,50 zł + 23% VAT) |
| Sale price | from 117,17 zł / szt. (95,26 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Installatie magneetschakelaar, nominale spanning stuurcircuit 230 V AC, nominale bedrijfsstroom bij AC1 25 A, functie: 2 no + 2 nc, details volgens IEC 61095, EN 61095, VDE 0660, IEC 60947-4-1_x, EN 60947-4-1, VDE, standaardafmeting voorkant 45 mm, montagebreedte 2 MU (35 mm), DIN-rail montage
Additional features:
| Information | Value |
|---|---|
| Net weight: | 220 g |
| Country of origin | Austria |
| ETIM class: | Installation contactor for distribution board |
| Rated operation current: | 25 A |
| Voltage type (operating voltage): | AC |
| Voltage type (excitation voltage): | AC |
| Number of contacts as normally open contact: | 2 |
| Number of contacts as normally closed contact: | 2 |
| Max. incandescent lamp load: | 3 000 W |
| Max. load fluorescent lamp: | 1 160 VA |
| Max. load fluorescent lamp (Duo circuit): | 2 552 VA |
| Max. load fluorescent lamp (parallel compensated): | 1 044 VA |
| Slider for hand switch: | no |
| Width in number of modular spacings: | 2 |
| Built-in depth: | 60 mm |
| Additional equipment possible: | yes |
| With day/night function: | no |
| Hum-free: | no |
| Degree of protection (IP): | IP40 |
| Utilization category according to EN IEC 60947-4-1: |
