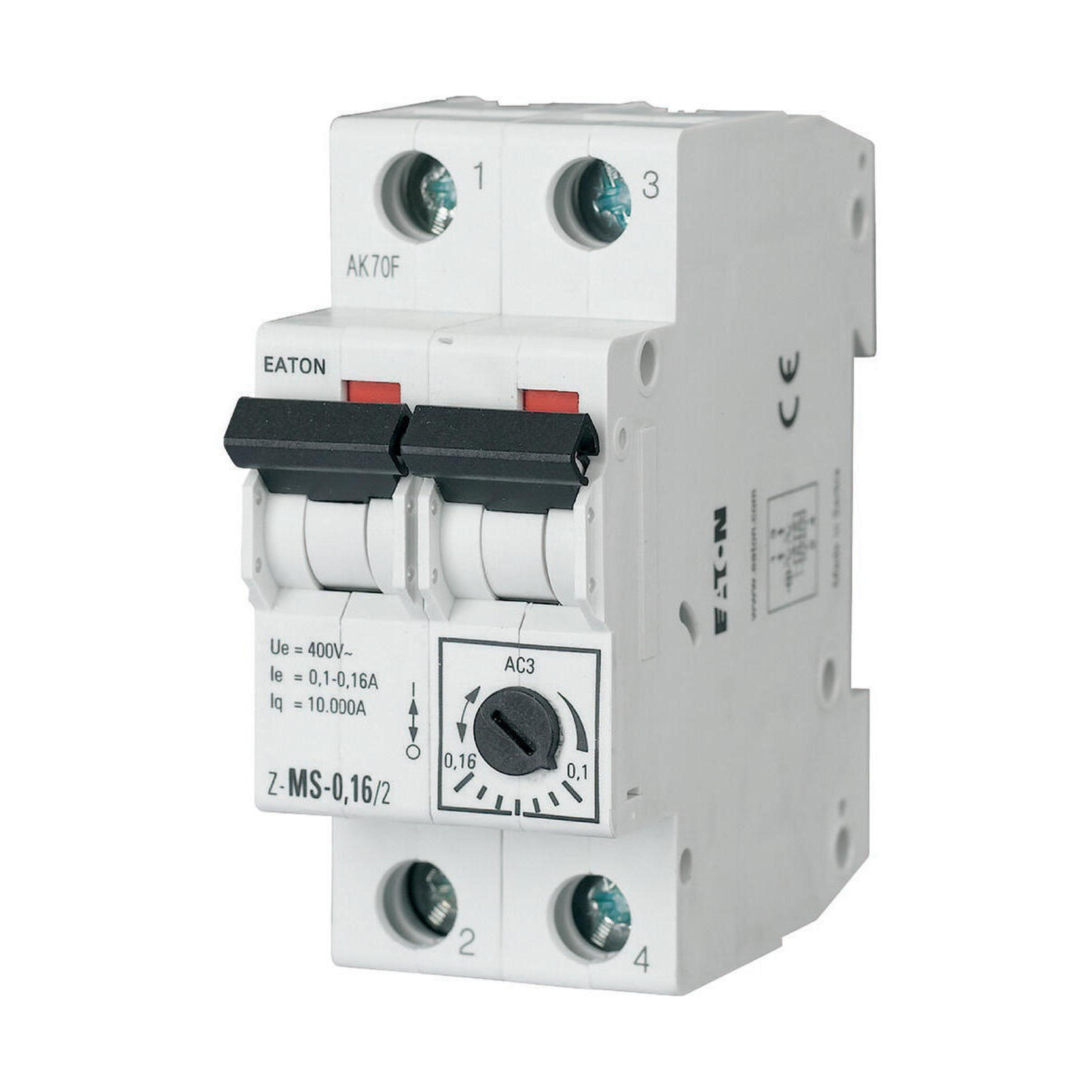

Z-MS-4,0/2 Wyłącznik silnikowy 2-biegunowy
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 248396 |
GTIN(EAN) | 4015082483968 |
Price unit | piece |
Catalog price | 257,32 zł (209,20 zł + 23% VAT) |
Sale price | from 49,19 zł (39,99 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Motor-protective circuit-breaker with thermal overload release and magnetic short-circuit release, for switching and protecting three-phase motors with outputs of up to 15 kW (380/400 V) or other loads with currents of up to 40 A, can also be used as a main switch, isolating characteristics to IEC/EN 60947, contact position display red/green
Additional features:
Information | Value |
---|---|
Net weight: | 244 g |
ETIM class: | Motor protection circuit-breaker |
Overload release current setting: | 2.5 - 4 A |
Adjustment range undelayed short-circuit release: | 40 - 52 A |
With thermal overload protection: | yes |
Phase failure sensitive: | no |
Switch off technique: | Magnetic |
Rated operating voltage: | 400 - 400 V |
Rated permanent current Iu: | 4 A |
Rated operation power at AC-3, 230 V: | 0 kW |
Rated operation power at AC-3, 400 V: | 1.5 kW |
Type of electrical connection of main circuit: | Screw connection |
Type of control element: | Rocker lever |
Device construction: | Complete device in housing |
With integrated auxiliary switch: | no |
With integrated under voltage release: | no |
Number of poles: | 2 |
Rated short-circuit breaking capacity lcu at 400 V, AC: | 10 kA |
Degree of protection (IP): | IP20 |
Height: | 75 mm |
Width: | 36 mm |
Depth: | 80 mm |
