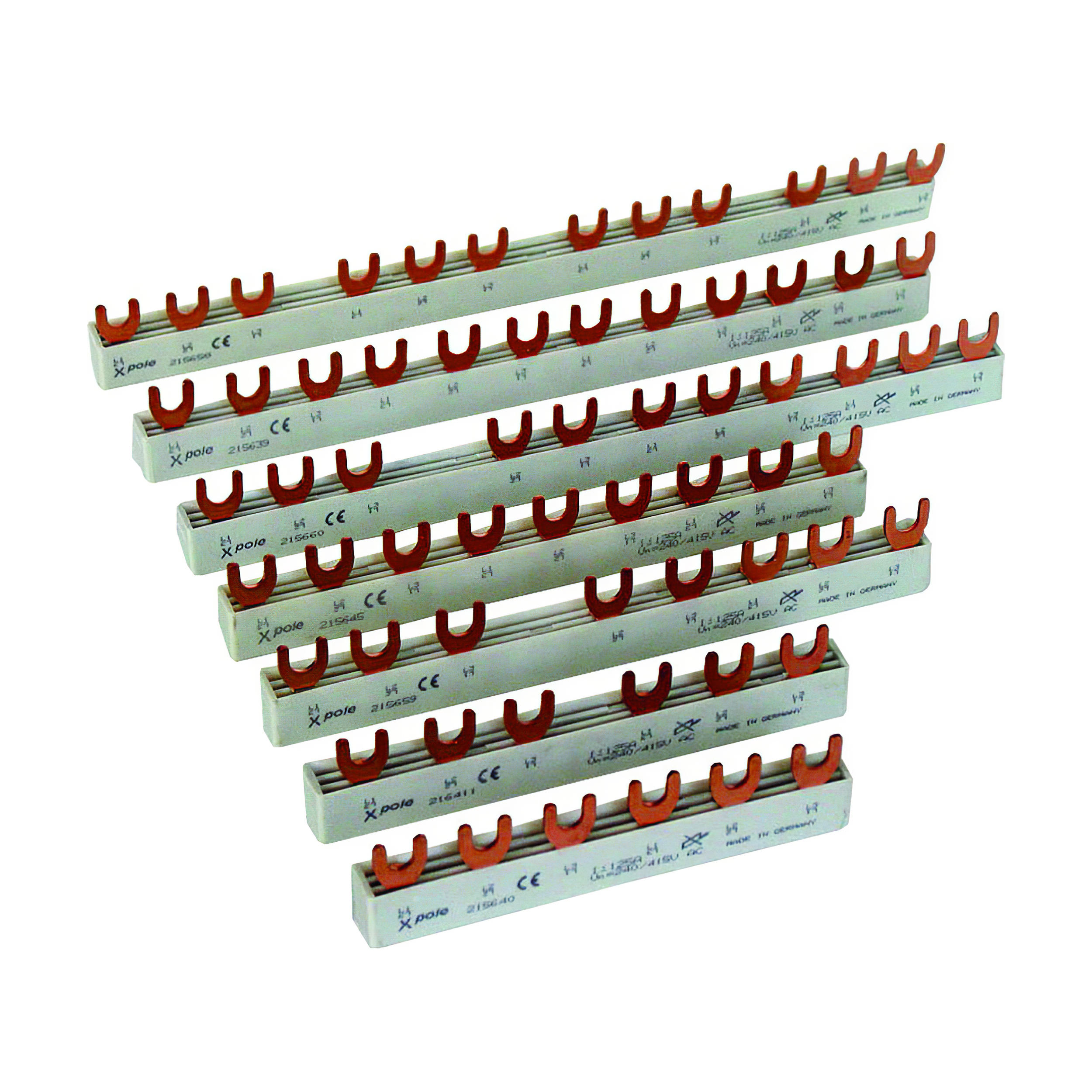

EVG-3PHAS/9MODUL Szyna do łączenia aparatury modułowej
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 215645 |
GTIN(EAN) | 4014380536734 |
Price unit | piece |
Catalog price | 63,74 zł (51,82 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Oszynowanie: Ograniczenie naddatku materiału Nie trzeba stosować zatyczek Oszczędność 30% czasu montażu
Additional features:
Information | Value |
---|---|
Net weight: | 63 g |
ETIM class: | Phase busbar |
Colour: | Other |
Insulated: | yes |
Number of phases: | 3 |
Cross section: | 10 mm² |
Rated permanent current Iu: | 63 A |
Number of poles: | 3 |
Length: | 140 mm |
Conditioned rated short-circuit current Iq: | 25 kA |
Width in number of modular spacings: | 9 |
Rated surge voltage: | 4 kV |
Type of electric connection: | Fork |
Rated short-time withstand current lcw: | 0 kA |
Suitable for devices with auxiliary switch: | no |
Suitable for devices with N-conductor: | no |
Suitable for number of devices: | 3 |
Max. rated operation voltage Ue: | 500 V |
Module width: | 0 mm |
