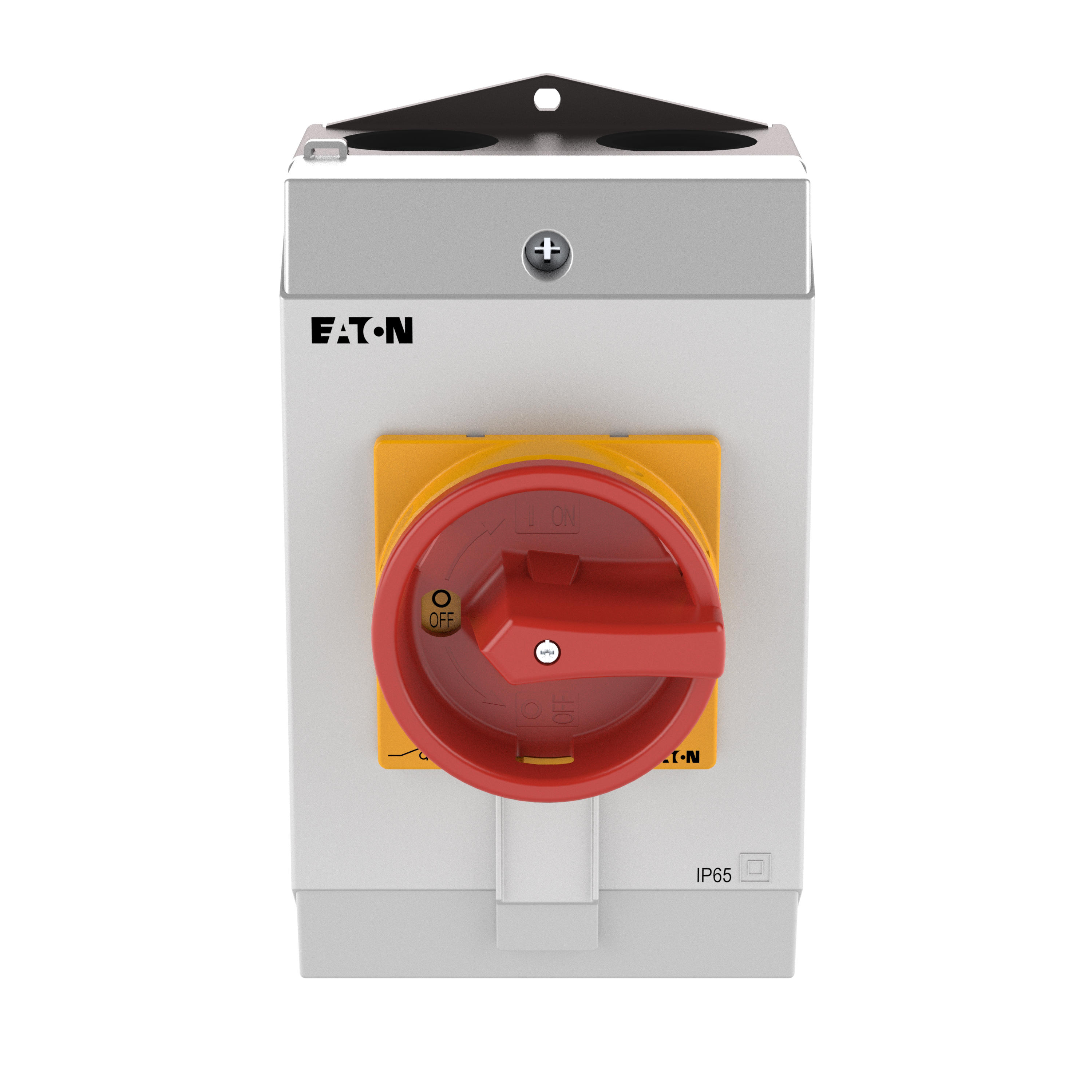

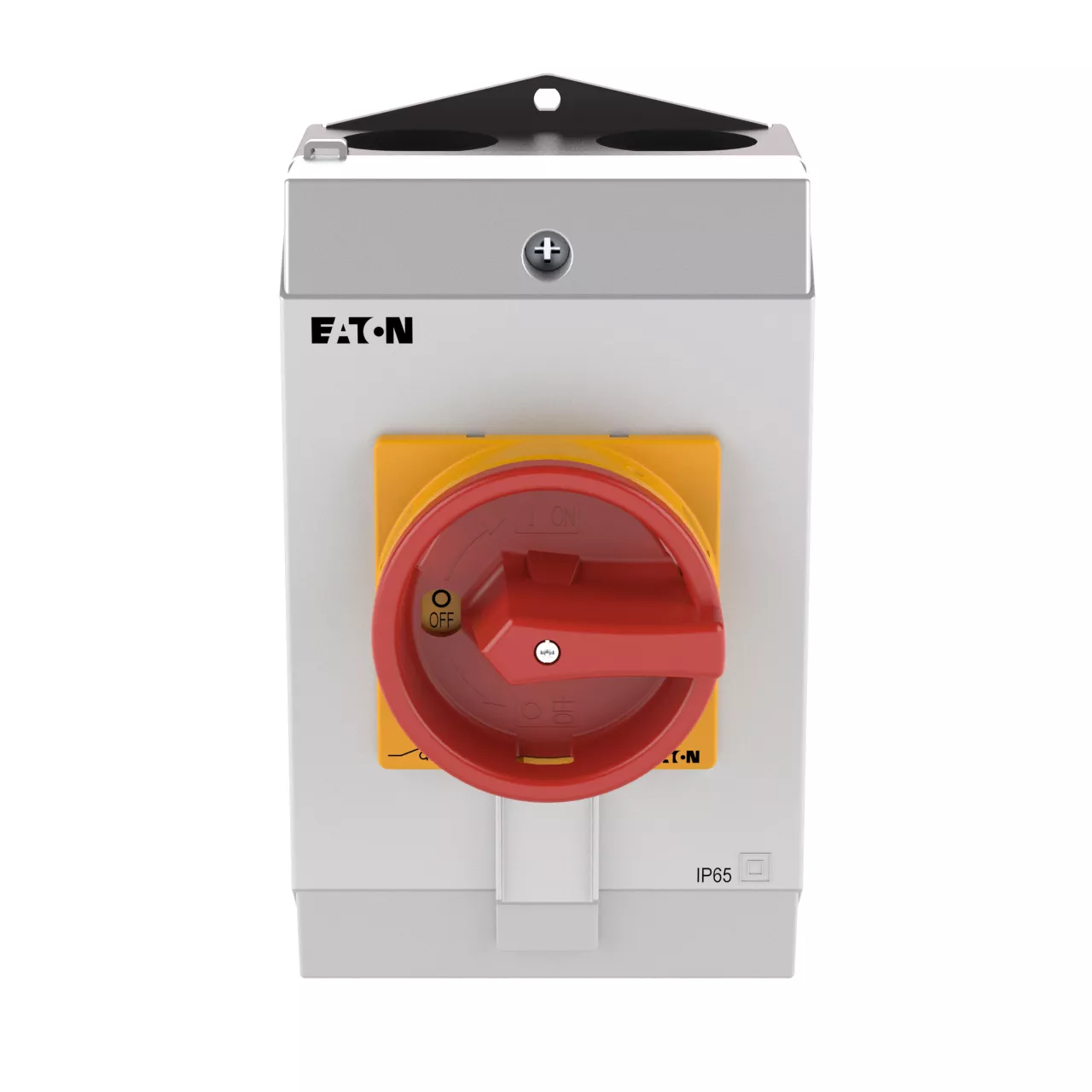

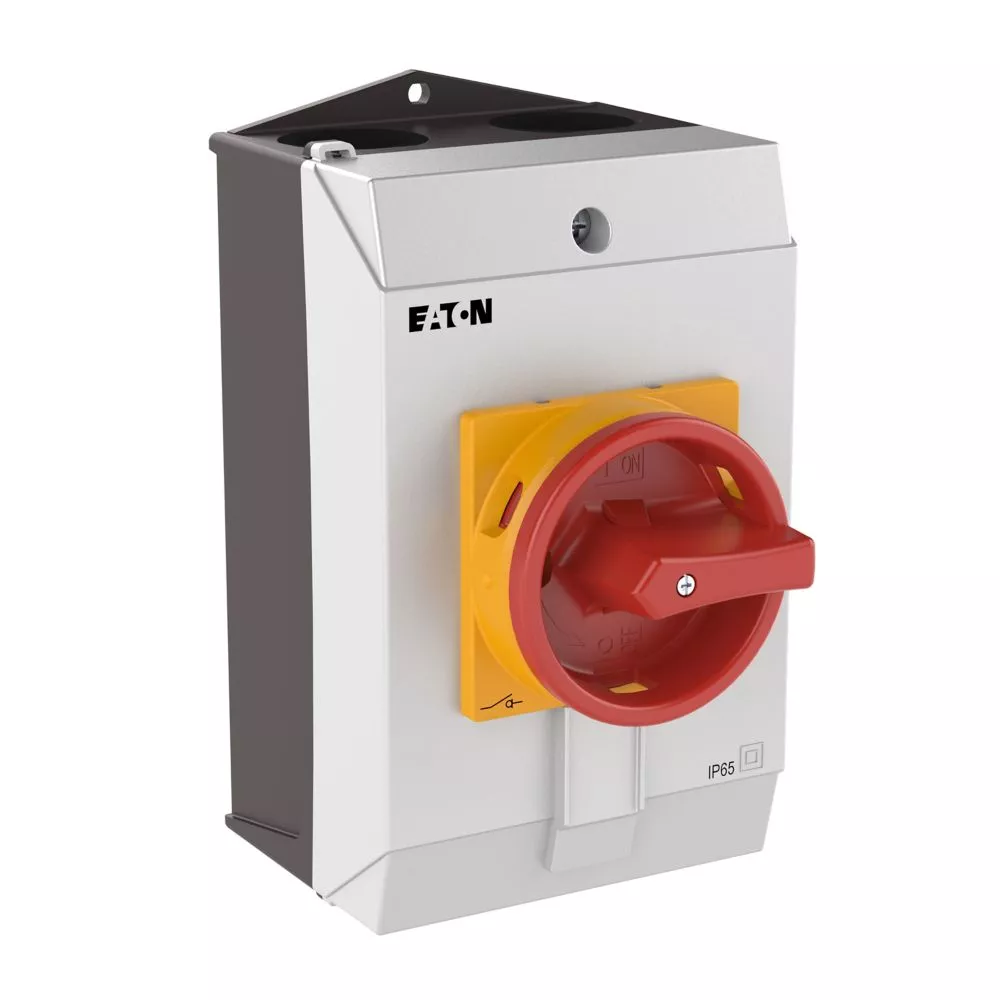

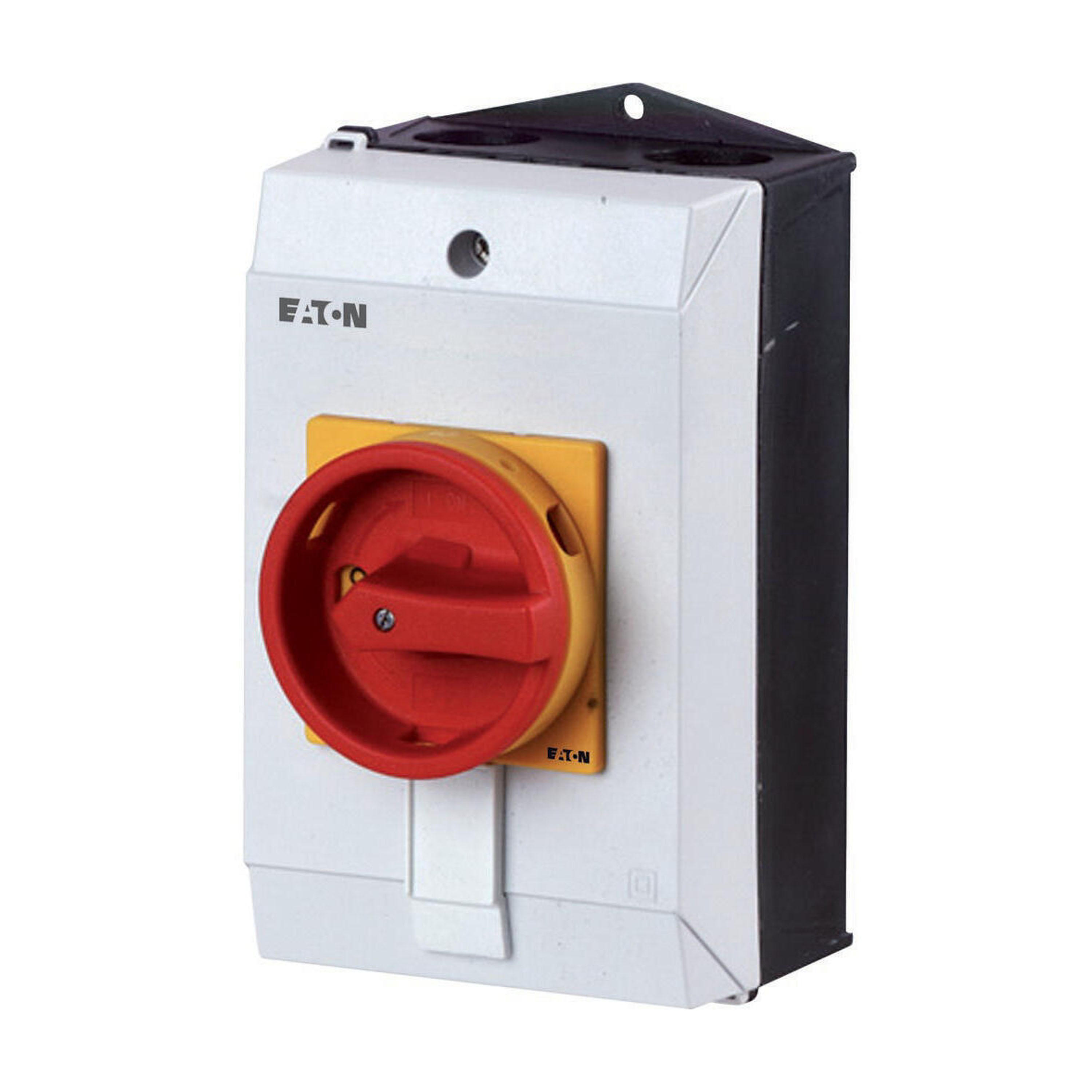

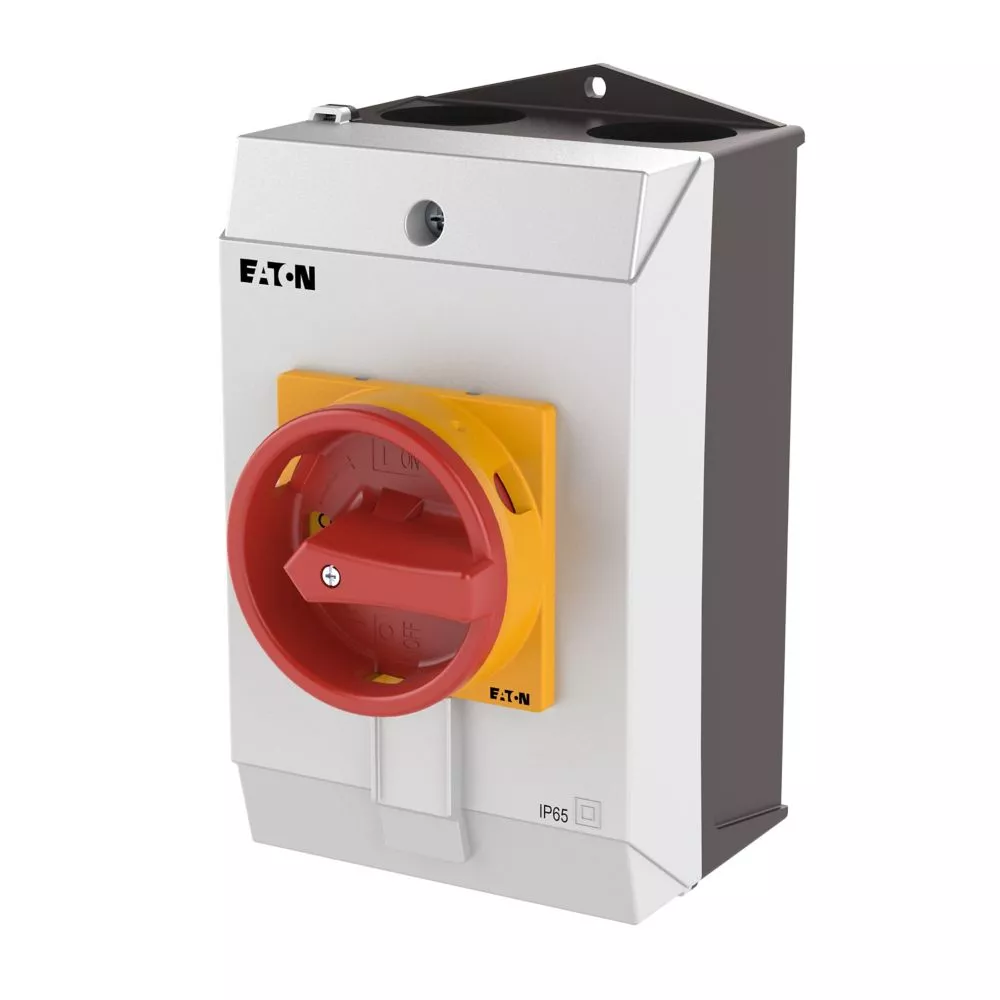

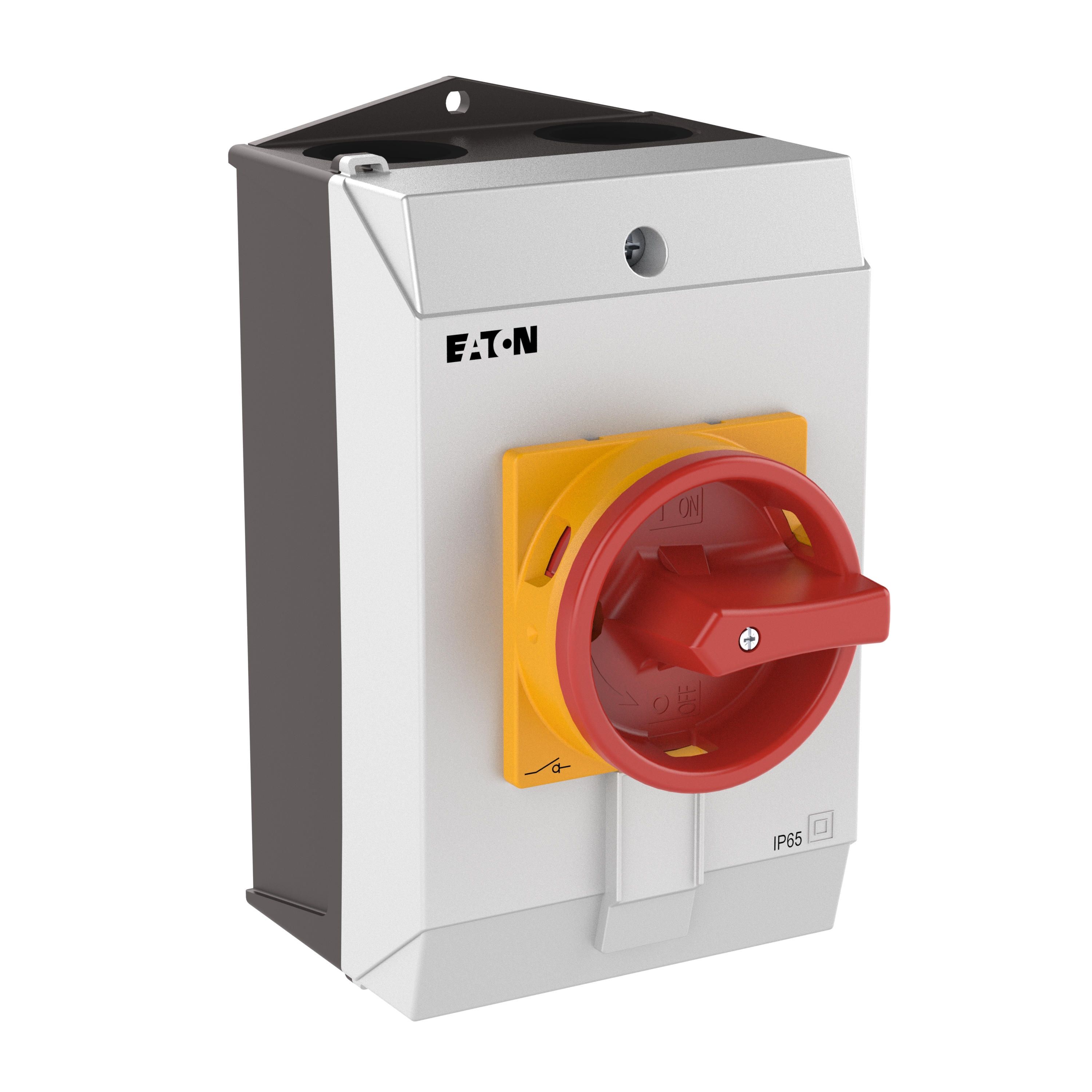

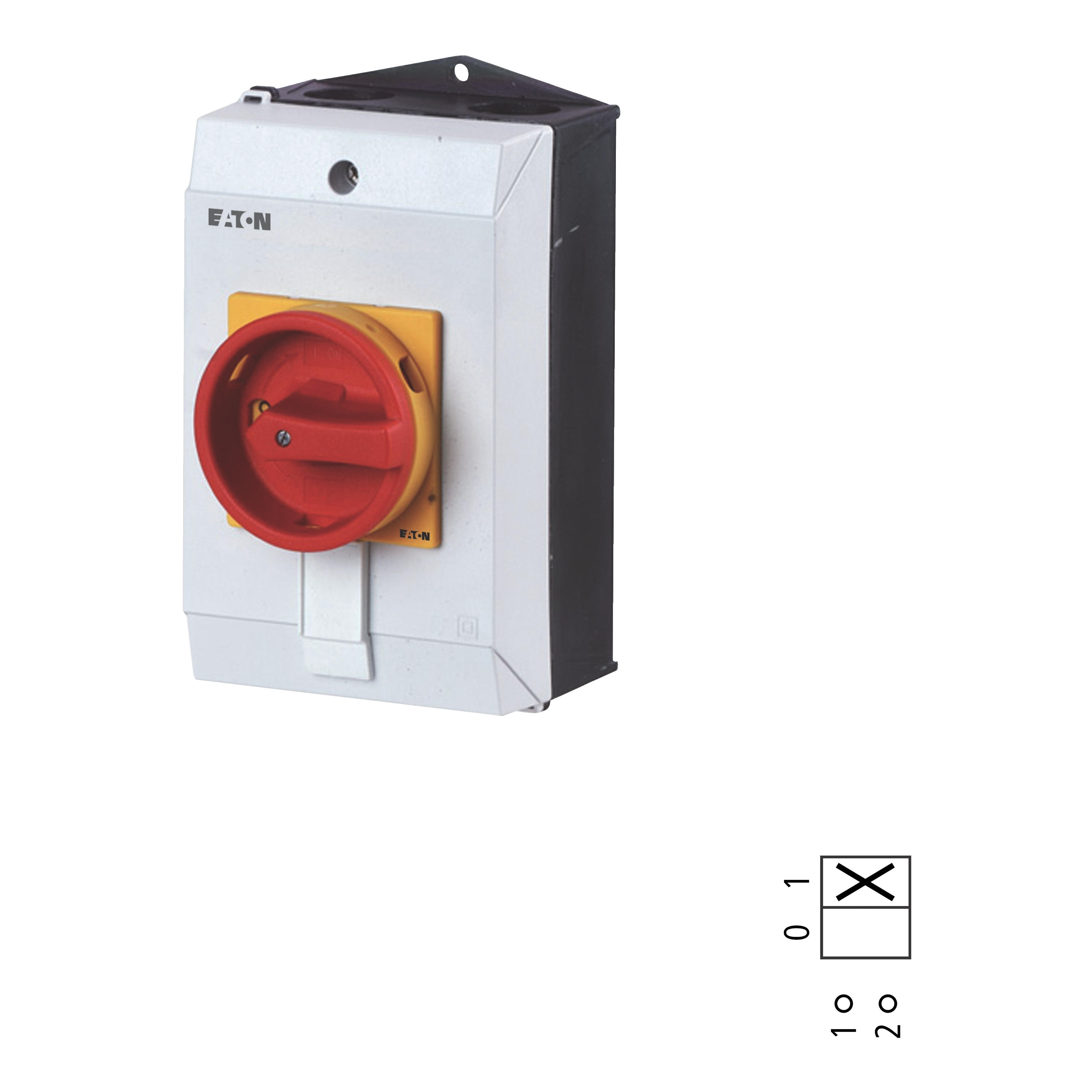

T3-1-8200/I2/SVB Przełącznik Zał.-Wył., Styki: 2, 32A, tabliczka: 0-1, 90°, bez samopowrotu, w obudowie IP65, pokrętło czerwono-żółte z blokadą na kłódkę
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 207200 |
GTIN(EAN) | 4015082072001 |
Price unit | piece |
Catalog price | 556,08 zł (452,10 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Wyłącznik główny wg IEC/EN60947, wielkość konstrukcyjna T3, w obudowie natynkowej, klasa ochrony IP65 z czerwoną rękojeścią i żółtym wieńcem blokującym zamykanie w położeniu zerowym, pomiarowy prąd stały Iu 32A, znamionowe napięcie pracy Ue 690V, dostępne akcesoria zgodnie z danymi katalogu łączników krzywkowych T
Additional features:
Information | Value |
---|---|
Net weight: | 485 g |
ETIM class: | Switch disconnector (low voltage) |
Version as main switch: | yes |
Version as maintenance-/service switch: | yes |
Version as safety switch: | no |
Version as emergency stop installation: | yes |
Version as reversing switch: | no |
Number of switches: | 1 |
Rated operating voltage: | 690 - 690 V |
Rated permanent current Iu: | 32 A |
Rated permanent current at AC-23, 400 V: | 32 A |
Rated permanent current at AC-21, 400 V: | 32 A |
Rated operation power at AC-3, 400 V: | 11 kW |
Rated short-time withstand current lcw: | 0.65 kA |
Rated operation power at AC-23, 400 V: | 15 kW |
Switching power at 400 V: | 15 kW |
Conditioned rated short-circuit current Iq: | 1 kA |
Number of poles: | 1 |
Number of auxiliary contacts as normally closed contact: | 0 |
Number of auxiliary contacts as normally open contact: | 0 |
Number of auxiliary contacts as change-over contact: | 0 |
Motor drive optional: | no |
Motor drive integrated: | no |
Voltage release optional: | no |
Device construction: | Complete device in housing |
Suitable for floor mounting: | yes |
Suitable for front mounting 4-hole: | no |
Suitable for front mounting centre: | no |
Suitable for distribution board installation: | no |
Suitable for intermediate mounting: | no |
Colour control element: | Red |
Type of control element: | Door coupling rotary drive |
Interlockable: | yes |
Type of electrical connection of main circuit: | Screw connection |
Degree of protection (IP), front side: | IP65 |
Degree of protection (NEMA): | 12 |
