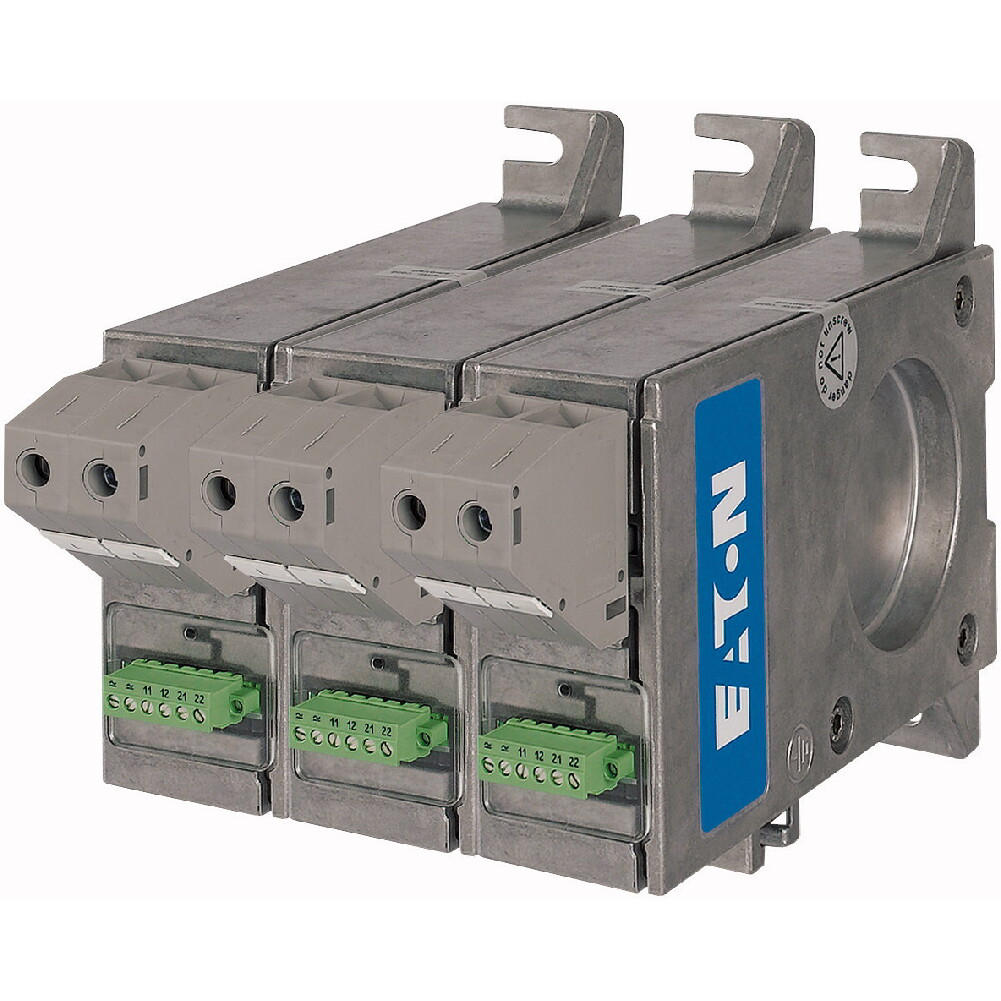

SPWT12-690-3P Ogranicznik przepięć typ 1+2 PV
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 177261 |
GTIN(EAN) | 4015081717132 |
Price unit | piece |
Catalog price | 7 785,90 zł (6 330,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Lightning current / surge arresters, for wind energy, type 1/2 / class I/II, for 1-phase power supply systems with combined installed PE and N in a single conductor(L1, PEN)
Additional features:
Information | Value |
---|---|
ETIM class: | Surge protection device for power supply systems |
Nominal discharge surge current (8/20): | 35 kA |
Nominal voltage AC: | 690 V |
Nominal voltage DC: | 0 V |
Max. continuous voltage AC: | 800 V |
Max. continuous voltage DC: | 0 V |
Mounting method: | Direct mounting |
Construction size: | Other |
Max. PV-voltage: | 0 V |
Voltage protection level: | 4.5 kV |
Max. conductor cross section solid (solid, stranded): | 95 mm² |
Max. conductor cross section flexible (fine-strand): | 25 mm² |
Voltage protection level L-N: | 0 kV |
Voltage protection level N-PE: | 0 kV |
With remote signalling contact: | yes |
Integrated backup fuse: | no |
Signalling at the device: | Optical |
Category type 2: | yes |
Degree of protection (IP): | IP20 |
