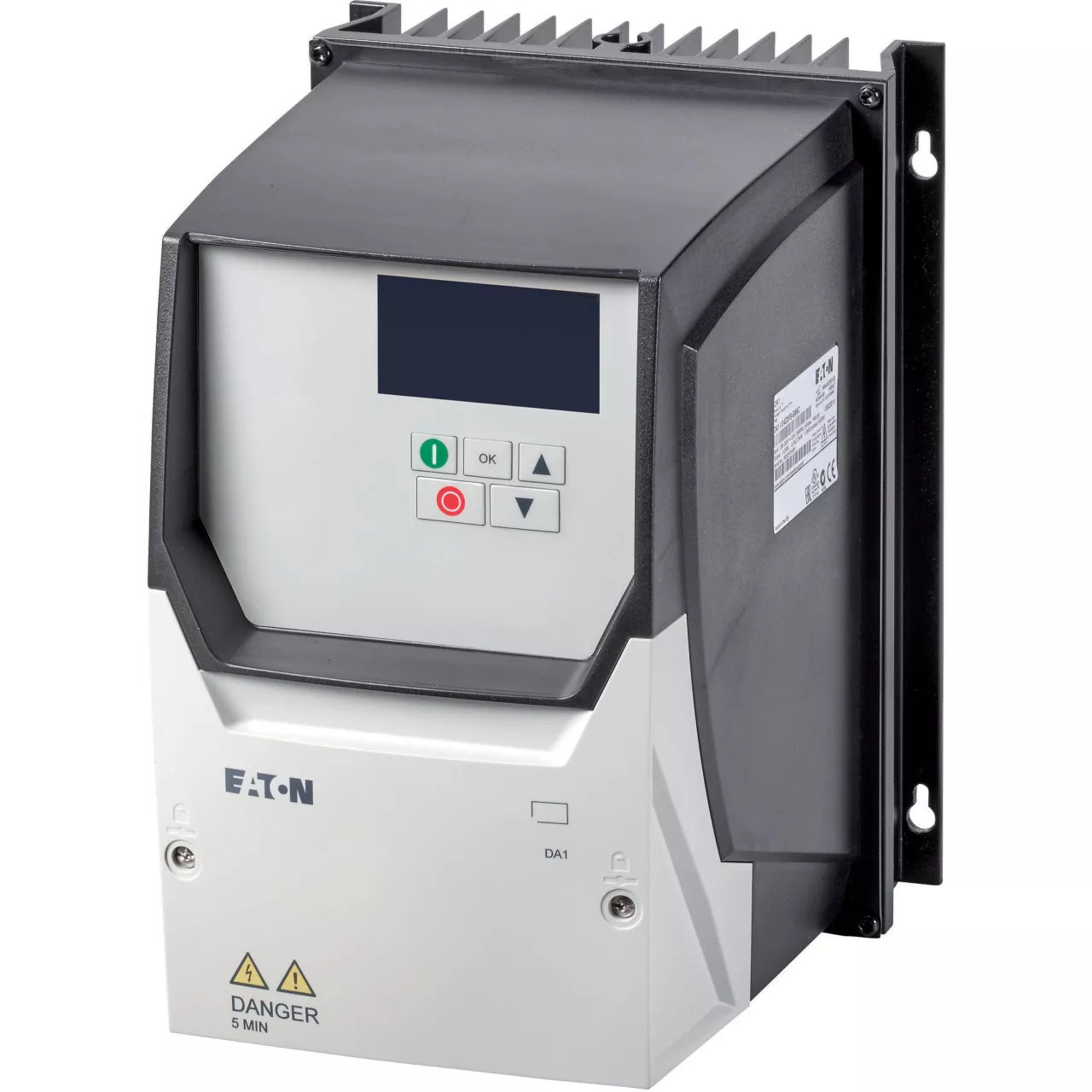

DA1-359D0NB-B6SC Przemiennik, 9A, 3x500-600V, bez RFI, IP66, lokalne ster.
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 177016 |
GTIN(EAN) | 4015081714599 |
Price unit | piece |
Catalog price | 8 195,49 zł (6 663,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Compact DA1 variable frequency drives feature enormous functionality for applications with outputs of up to 250 kW and are the perfect match for demanding, speed-dependent applications. They come with an integrated EMC filter and braking transistors. In addition, they also come with the Modbus RTU and CANopen protocols integrated as standard.
Additional features:
Information | Value |
---|---|
Net weight: | 1,8 kg |
ETIM class: | Frequency converter =< 1 kV |
Mains voltage: | 500 - 600 V |
Mains frequency: | 50/60 Hz |
Number of phases input: | 3 |
Number of phases output: | 3 |
Max. output frequency: | 500 Hz |
Max. output voltage: | 600 V |
Nominal output current I2N: | 9 A |
Max. output at quadratic load at rated output voltage: | 5.5 kW |
Max. output at linear load at rated output voltage: | 5.5 kW |
Relative symmetric net frequency tolerance: | 10 % |
Relative symmetric net voltage tolerance: | 10 % |
Number of analogue outputs: | 2 |
Number of analogue inputs: | 2 |
Number of digital outputs: | 2 |
Number of digital inputs: | 5 |
With control element: | yes |
Application in industrial area permitted: | yes |
Application in domestic- and commercial area permitted: | yes |
Supporting protocol for TCP/IP: | yes |
Supporting protocol for PROFIBUS: | yes |
Supporting protocol for CAN: | yes |
Supporting protocol for INTERBUS: | no |
Supporting protocol for ASI: | no |
Supporting protocol for KNX: | no |
Supporting protocol for Modbus: | yes |
Supporting protocol for Data-Highway: | no |
Supporting protocol for DeviceNet: | yes |
Supporting protocol for SUCONET: | no |
Supporting protocol for LON: | no |
Supporting protocol for PROFINET IO: | yes |
Supporting protocol for PROFINET CBA: | no |
Supporting protocol for SERCOS: | no |
Supporting protocol for Foundation Fieldbus: | no |
Supporting protocol for EtherNet/IP: | yes |
Supporting protocol for AS-Interface Safety at Work: | no |
Supporting protocol for DeviceNet Safety: | no |
Supporting protocol for INTERBUS-Safety: | no |
Supporting protocol for PROFIsafe: | no |
Supporting protocol for SafetyBUS p: | no |
Supporting protocol for BACnet: | no |
Supporting protocol for other bus systems: | yes |
Number of HW-interfaces industrial Ethernet: | 0 |
Number of interfaces PROFINET: | 0 |
Number of HW-interfaces RS-232: | 0 |
Number of HW-interfaces RS-422: | 0 |
Number of HW-interfaces RS-485: | 1 |
Number of HW-interfaces serial TTY: | 0 |
Number of HW-interfaces USB: | 0 |
Number of HW-interfaces parallel: | 0 |
Number of HW-interfaces other: | 0 |
With optical interface: | no |
With PC connection: | yes |
Integrated breaking resistance: | yes |
4-quadrant operation possible: | yes |
Type of converter: | U converter |
Degree of protection (IP): | IP66 |
Degree of protection (NEMA): | 4X |
Height: | 257 mm |
Width: | 188 mm |
Depth: | 239.3 mm |
