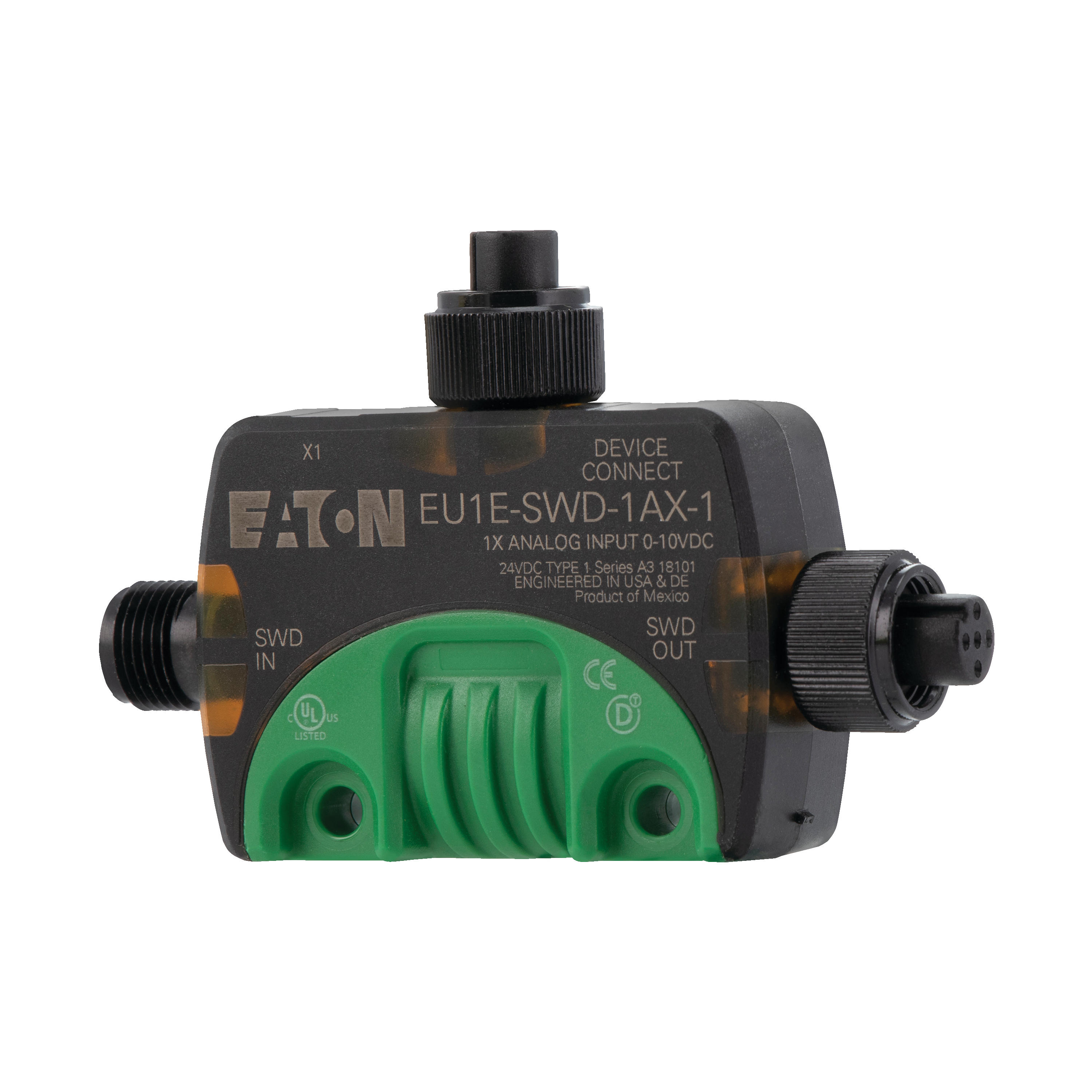

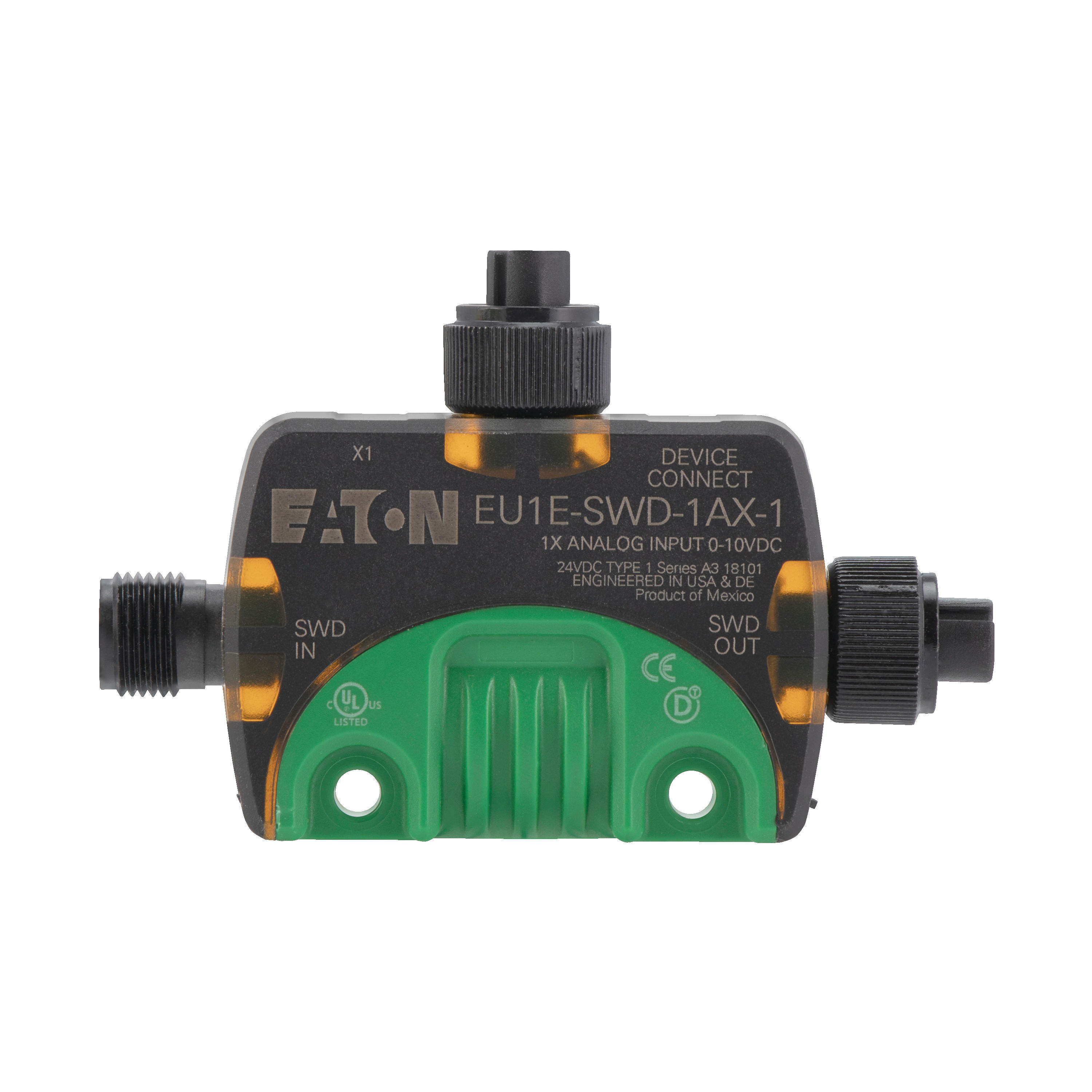

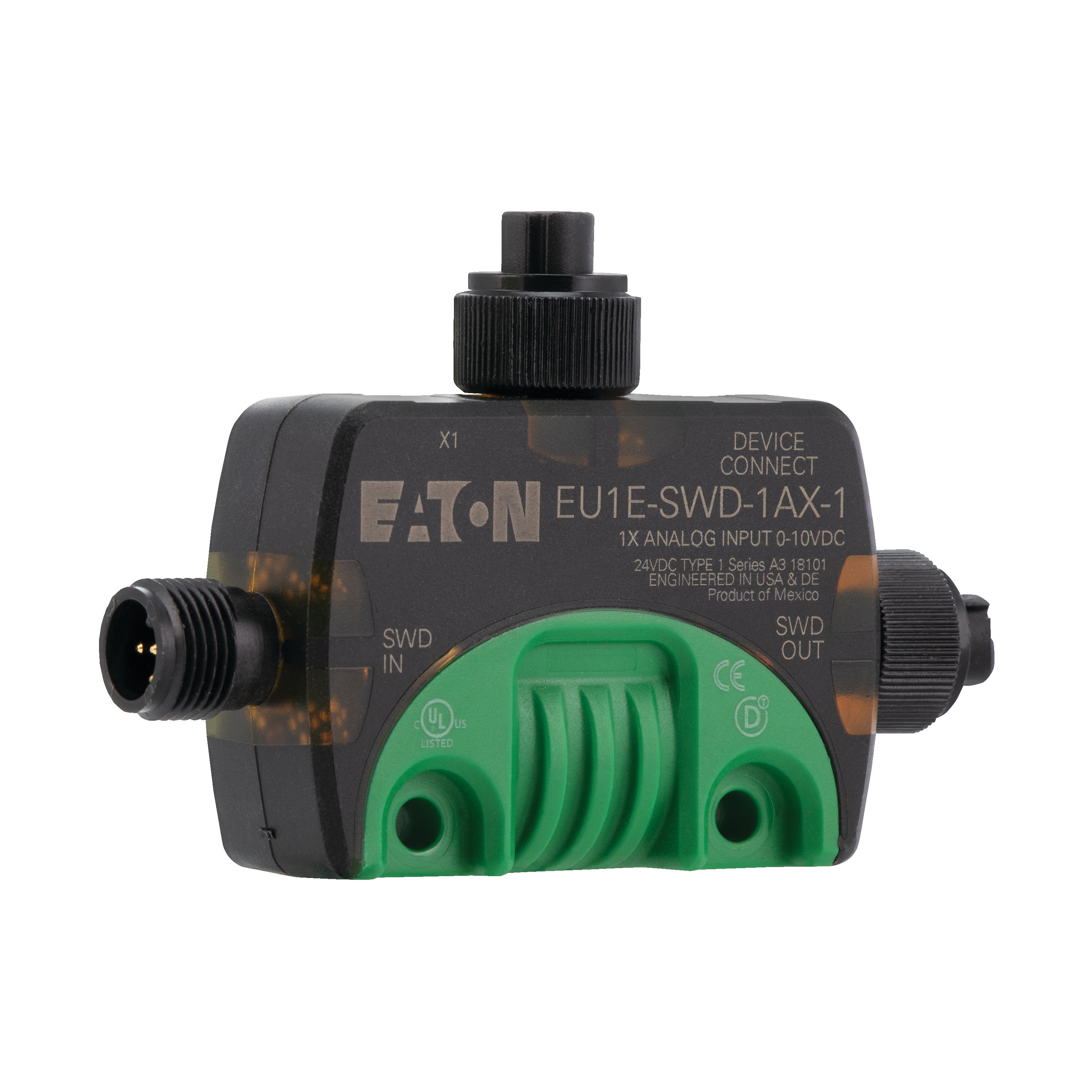

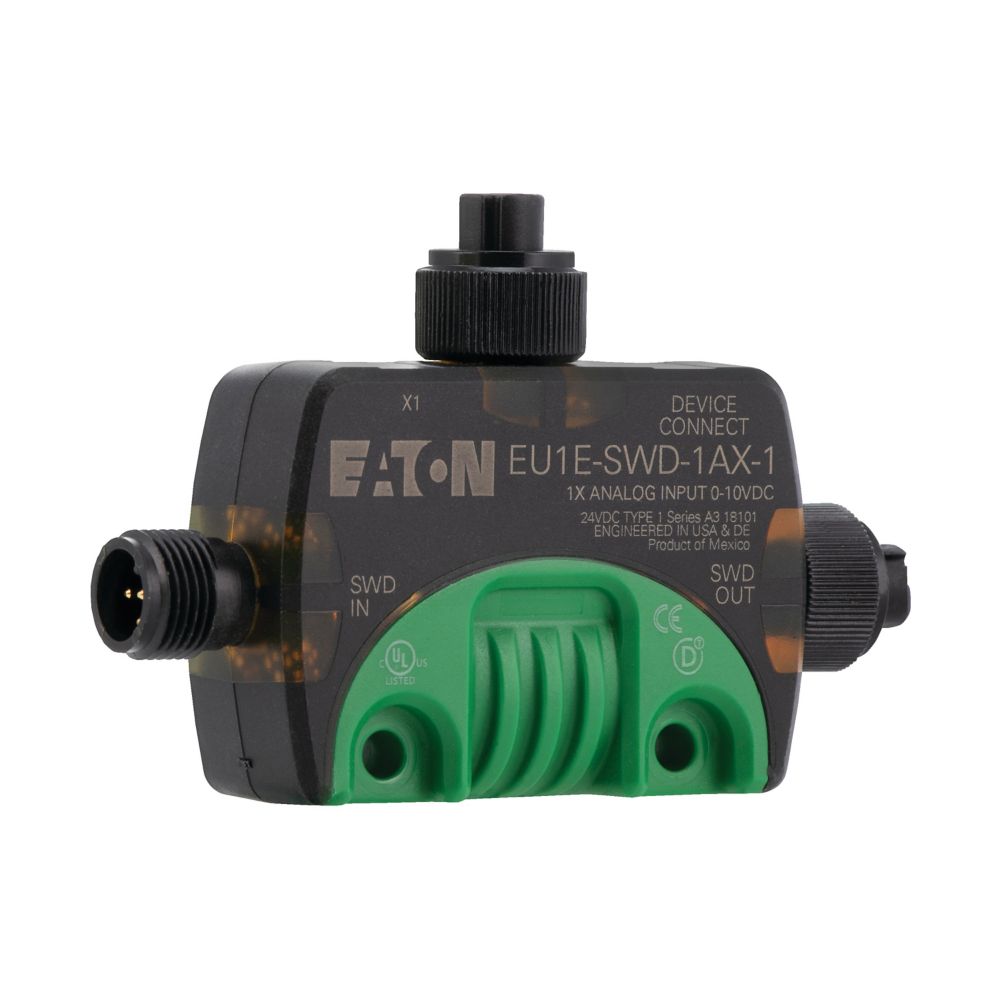

EU1E-SWD-1AX-1 Moduł IP67 - 1 we analog. 0..10V SmartWire-DT
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 174717 |
GTIN(EAN) | 4015081712038 |
Price unit | piece |
Catalog price | 702,21 zł (570,90 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 70 g |
ETIM class: | Fieldbus, decentr. periphery - analogue I/O module |
Supply voltage AC 50 Hz: | 0 - 0 V |
Supply voltage AC 60 Hz: | 0 - 0 V |
Supply voltage DC: | 0 - 0 V |
Voltage type (supply voltage): | DC |
Input, current: | no |
Input, voltage: | yes |
Input, resistor: | no |
Input, resistance thermometer: | no |
Input, thermocouple: | no |
Input signal, configurable: | yes |
Resolution of the analogue inputs: | 12 b |
Output, current: | no |
Output, voltage: | no |
Output signal configurable: | no |
Resolution of the analogue outputs: | 0 b |
Number of analogue inputs: | 1 |
Number of analogue outputs: | 0 |
Analogue inputs configurable: | yes |
Analogue outputs configurable: | yes |
Number of HW-interfaces industrial Ethernet: | 0 |
Number of interfaces PROFINET: | 0 |
Number of HW-interfaces RS-232: | 0 |
Number of HW-interfaces RS-422: | 0 |
Number of HW-interfaces RS-485: | 0 |
Number of HW-interfaces serial TTY: | 0 |
Number of HW-interfaces parallel: | 0 |
Number of HW-interfaces wireless: | 0 |
Number of HW-interfaces USB: | 0 |
Number of HW-interfaces other: | 0 |
Supporting protocol for TCP/IP: | no |
Supporting protocol for PROFIBUS: | no |
Supporting protocol for CAN: | no |
Supporting protocol for INTERBUS: | no |
Supporting protocol for ASI: | no |
Supporting protocol for KNX: | no |
Supporting protocol for Modbus: | no |
Supporting protocol for Data-Highway: | no |
Supporting protocol for DeviceNet: | no |
Supporting protocol for SUCONET: | no |
Supporting protocol for LON: | no |
Supporting protocol for PROFINET IO: | no |
Supporting protocol for PROFINET CBA: | no |
Supporting protocol for SERCOS: | no |
Supporting protocol for Foundation Fieldbus: | no |
Supporting protocol for EtherNet/IP: | no |
Supporting protocol for AS-Interface Safety at Work: | no |
Supporting protocol for DeviceNet Safety: | no |
Supporting protocol for INTERBUS-Safety: | no |
Supporting protocol for PROFIsafe: | no |
Supporting protocol for SafetyBUS p: | no |
Supporting protocol for other bus systems: | yes |
Radio standard Bluetooth: | no |
Radio standard WLAN 802.11: | no |
Radio standard GPRS: | no |
Radio standard GSM: | no |
Radio standard UMTS: | no |
IO link master: | no |
System accessory: | yes |
Degree of protection (IP): | IP69K |
Degree of protection (NEMA): | 4X |
Type of electric connection: | Screw connection |
Fieldbus connection over separate bus coupler possible: | yes |
Rail mounting possible: | yes |
Wall mounting/direct mounting: | yes |
Front built-in possible: | no |
Rack-assembly possible: | no |
Suitable for safety functions: | no |
SIL according to IEC 61508: | None |
Performance level according to EN ISO 13849-1: | None |
Appendant operation agent (Ex ia): | no |
Appendant operation agent (Ex ib): | no |
Explosion safety category for gas: | None |
Explosion safety category for dust: | None |
Width: | 56.9 mm |
Height: | 20.1 mm |
Depth: | 85.6 mm |
