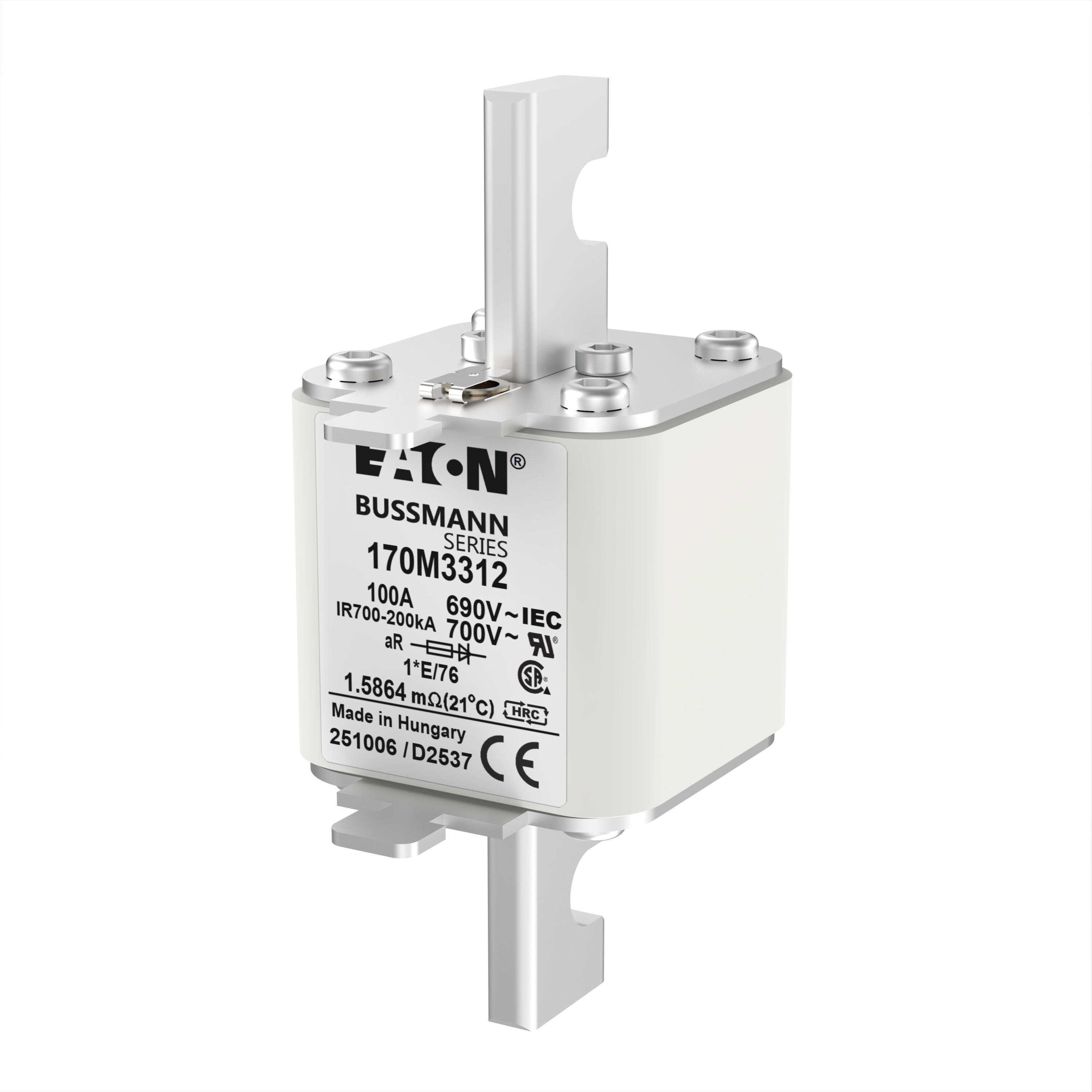

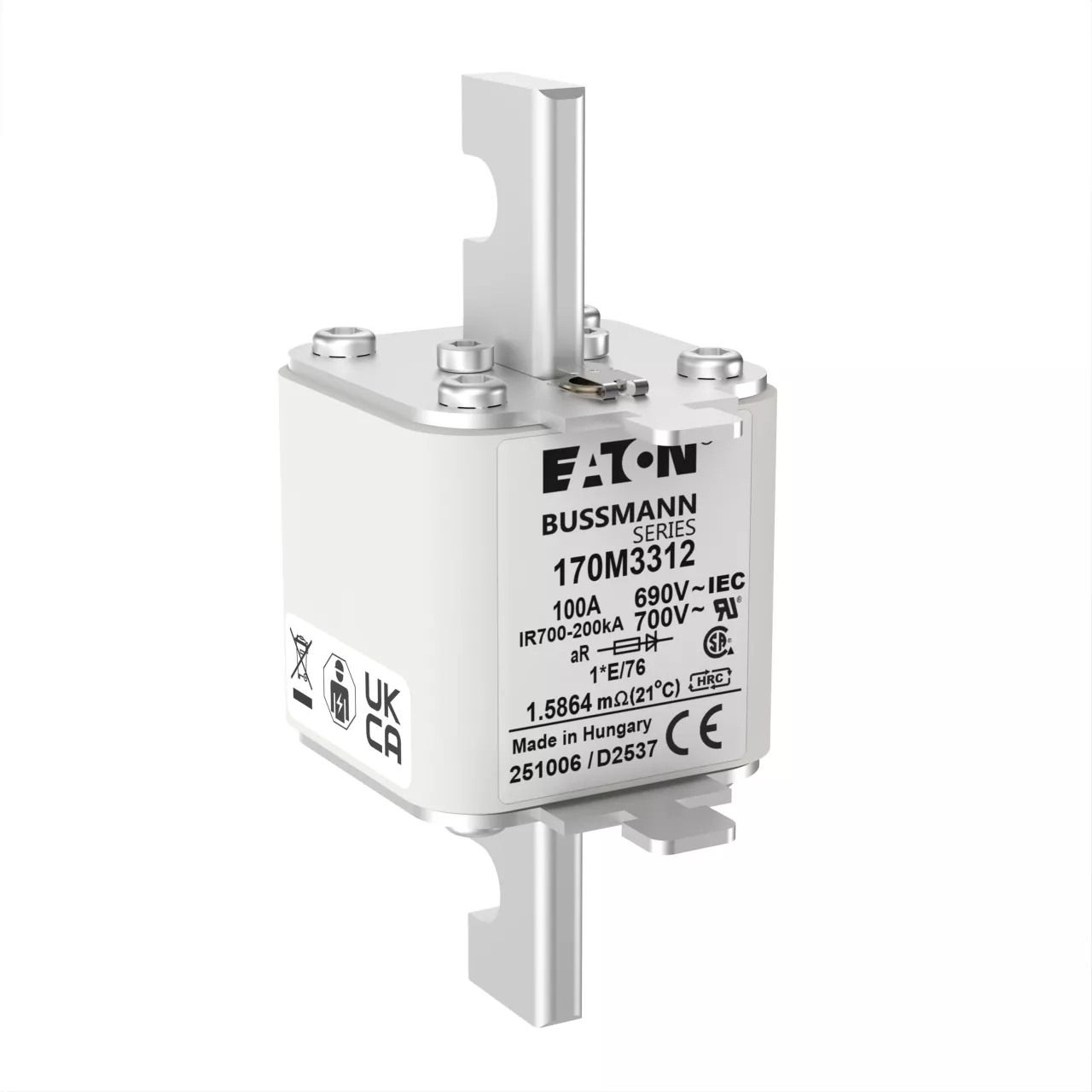

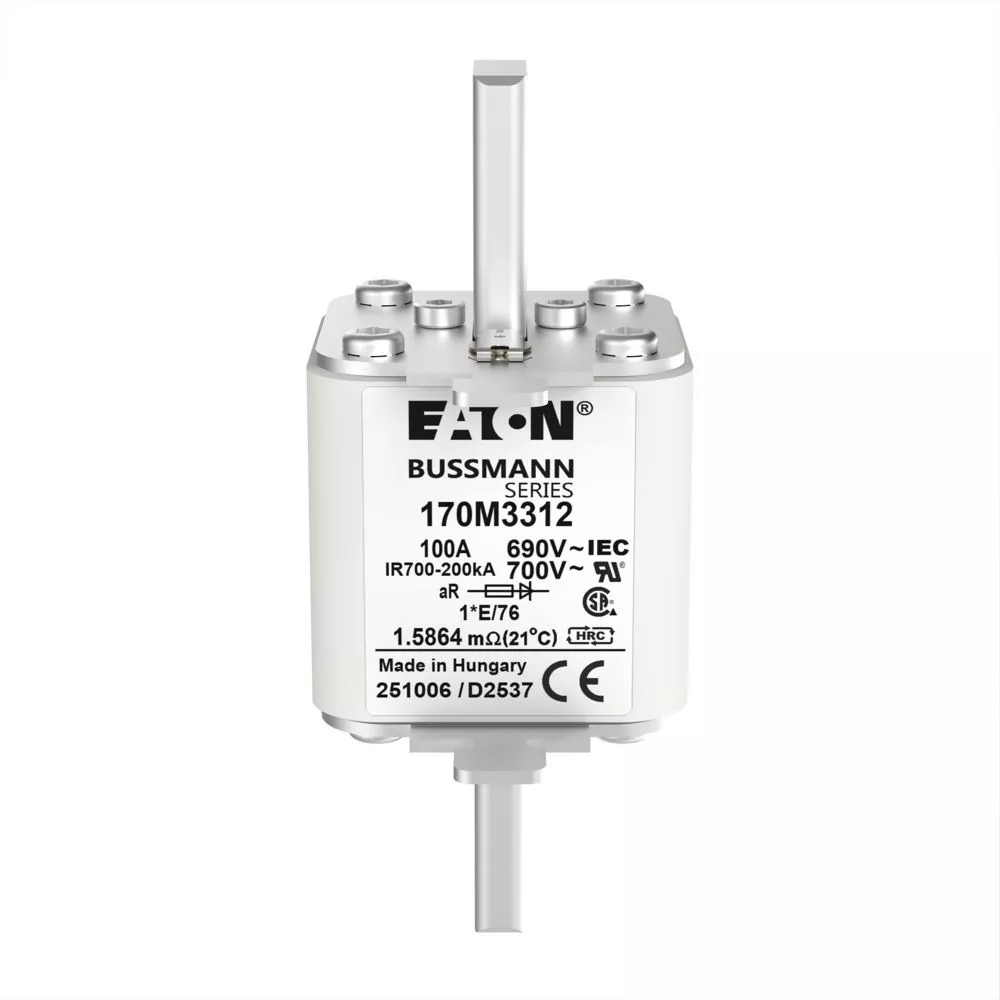

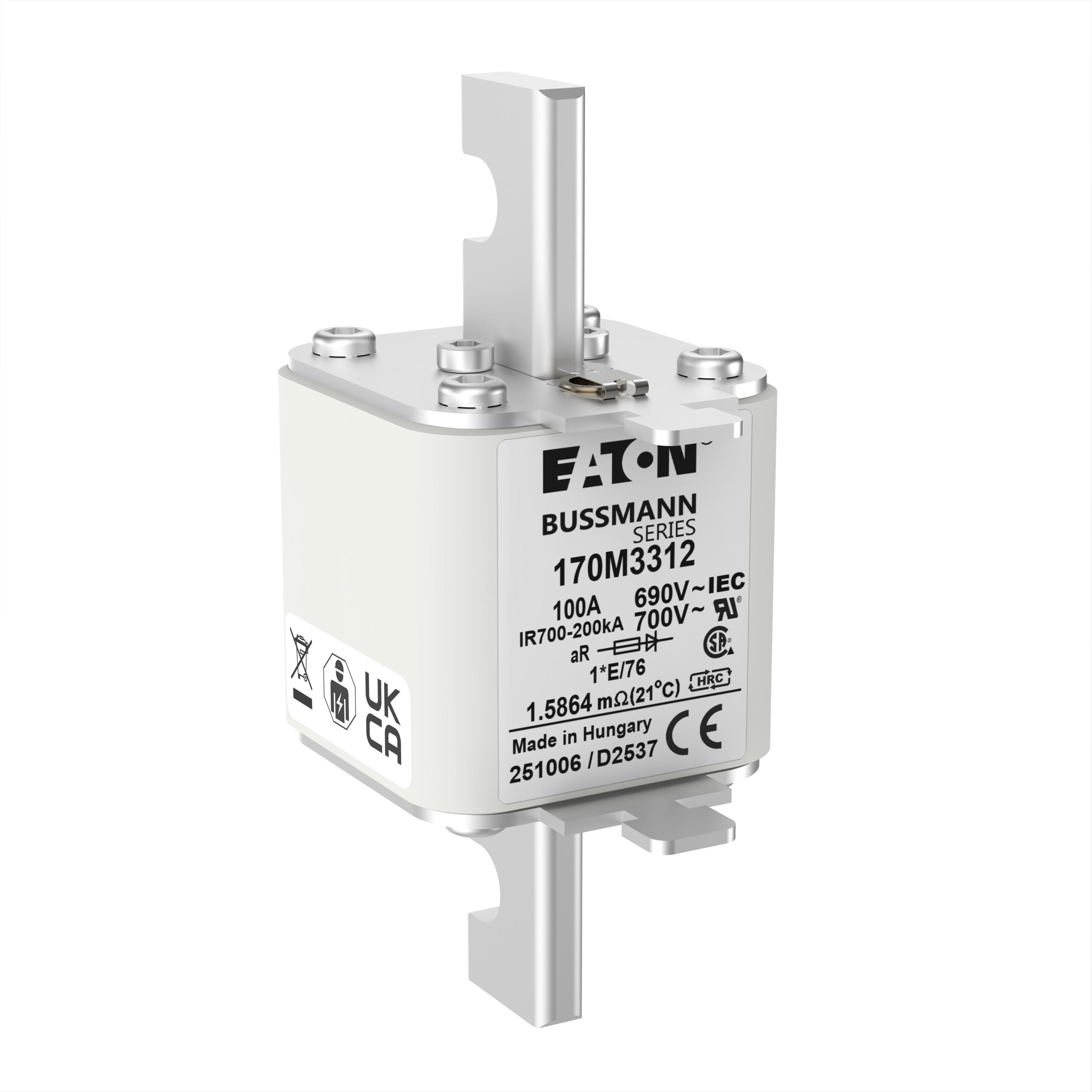

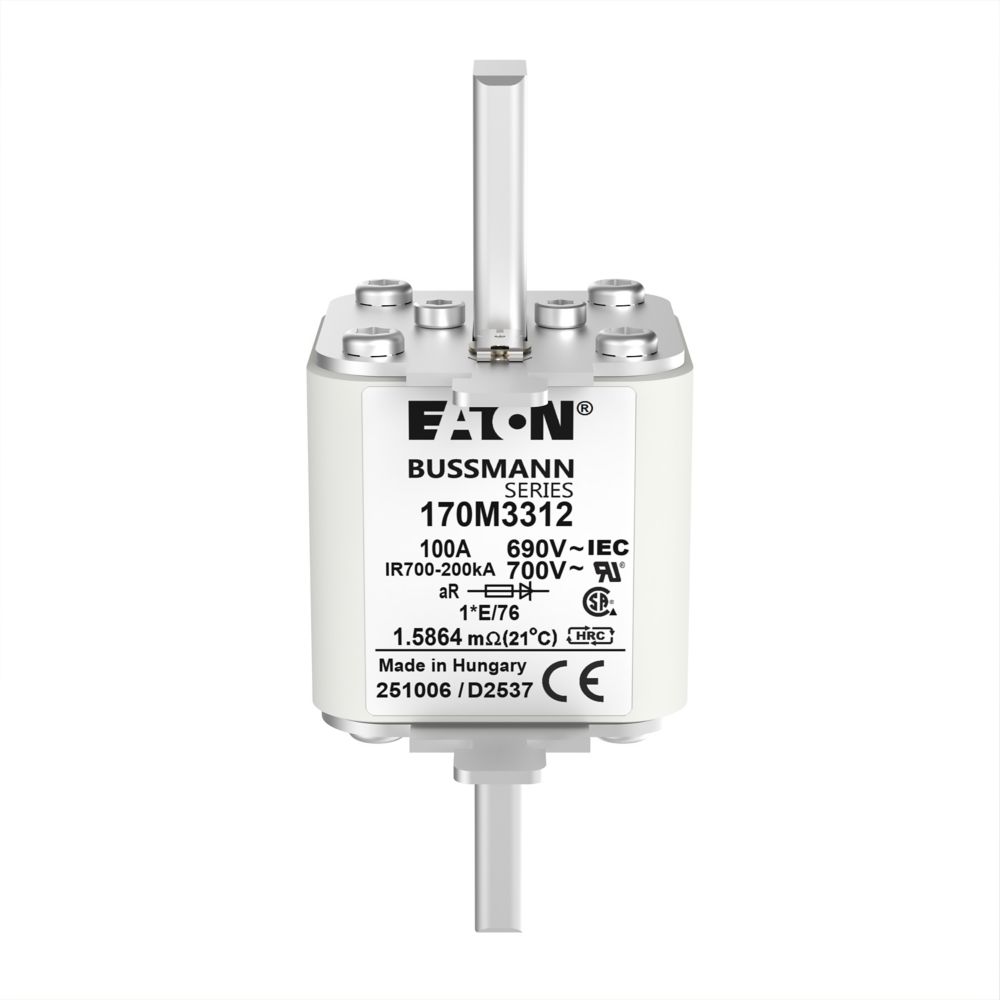

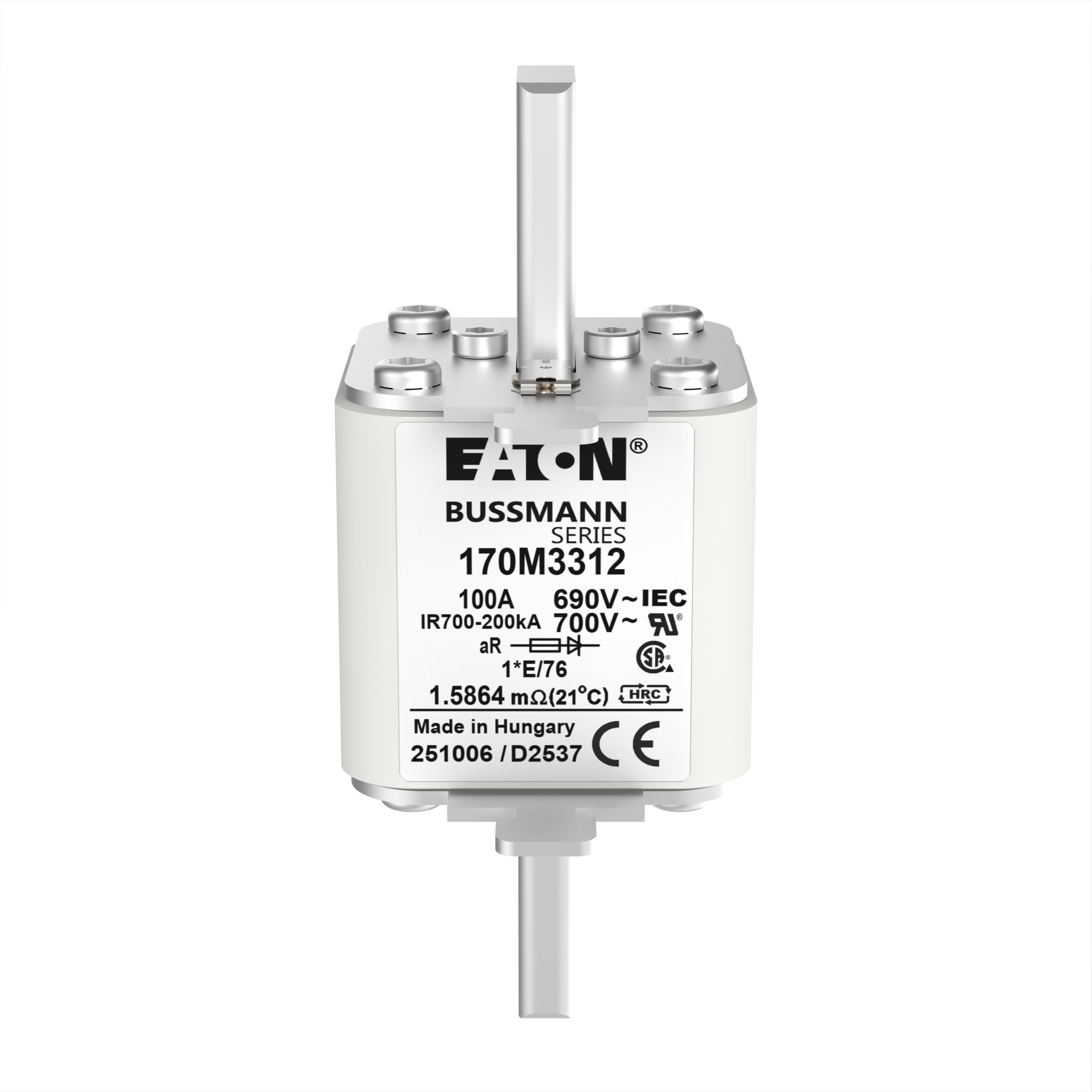

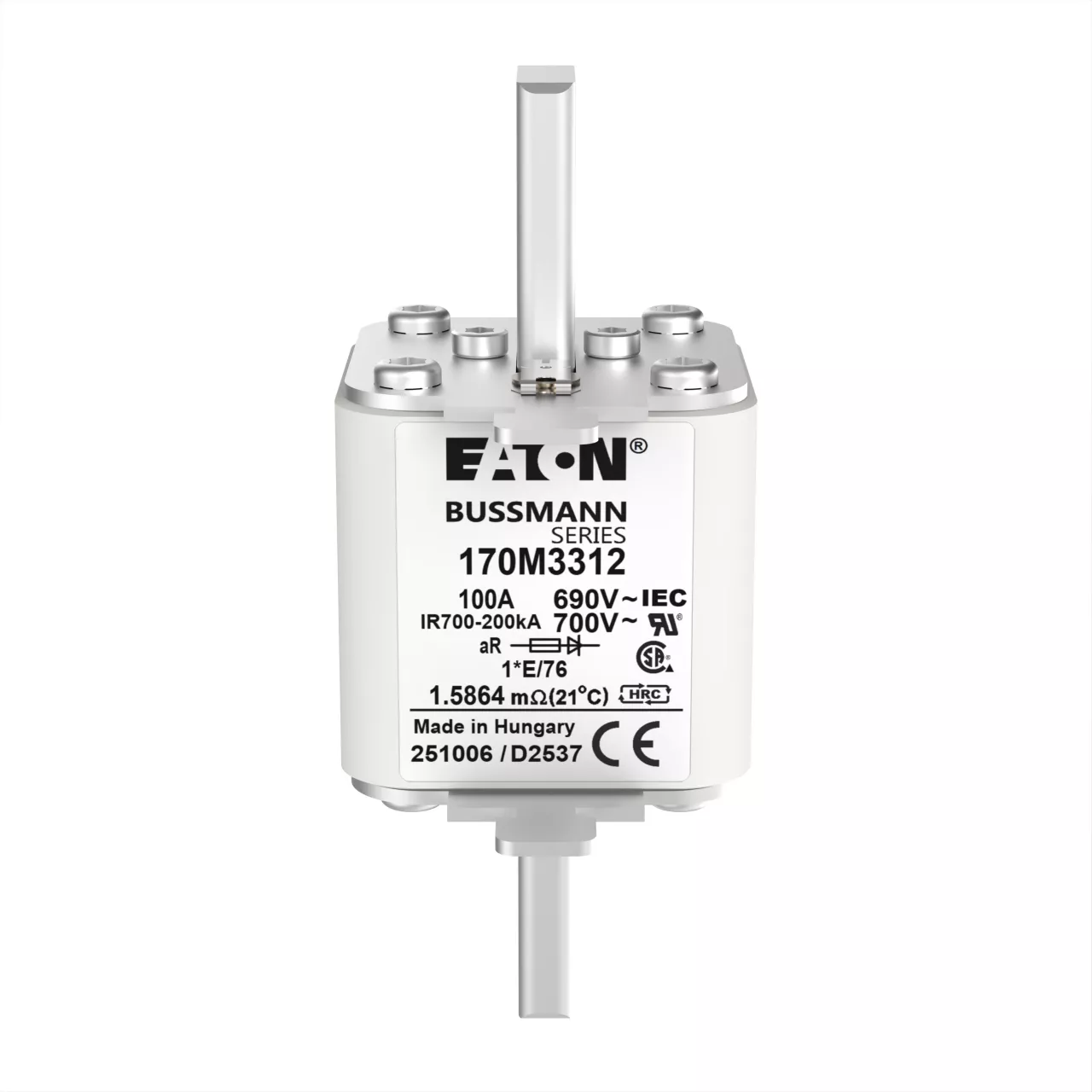

170M3312 Wkładka szybka, 100 A, AC 690 V, compact size 1, 45 x 59 x 102 mm, aR, IEC, UL, wskaźnik optyczny
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 170M3312 |
GTIN(EAN) | 5027590447089 |
Price unit | piece |
Catalog price | 792,49 zł (644,30 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 301 g |
ETIM class: | HRC fuse |
Fuse construction type according to IEC 60269: | Other |
Type of current: | AC |
Rated voltage AC: | 690 V |
Rated current: | 100 A |
Utilization category: | aR (accompanied semiconductor protection) |
Breaking capacity: | 200 kA |
Colour code: | None |
Type of fuse status indicator: | Top fuse status indicator |
Power loss at rated current: | 21 W |
Mounting holes: | M8 |
Centre-to-centre distance of connections: | 76 mm |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
