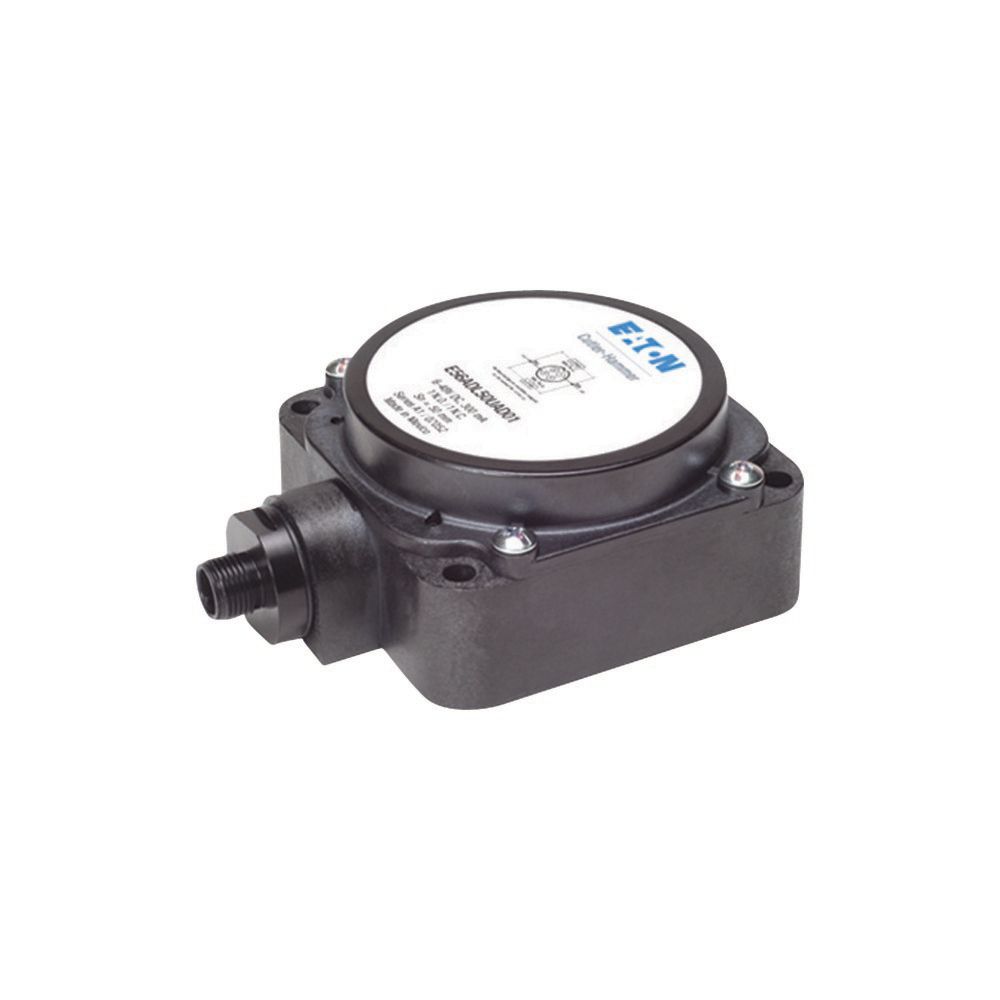

E56ADL40UAD01 Czujnik indukcyjny, zasilanie DC
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 136235 |
| GTIN(EAN) | 4015081330287 |
| Price unit | piece |
| Catalog price | 3 843,75 zł (3 125,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Näherungsschalter, Induktive Sensoren, Sortiment: E56 Pancake Series, Anschluss: 4-wire, Bauform (äußere Abmessungen): 79 x 79 x 39 mm, Bemessungsbetriebsspannung: Ue= 10 – 42 V DC, Bemessungsschaltabstand: Sn= 40 mm, Montageart: nicht bündig, Schaltart: NPN, PNP, Steckverbindung M12 x 1, Kontakte Ö = Öffner: 1 Ö, Kontakte S = Schließer: 1 S, Material: Kunststoff, Schutzart: IP67, Normen und Bestimmungen: IEC/EN 60947-5-2
Additional features:
| Information | Value |
|---|---|
| Net weight: | 450 g |
| Country of origin | Meksyk |
| ETIM class: | Inductive proximity switch |
| Width sensor: | 79 mm |
| Height of sensor: | 39 mm |
| Length of sensor: | 79 mm |
| Diameter sensor: | 0 mm |
| Mechanical mounting condition for sensor: | Not flat |
| Switching distance: | 40 mm |
| Suitable for safety functions: | no |
| Type of switch function: | Anticoincidence |
| Type of switching output: | NPN |
| Type of electric connection: | Plug-in connection |
| Number of semiconductor outputs with signalling function: | 1 |
| Number of contact energized outputs with signalling function: | 0 |
| Number of protected semiconductor outputs: | 0 |
| Number of protected contact energized outputs: | 0 |
| Type of actuation: | Metallic Target |
| Type of interface: | None |
| Type of interface for safety communication: | None |
| Construction type housing: | Cuboid |
| Coating housing: | Other |
| Cascadable: | no |
| SIL according to IEC 61508: | None |
| Performance level according to EN ISO 13849-1: | None |
| Max. output current at protected output: | 0 mA |
| Voltage type: | DC |
| Switching frequency: | 100 Hz |
| With monitoring function downstream switching devices: | no |
| Housing material: | Plastic |
| Compression-resistant: | no |
| Explosion safety category for gas: | None |
| Explosion safety category for dust: | None |
| Degree of protection (NEMA): | 4X, 6, 13 |
