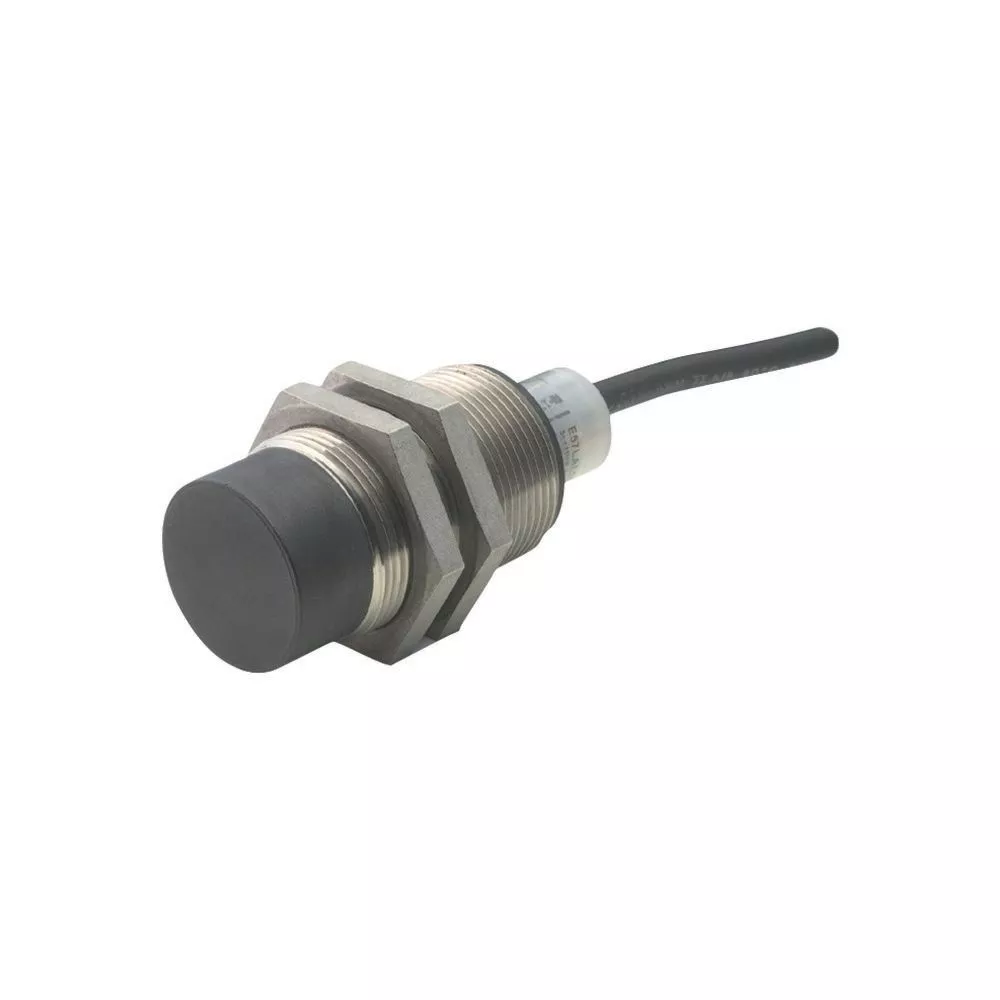

E57-30LE22-C Czujnik indukcyjny, zasilanie DC
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 135991 |
| GTIN(EAN) | 4015081327843 |
| Price unit | piece |
| Catalog price | 1 904,04 zł (1 548,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Czujnik zbliżeniowy, Czujniki indukcyjne, Zacisk śrubowy: E57 Premium+ series, Połączenie: Trzyżyłowe, Konstrukcja (zewnętrzne wymiary): M30 x 1 mm, Znamionowe napięcie robocze: Ue= 6 - 48 V DC, Znamionowa odległość przełączania: Sn = 22 mm, Sposób montażu: Półekranowany, Typ łączenia: NPN, 2-metrowy kabel połączeniowy, Zestyki Z = zwierne: 1 Z, Materiał: Stal nierdzewna, Stopień ochrony: IP67, Normy: IEC/EN 60947-5-2
Additional features:
| Information | Value |
|---|---|
| Net weight: | 250 g |
| Country of origin | Meksyk |
| ETIM class: | Inductive proximity switch |
| Width sensor: | 0 mm |
| Height of sensor: | 0 mm |
| Length of sensor: | 67,8 mm |
| Diameter sensor: | 30 mm |
| Mechanical mounting condition for sensor: | Not flat |
| Switching distance: | 22 mm |
| Suitable for safety functions: | no |
| Type of switch function: | Normally open contact |
| Type of switching output: | NPN |
| Type of electric connection: | Cable |
| Number of semiconductor outputs with signalling function: | 1 |
| Number of contact energized outputs with signalling function: | 0 |
| Number of protected semiconductor outputs: | 0 |
| Number of protected contact energized outputs: | 0 |
| Type of actuation: | Metallic Target |
| Type of interface: | None |
| Type of interface for safety communication: | None |
| Construction type housing: | Cylinder, screw-thread |
| Coating housing: | Other |
| Cascadable: | no |
| SIL according to IEC 61508: | None |
| Performance level according to EN ISO 13849-1: | None |
| Max. output current at protected output: | 0 mA |
| Voltage type: | DC |
| Switching frequency: | 300 Hz |
| With monitoring function downstream switching devices: | no |
| Housing material: | Metal |
| Compression-resistant: | no |
| Explosion safety category for gas: | None |
| Explosion safety category for dust: | None |
| Degree of protection (NEMA): | 4X, 6, 13 |
