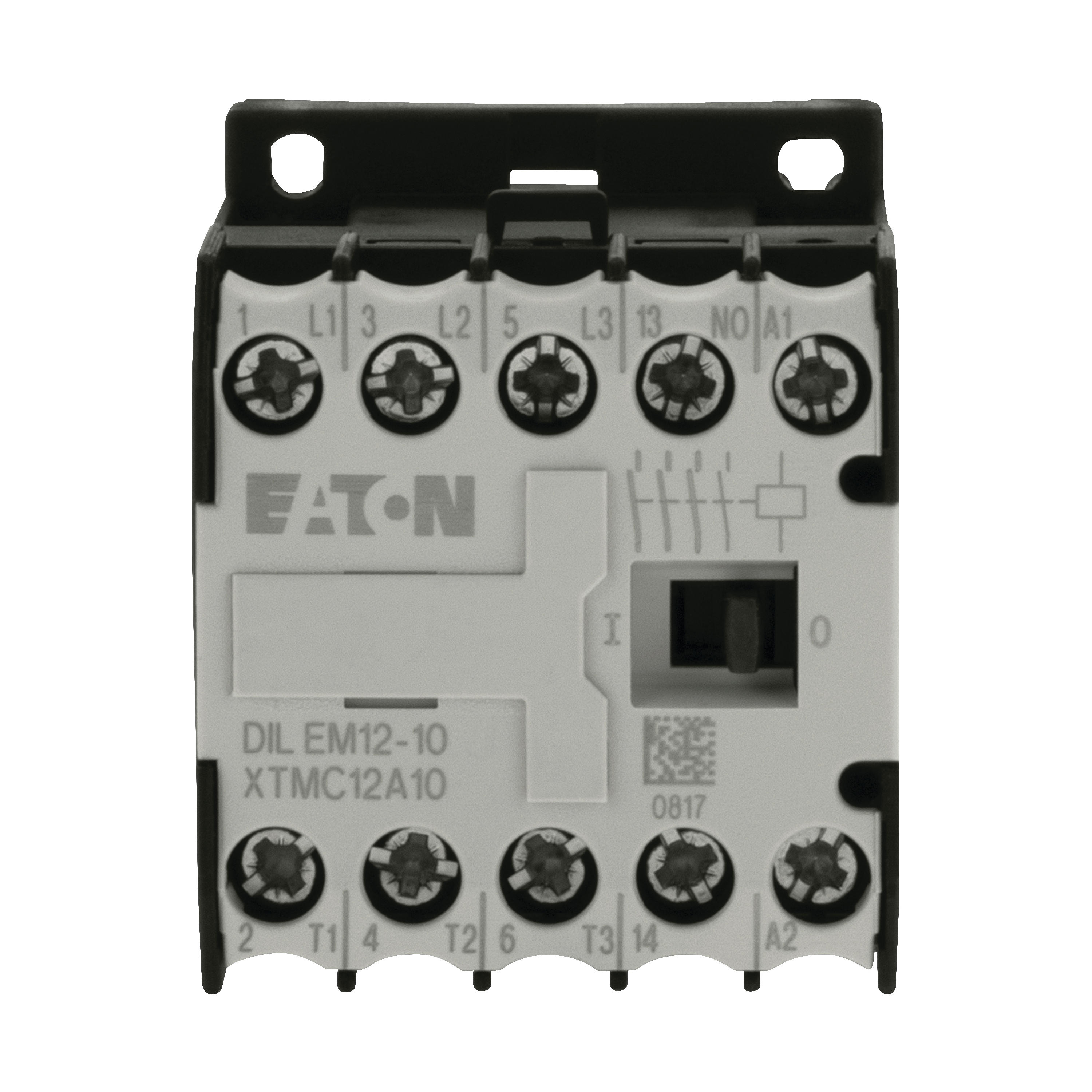

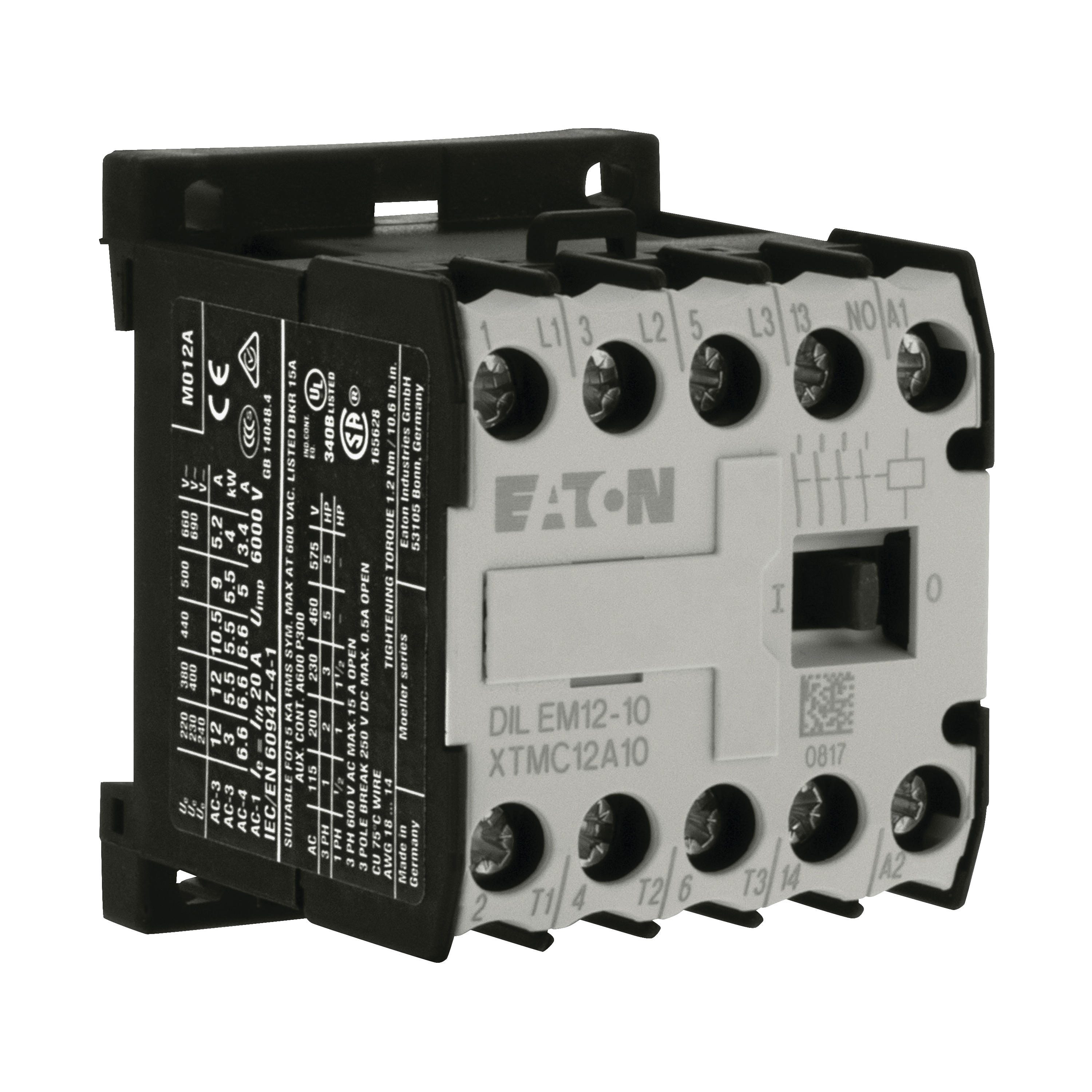

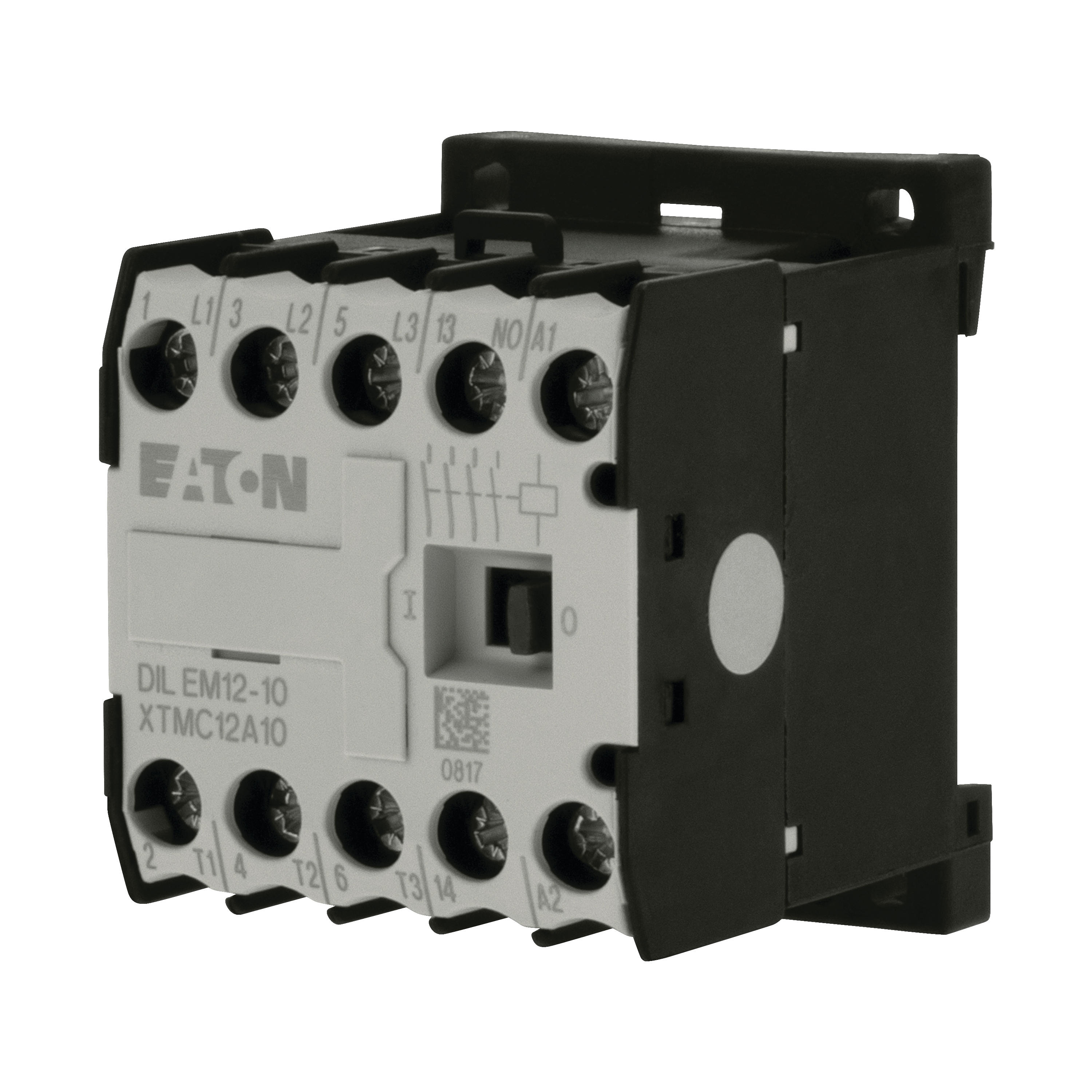

DILEM12-10(230V50HZ,240V60HZ) Stycznik mocy miniaturowy 12 A/5,5 kW A
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 127075 |
GTIN(EAN) | 4015081246106 |
Price unit | piece |
Catalog price | 291,51 zł (237,00 zł + 23% VAT) |
Sale price | from 136,42 zł / szt. (110,91 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Leistungsschütz, Anwendung: Leistungsschütze für Motoren, Kleinschütze für Motoren und ohmsche Lasten, Leistungsschütze DILEM, Gebrauchskategorie: AC-1: Nicht oder leicht induktive Lasten, Widerstandsöfen, NAC-3: Käfigläufermotoren: anlassen, während Betrieb ausschalten, AC-4: Käfigläufermotoren: anlassen, Einstecken, reversieren, Tippen, Anschlusstechnik: Schraubklemmen, Beschreibung: Mit Hilfskontakt, Anzahl der Pole: 3-polig, Bemessungsbetriebsstrom AC-3, 380 V, 400 V: Ie= 12 A, Bemessungsbetriebsstrom AC-1 konventioneller thermischer Strom, 3-polig, 50 - 60 Hz Offen bei 40 °C: Ith =Ie= 22 A, gekapselt: Ith = 16 A
Additional features:
Information | Value |
---|---|
Net weight: | 170 g |
Country of origin | Niemcy |
ETIM class: | Power contactor, AC switching |
Voltage type for actuating: | AC |
Rated operation current Ie at AC-1, 400 V: | 22 A |
Rated operation current Ie at AC-3, 400 V: | 12 A |
Rated operation power at AC-3, 400 V: | 5,5 kW |
Rated operation current Ie at AC-4, 400 V: | 6,6 A |
Rated operation power at AC-4, 400 V: | 3 kW |
Rated operation power NEMA: | 3,7 kW |
Modular version: | no |
Number of auxiliary contacts as normally open contact: | 1 |
Number of auxiliary contacts as normally closed contact: | 0 |
Type of electrical connection of main circuit: | Screw connection |
Number of normally closed contacts as main contact: | 0 |
Number of normally open contacts as main contact: | 3 |
Width: | 45 mm |
Height: | 58 mm |
Depth: | 52 mm |
