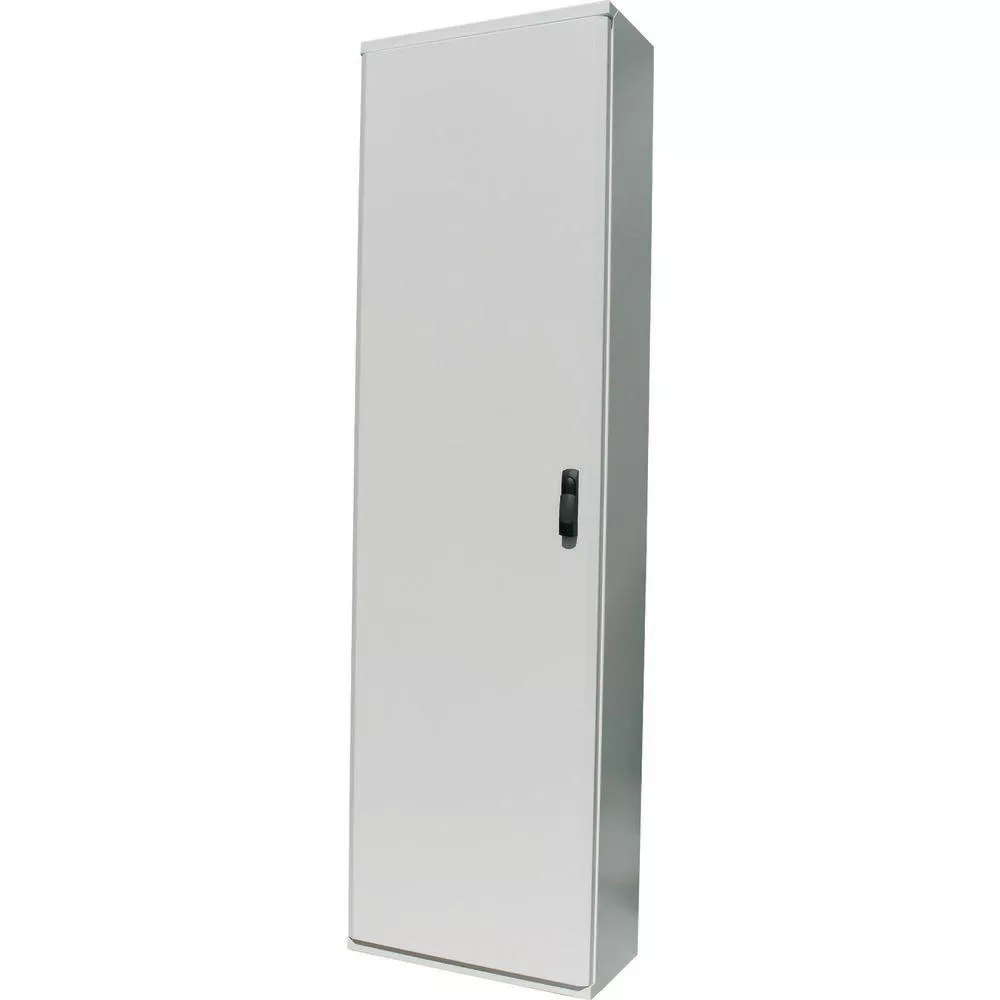

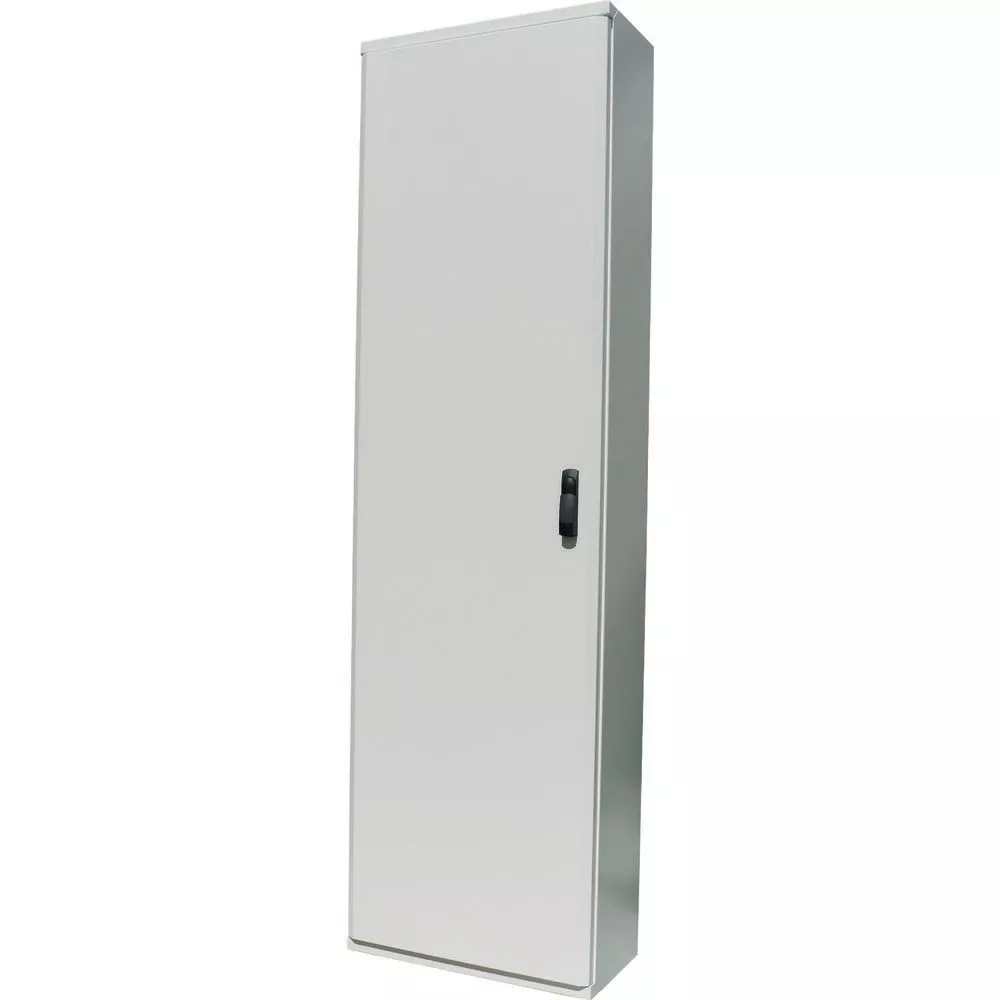

BP-F-400/20/3-P Szafa stojąca IP 30, zamykana dźwignią
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 102356 |
| GTIN(EAN) | 4015081022441 |
| Price unit | piece |
| Catalog price | 4 686,30 zł (3 810,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
rozdzielnica wolnostojąca z obrotową dźwignią blokującą, IP30, kolor szary, RAL 7035, szerokość 400 mm, wysokość zewnętrzna 2060 mm, wysokość zabudowy 1950 mm, głębokość 300 mm, w tym zaciski kablowe na górze i na dole, metalowe drzwi z dźwignią obrotową, drzwi mogą być prawostronne lub lewostronne, jeśli używana jest konfiguracja montażu MSW, dodatkowo wymagane będą 2 pary wsporników narożnych BPZ-CTS-S i 1 element zatrzaskowy BPZ-SNAP-MSW-CTS, jeśli używana jest konfiguracja pojedynczych elementów obudowy, dodatkowo wymagane będą 2 wsporniki osłon BPZ-FPS
Additional features:
| Information | Value |
|---|---|
| Net weight: | 37 kg |
| Country of origin | Czechy |
| ETIM class: | Enclosure/cabinet (empty) |
| Colour: | Grey |
| Width: | 415 mm |
| Height: | 2 080 mm |
| Depth: | 315 mm |
| RAL-number: | 7 035 |
| With mounting plate: | no |
| Number of doors: | 1 |
| Number of locks: | 0 |
| Suitable for wall mounting: | no |
| Pre-stamping: | no |
| EMC-version: | yes |
| With glazed door: | no |
| Couplable: | no |
| Material quality: | Other |
| Material: | Steel |
| Impact strength: | IK08 |
| Degree of protection (IP): | IP30 |
| Number of connector holes: | 0 |
| Suitable for outdoor set-up: | no |
| Suitable for metrical mounting: | yes |
| Mounting plate depth-adjustable: | yes |
| With ventilation door: | no |
| Surface finishing: | Powder coating |
| With rear door: | no |
| Suitable for wall built-in: | no |
| With cover: | no |
| With door: | yes |
| Pitched roof: | no |
| Pole fastening: | no |
| Transparent cover: | no |
| Degree of protection (NEMA): | Other |
| Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890: | 0 W |
| Max. permissible load of the enclosure according to IEC 62208: | 0 N |
| Max. permissible load of the door(s) according to IEC 62208: | 0 N |
| Max. permissible load of the mounting plate according to IEC 62208: | 0 N |
| Floor standing wall model: | no |
| Freestanding: | yes |
| Corner model: | no |
| Intermediate mounting: | no |
