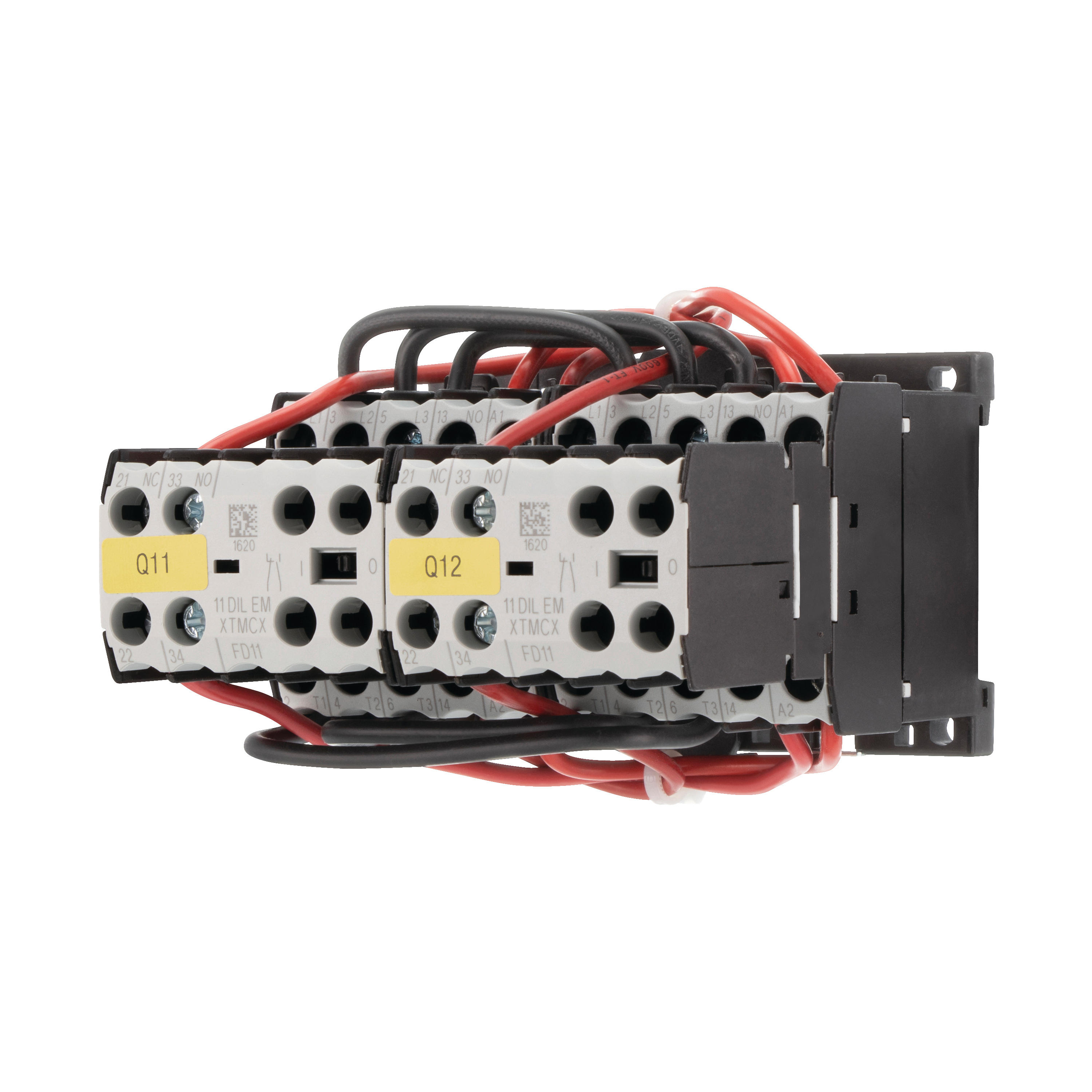

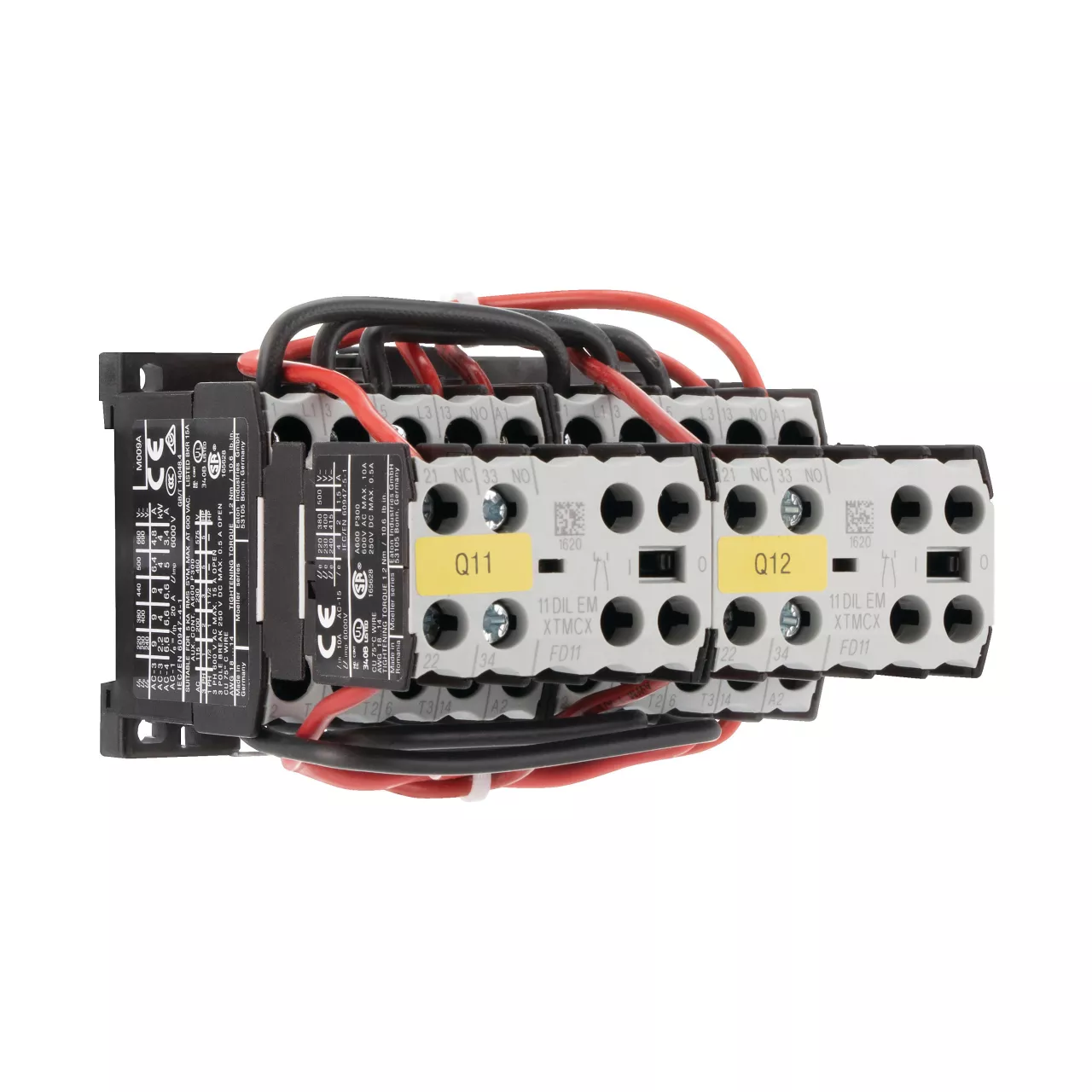

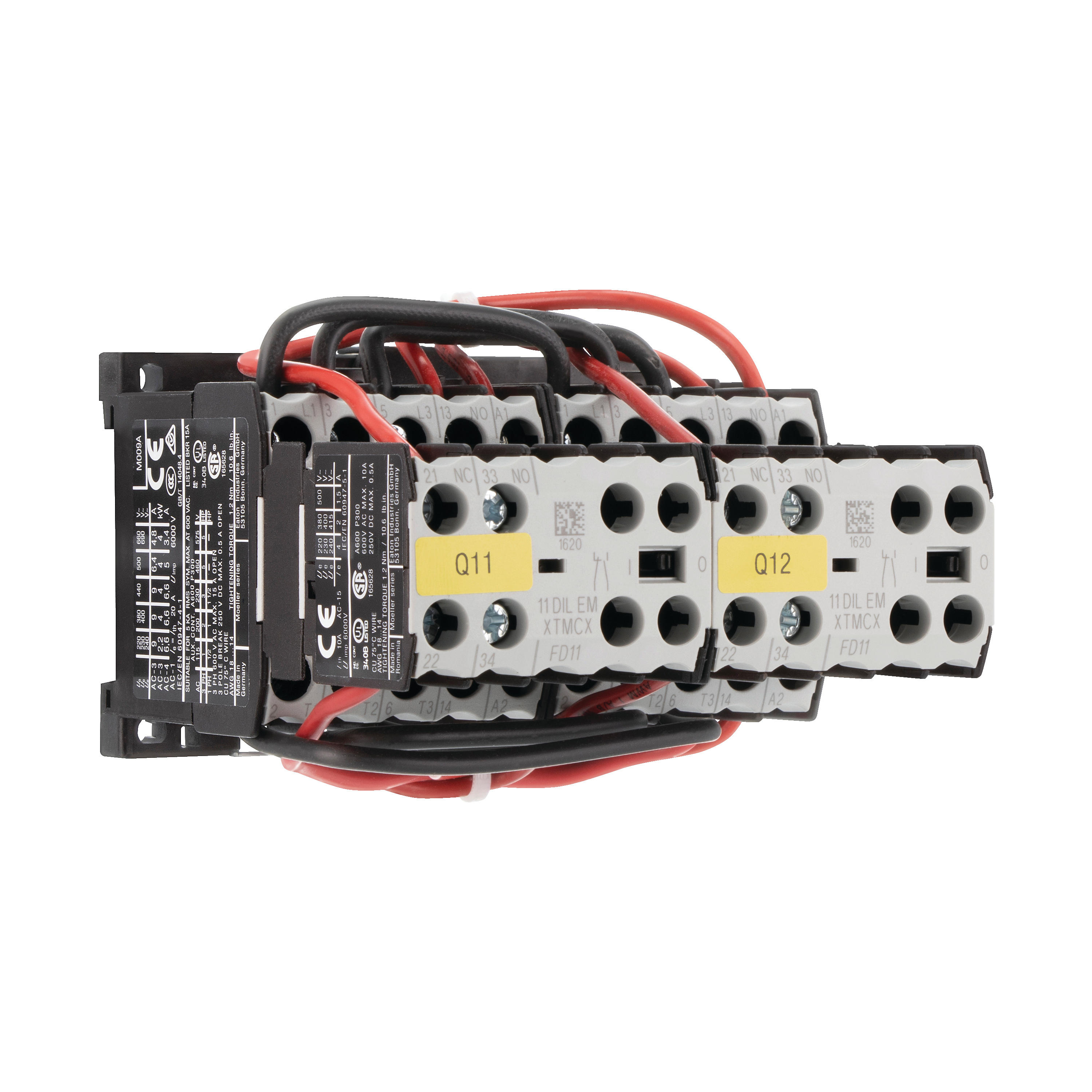

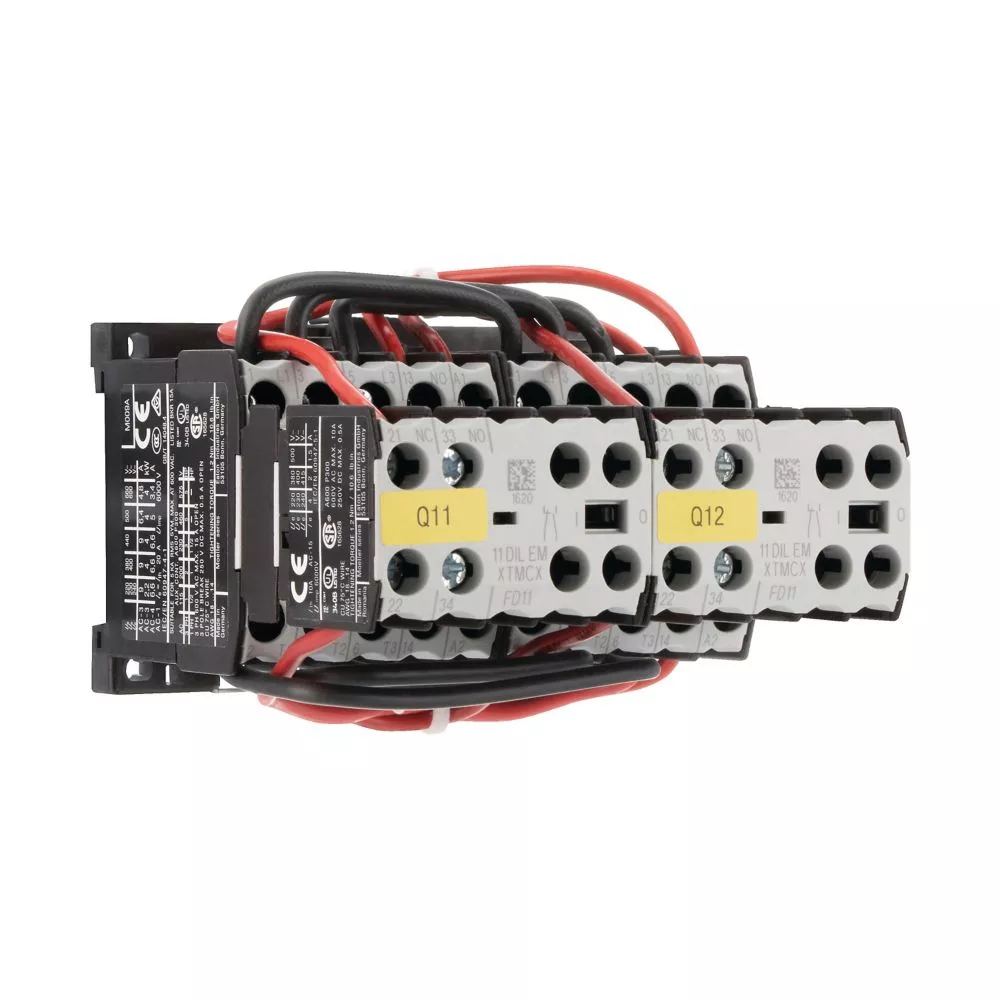

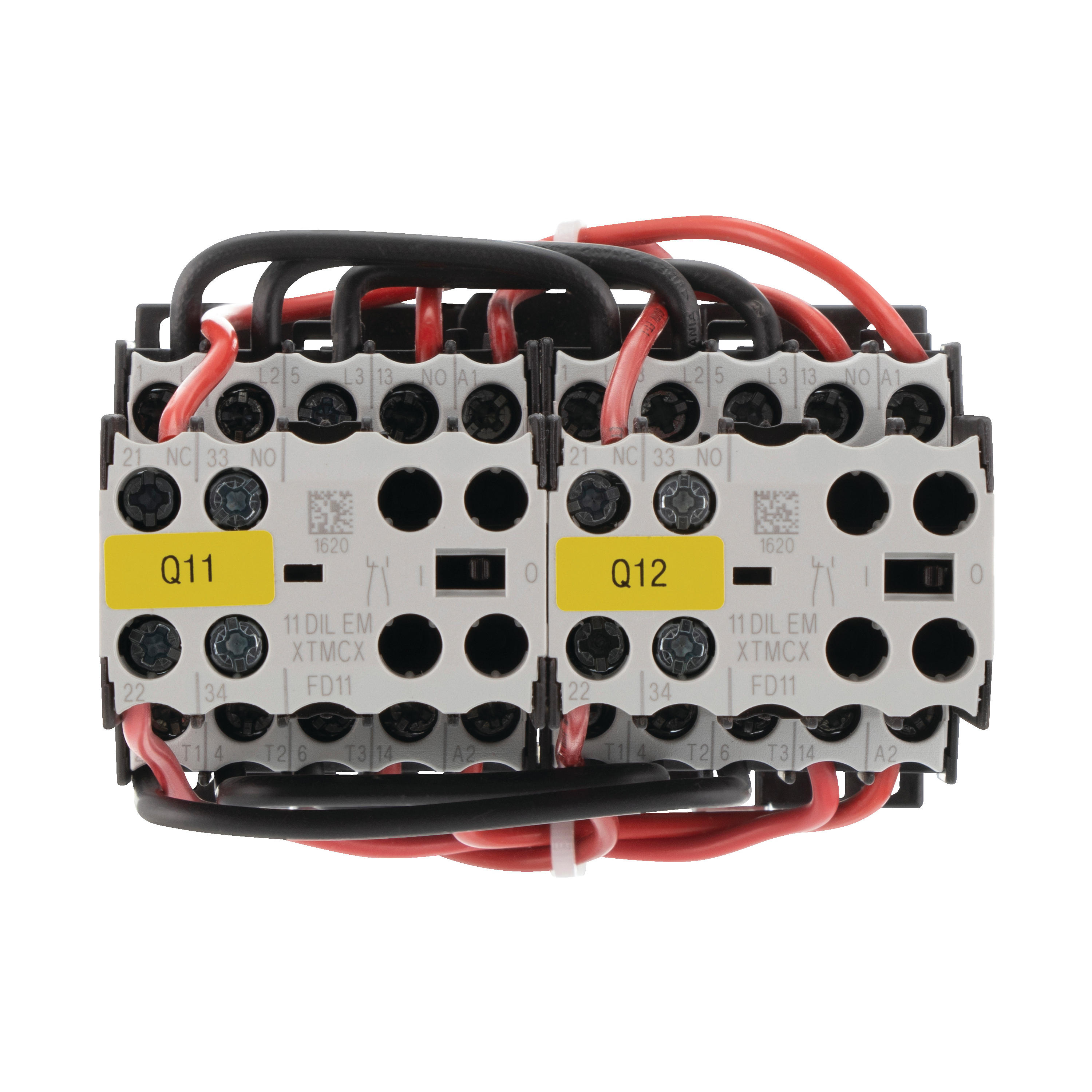

DIULEM/21/MV(230V50HZ,240V60HZ) Zestaw nawrotny 4kW [AC-3] 400V
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 051849 |
GTIN(EAN) | 4015080518495 |
Price unit | piece |
Catalog price | 679,45 zł (552,40 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Kombinacja styczników nawrotnych z kompletnym okablowaniem
Additional features:
Information | Value |
---|---|
Net weight: | 449 g |
ETIM class: | Combination of contactors |
Function: | Reversing contactor |
Rated control supply voltage AC 50 Hz: | 230 - 230 V |
Rated control supply voltage AC 60 Hz: | 240 - 240 V |
Rated control supply voltage DC: | 0 - 0 V |
Voltage type for actuating: | AC |
Rated operation current Ie at AC-1, 400 V: | 9 A |
Rated operation current Ie at AC-3, 400 V: | 9 A |
Rated operation power at AC-3, 400 V: | 4 kW |
Rated operation power NEMA: | 3.7 kW |
Number of normally closed contacts as main contact: | 0 |
Number of normally open contacts as main contact: | 6 |
Type of electrical connection of main circuit: | Screw connection |
Degree of protection (IP): | IP20 |
Rail mounting possible: | no |
Type of electrical connection for auxiliary- and control current circuit: | Screw connection |
Degree of protection (NEMA): | Other |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Przedsiębiorstwo Wielobranżowe „ELEKTRO-HURT” Aleksander Winter Sp. z o.o.
Gniezno,
ul. Słoneczna 40a
Distance:
Firma Handlowo-Usługowa "LUX-SYSTEM" S.M. Stanek, J.E. Poniedziałek Sp.j.
Szaflary,
ul. Zakopiańska 18
Distance:
Firma Handlowa "ELEKTRET" Spółka komandytowa Jacek Bieda, Agata Mól
Limanowa,
ul. Tarnowska 9D
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-04-15 00:03:09 |
Files to download: |
|
External links: |
