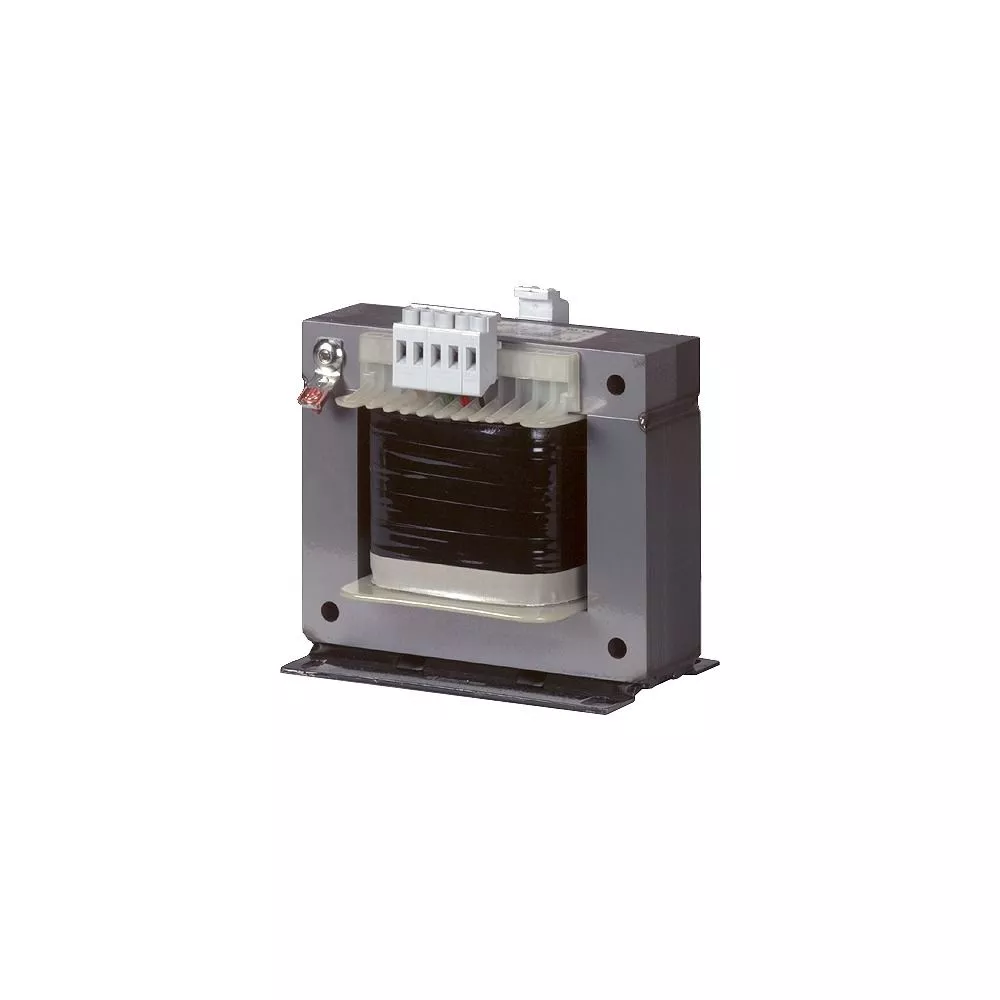

STI0,16(400/24) Transformator sterujący 160VA
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 046634 |
| GTIN(EAN) | 4015080466345 |
| Price unit | piece |
| Catalog price | 1 214,99 zł (987,80 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Transformator wykonany zgodnie z normą IEC/EN 61558-2-2, VDE 0570 część 1 i część 2-2+6+4, UL 506, CSA 22.2 No.66, ÖVE, zaczepy +- 5%, stopień ochrony IP00, 100% ED Zastosowanie jako transformator zabezpieczający lub rozłączający
Additional features:
| Information | Value |
|---|---|
| Net weight: | 2,446 kg |
| ETIM class: | One-phase control transformer |
| Built as safety transformer: | yes |
| Built as isolating transformer: | yes |
| Built as energy saving transformer: | no |
| Primary voltage 1: | 400 - 400 V |
| Primary voltage 2: | 0 - 0 V |
| Primary voltage 3: | 0 - 0 V |
| Primary voltage 4: | 0 - 0 V |
| Primary voltage 5: | 0 - 0 V |
| Primary voltage 6: | 0 - 0 V |
| Primary voltage 7: | 0 - 0 V |
| Primary voltage 8: | 0 - 0 V |
| Primary voltage 9: | 0 - 0 V |
| Primary voltage 10: | 0 - 0 V |
| Secondary voltage 1: | 24 - 24 V |
| Secondary voltage 2: | 0 - 0 V |
| Secondary voltage 3: | 0 - 0 V |
| Secondary voltage 4: | 0 - 0 V |
| Secondary voltage 5: | 0 - 0 V |
| Secondary voltage 6: | 0 - 0 V |
| Secondary voltage 7: | 0 - 0 V |
| Secondary voltage 8: | 0 - 0 V |
| Secondary voltage 9: | 0 - 0 V |
| Secondary voltage 10: | 0 - 0 V |
| Rated apparent power: | 160 VA |
| Type of insulation material according to IEC 85: | B |
| Short-circuit-proof: | no |
| Relative short circuit voltage: | 6.6 % |
| Width: | 85 mm |
| Height: | 91 mm |
| Depth: | 97 mm |
| Degree of protection (IP): | IP00 |
| Ring core: | no |
| Suitable for mounting on PCB: | no |
| Modular version: | no |
| Conductor material: | Copper |
