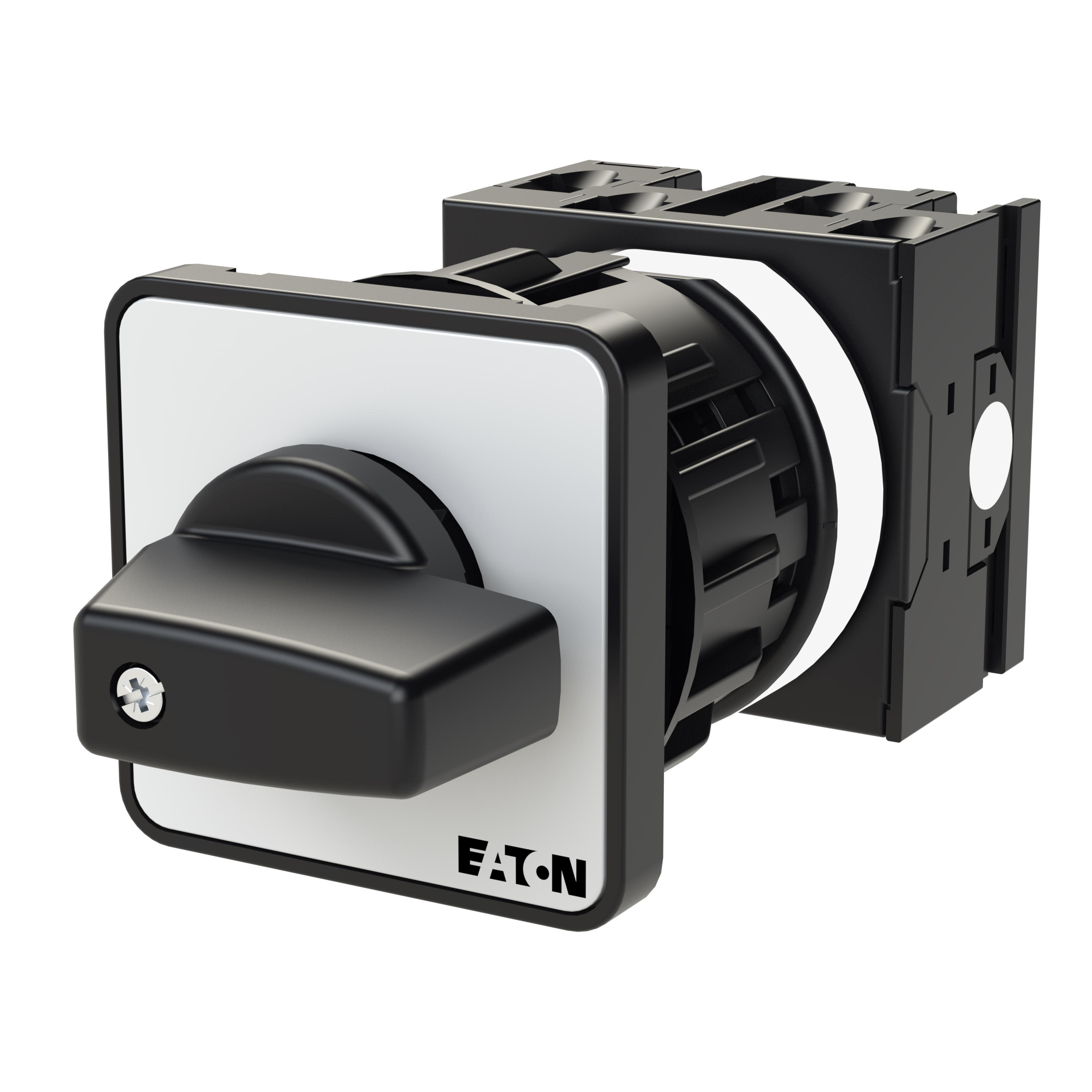

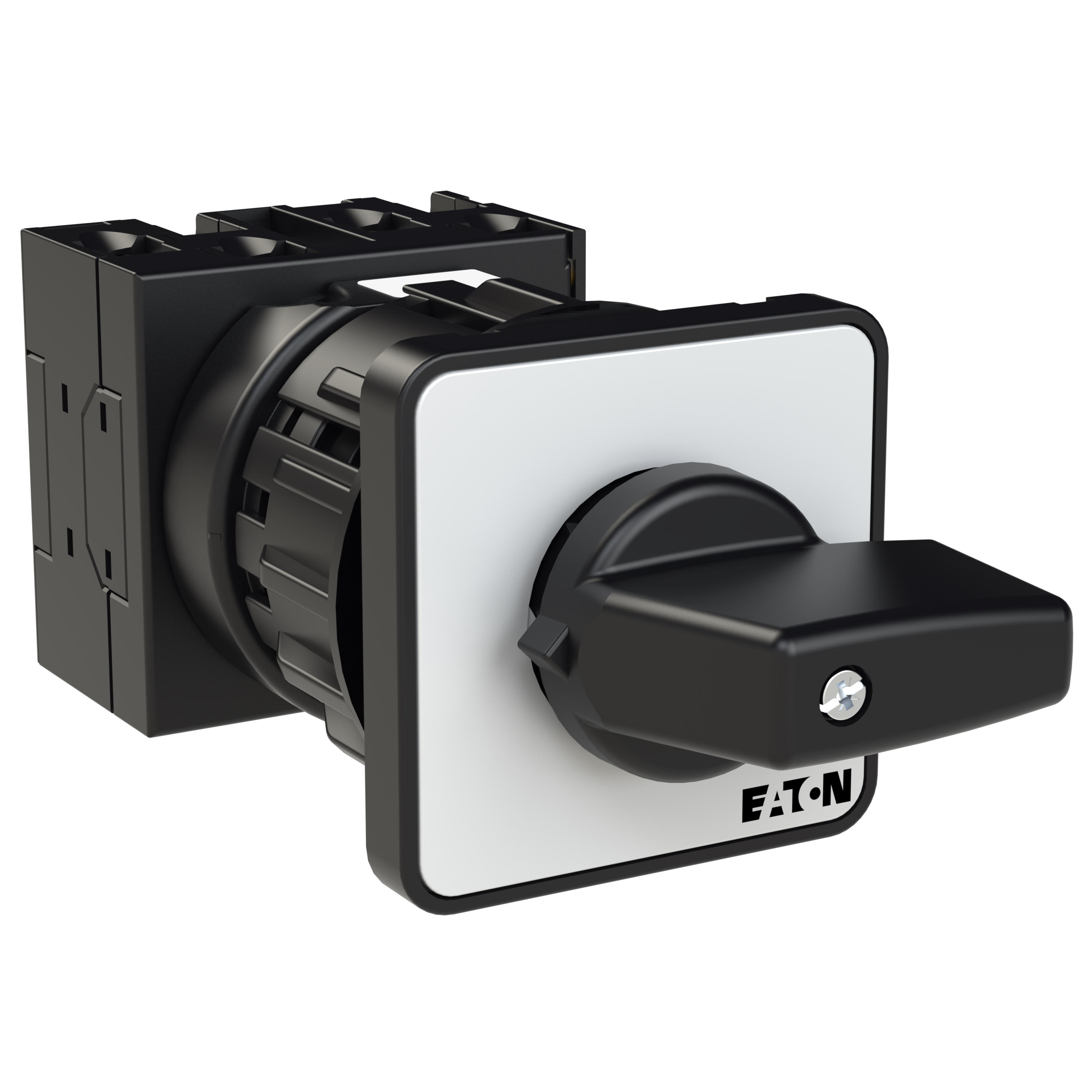

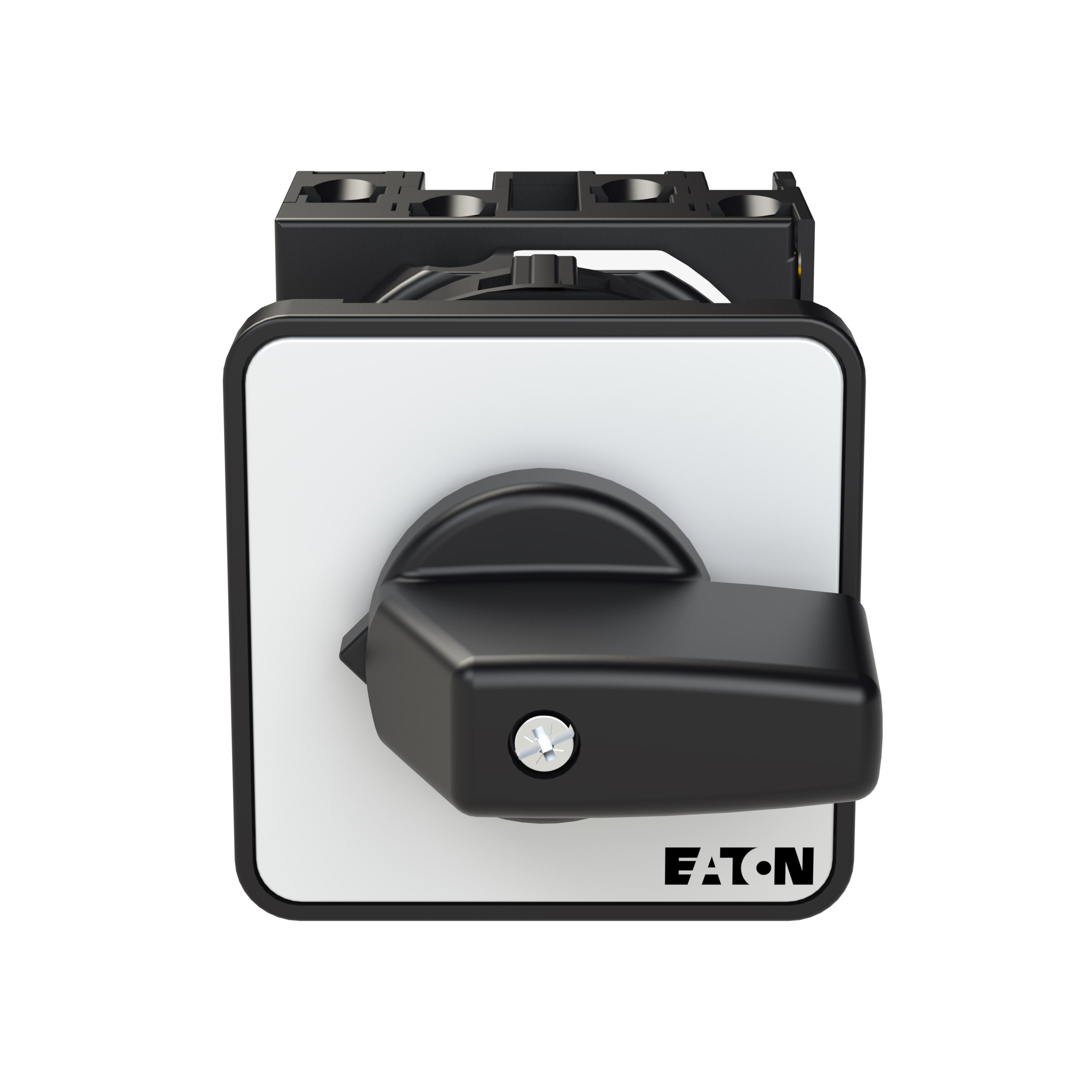

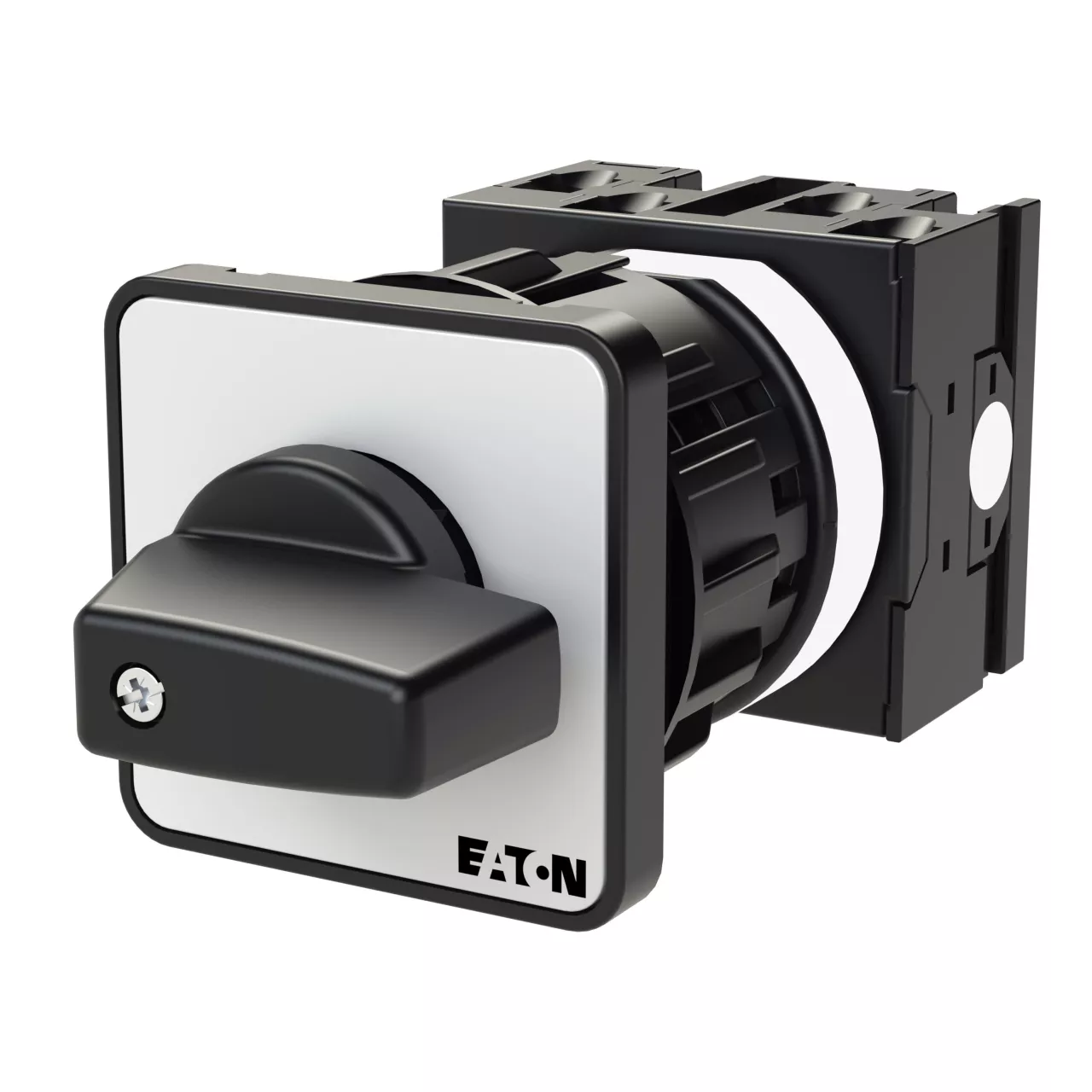

T0-2-15422/EZ Przełącznik zasilania, Styki: 4, 20 A, tabliczka: 2-0-1, 45 °, bez samopowrotu, montaż natablicowy 22,3 mm, pokrętło czarne bez możliwości blokady
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 022244 |
| GTIN(EAN) | 4015080222446 |
| Price unit | piece |
| Catalog price | 324,84 zł (264,10 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Łącznik krzywkowy wg IEC/EN60947, wielkość konstrukcyjna T0, otwór mocujący o kształcie do montażu centralnego 22,3 mm, tabliczka czołowa 48X48, klasa ochrony na przedzie IP65 z czarnym pokrętłem, pomiarowy prąd stały Iu 20A, znamionowe napięcie pracy Ue 690V, dostępne akcesoria zgodnie z danymi katalogu łączników krzywkowych T. Konstrukcja ogólna: obudowa natynkowa z izolacją, montaż, montaż centralny, montaż pośredni montaż rozdzielacza IVS.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 124 g |
| ETIM class: | Off-load switch |
| Model: | Reverser |
| Number of poles: | 2 |
| With zero (off) position: | yes |
| With retraction in 0-position: | no |
| Rated permanent current Iu: | 20 A |
| Rated operation current Ie at AC-3, 400 V: | 11.5 A |
| Rated operation power at AC-3, 400 V: | 4 kW |
| Degree of protection (IP), front side: | IP55 |
| Degree of protection (NEMA), front side: | 12 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as change-over contact: | 0 |
| Suitable for floor mounting: | no |
| Suitable for front mounting: | yes |
| Suitable for distribution board installation: | no |
| Suitable for intermediate mounting: | no |
| Complete device in housing: | no |
| Housing material: | Plastic |
| Type of control element: | Short thumb-grip |
| Type of electrical connection of main circuit: | Screw connection |
