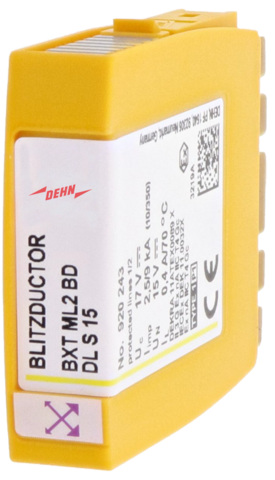

Moduł ochronny BXT ML2 BD DL S 15 do ogranicznika BLITZDUCTOR XT BXT ML2 BD DL S 15
Information | Value |
---|---|
Supplier | DEHN Polska Sp. z o.o. |
Symbol | 920243 |
GTIN(EAN) | 4013364126732 |
Price unit | piece |
Catalog price | 985,45 zł (801,18 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 28,3 g |
ETIM class: | Combined arrester for data networks/MCR-technology |
Nominal voltage DC: | 15.0 - 15.0 V |
Max. continuous voltage AC: | 12 V |
Max. continuous voltage DC: | 17 V |
Lightning impulse current (10/350 µs): | 9 kA |
Nominal discharge surge current (8/20): | 20 kA |
Nominal load current: | 0.4 A |
Voltage protection level core/core: | 24 V |
Voltage protection level core/earth: | 550 V |
Limiting frequency: | 2.7 MHz |
Mounting method: | On basic element |
Connection 1: | Screw terminal |
Pro-active thermo-control: | yes |
With remote signalling contact: | no |
Explosion-tested version: | yes |
Signal disconnection: | no |
Number of conductors (without earthing): | 2 |
Earthing via: | DIN rail (top hat rail) |

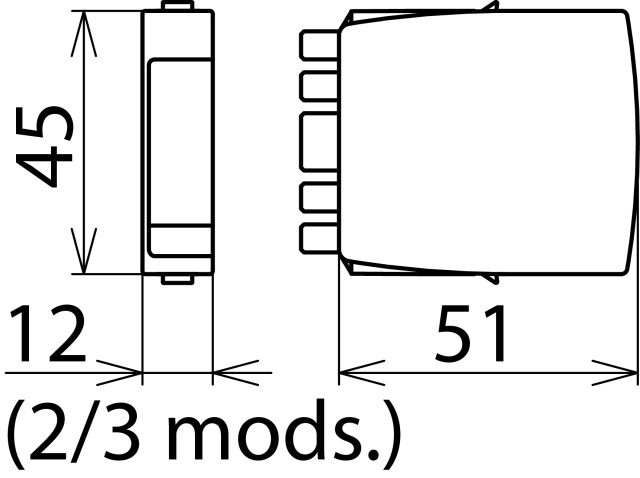

Assembly width: | 12 mm |
Degree of protection (IP): | IP20 |
