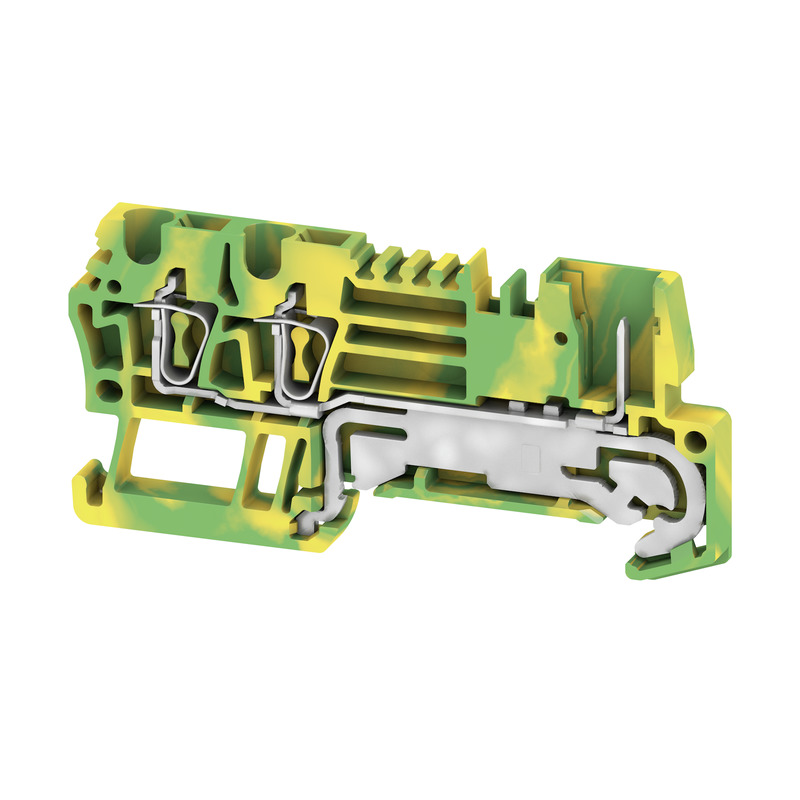

ZTPE 2.5/3AN/1 Złączka szynowa ochronna, nr.katalogowy 1815100000
Information | Value |
---|---|
Supplier | Weidmuller Sp. z o.o. |
Symbol | 1815100000 |
GTIN(EAN) | 4032248370016 |
Price unit | piece |
Catalog price | 11,56 zł (9,40 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Blok zaciskowy służący podłączeniu przewodów uziemienia do podstawy montażowej (ziemi). Hartowana stal wytrzyma przeciążenia, miedź powlekana cyną zapewnia najlepsze przewodnictwo.
Additional features:
Information | Value |
---|---|
ETIM class: | Ground terminal block |
PEN function possible: | no |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 4 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 2.5 mm² |
Connectable conductor cross section solid-core: | 0.5 - 4 mm² |
Type of electrical connection 1: | Spring clamp connection |
Connection position: | Atop |
Number of levels: | 1 |
Number of clamp positions per level: | 3 |
Mounting method: | DIN rail (top hat rail) 35 mm |
Material insulation body: | Thermoplastic |
Operating temperature: | -50 - 120 °C |
Inflammability class of insulation material according to with UL94: | V0 |
Width/grid dimension: | 5.1 mm |
Length: | 34.5 mm |
Closing plate required: | yes |
Colour: | Green/yellow |
