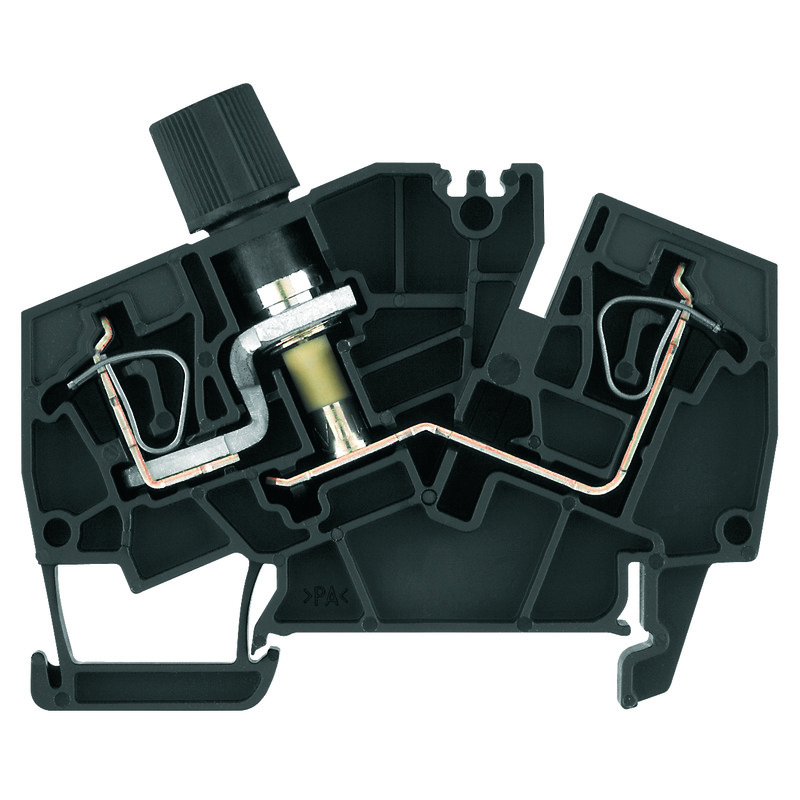

ZSI 2.5-2/2X2AN/G20 Złączka szynowa z bezpiecznikiem, nr.katalogowy 1826050000
Information | Value |
---|---|
Supplier | Weidmuller Sp. z o.o. |
Symbol | 1826050000 |
GTIN(EAN) | 4032248374168 |
Price unit | piece |
Catalog price | 30,04 zł (24,42 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Blok zaciskowy służący do podłączenia lub łączenia przewodników ze stale zabezpieczonym kontaktem. Hartowana stal wytrzyma przeciążenia, miedź powlekana cyną zapewnia najlepsze przewodnictwo. Z wyciąganym nośnikiem na bezpiecznik.
Additional features:
Information | Value |
---|---|
ETIM class: | Fuse terminal block |
Type of fuse insert: | G-fuse 5x20 mm |
Type of fuse holder: | Screwable |
Supply voltage for defect-indication: | 500 - 500 V |
Voltage type for defect indication: | AC/DC |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 4 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 2.5 mm² |
Connectable conductor cross section solid-core: | 0.5 - 4 mm² |
Rated current In: | 10 A |
Rated voltage: | 250 V |
Type of electrical connection 1: | Spring clamp connection |
Number of levels: | 1 |
Connection position: | Inclined |
Mounting method: | DIN rail (top hat rail) 35 mm |
Material insulation body: | Thermoplastic |
Operating temperature: | -50 - 120 °C |
Inflammability class of insulation material according to with UL94: | V0 |
Width/grid dimension: | 12.2 mm |
Length: | 68 mm |
Closing plate required: | yes |
Colour: | Black |
