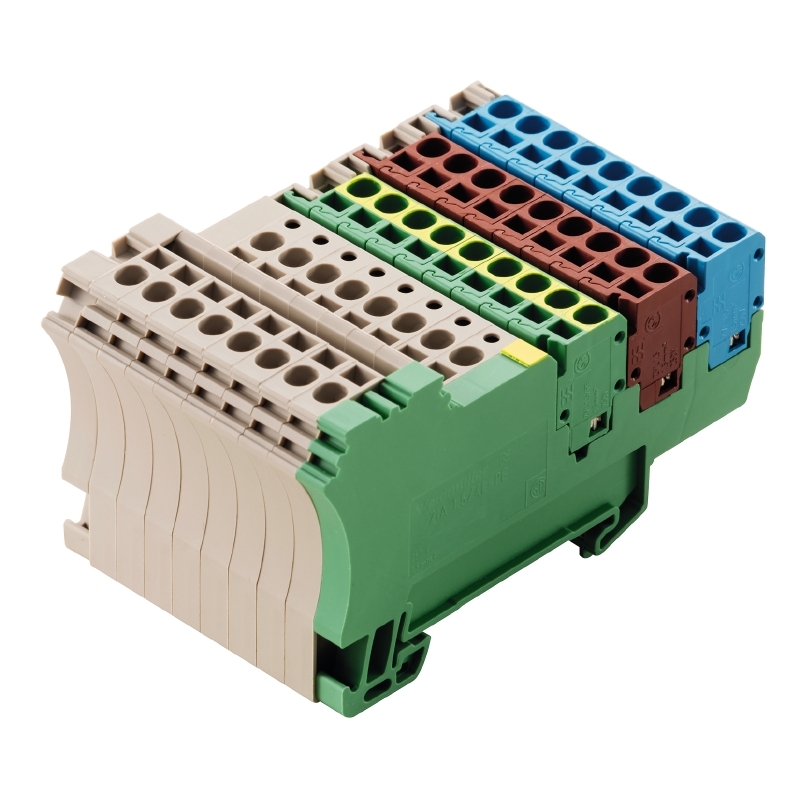

ZIA 1.5/4L-PE/8/KB Złączka szynowa inicjatora / członu wykonawczego, nr.katalogowy 1692670000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 1692670000 |
| GTIN(EAN) | 4008190870386 |
| Price unit | piece |
| Catalog price | 230,80 zł (187,64 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Terminal wyzwalacza/siłownika do łączenia przewodów, rdzeni i kabli z zastosowaniem wytrzymałego i bezpiecznego styku.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Sensor/actuator terminal block |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 2.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 1.5 mm² |
| Connectable conductor cross section solid-core: | 0.5 - 2.5 mm² |
| Rated current In: | 17.5 A |
| Rated voltage: | 250 V |
| Number of levels: | 2 |
| Number of clamp positions per level: | 1 |
| Internally connected stages: | no |
| Type of electrical connection 1: | Spring clamp connection |
| Connection position: | Atop |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -50 - 120 °C |
| Inflammability class of insulation material according to with UL94: | V0 |
| Width/grid dimension: | 51 mm |
| Length: | 45.5 mm |
| Explosion-tested version 'Ex e': | no |
| Colour: | Beige |
| With PE connection: | yes |
