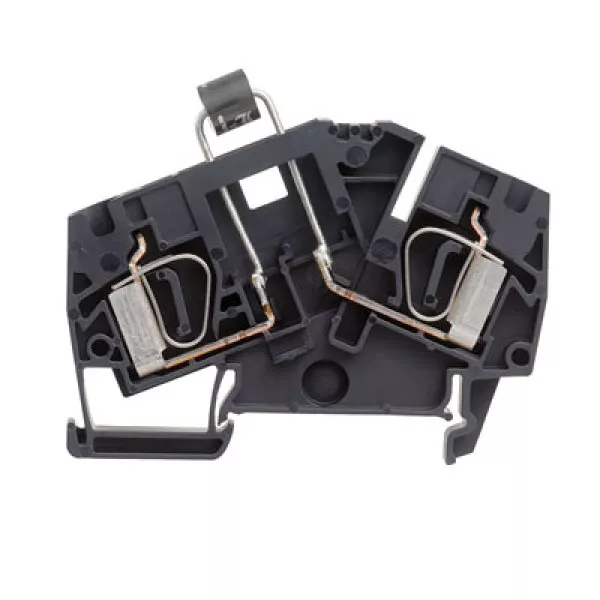

ZDU 6-2/D+ Złączki szynowe z elementami elektronicznymi, nr.katalogowy 1121120000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 1121120000 |
| GTIN(EAN) | 4032248902224 |
| Price unit | piece |
| Catalog price | 59,37 zł (48,27 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Blok zacisków z elementami elektronicznymi.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Component terminal block |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 10 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 6 mm² |
| Connectable conductor cross section solid-core: | 0.5 - 10 mm² |
| Rated current In: | 5 A |
| Rated voltage: | 1000 V |
| Type of electrical connection 1: | Spring clamp connection |
| Connection position: | Inclined |
| Number of levels: | 1 |
| Number of clamp positions per level: | 2 |
| Internally connected stages: | no |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -50 - 120 °C |
| Inflammability class of insulation material according to with UL94: | V0 |
| Width/grid dimension: | 8.1 mm |
| Length: | 70 mm |
| Closing plate required: | yes |
| Colour: | Black |
