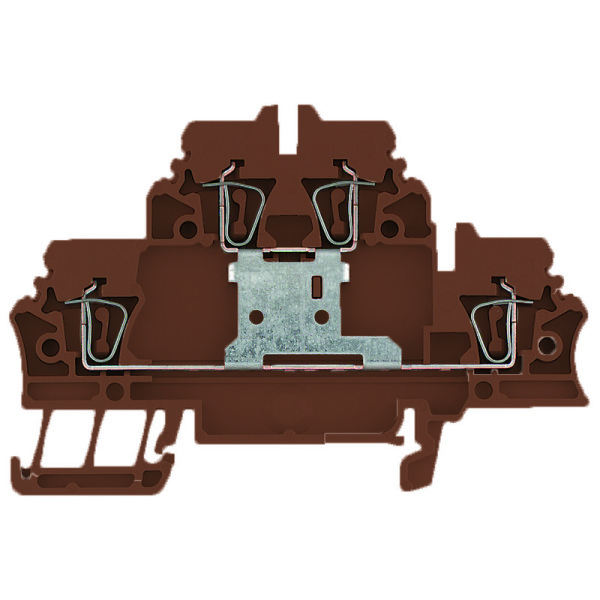

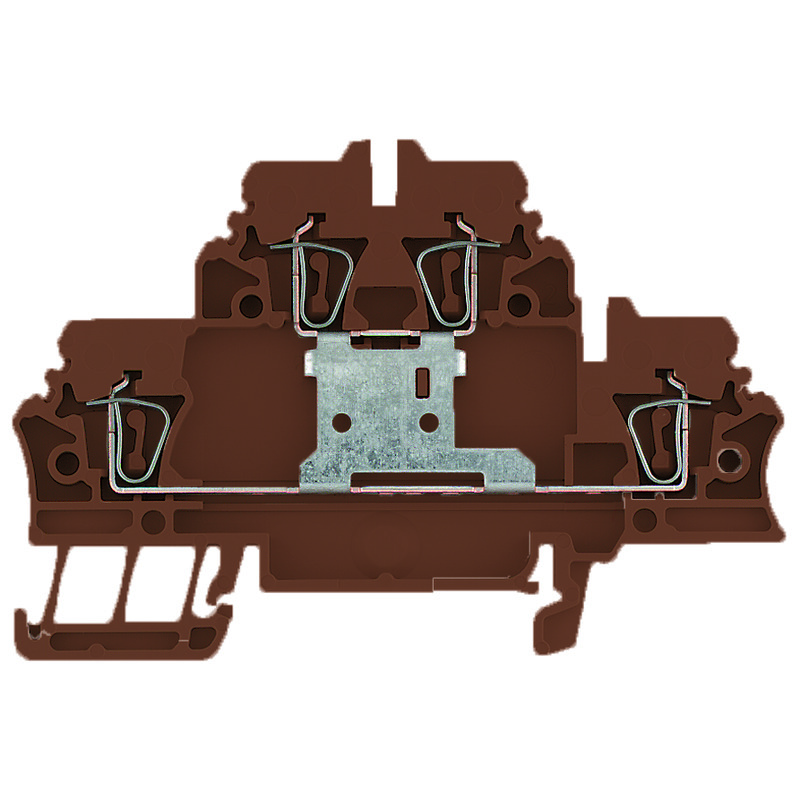

ZDK 2.5V BR Złączka szynowa przelotowa, nr.katalogowy 1799790000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 1799790000 |
| GTIN(EAN) | 4032248251841 |
| Price unit | piece |
| Catalog price | 24,56 zł (19,97 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Blok zaciskowy z wieloma poziomami służący w celu podłączenia lub połączenia przewodników ze stałym bezpiecznym kontaktem. Hartowana stal wytrzyma przeciążenia, miedź powlekana cyną zapewnia najlepsze przewodnictwo. Kompaktowa konstrukcja.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Feed-through terminal block |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 2.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 2.5 mm² |
| Connectable conductor cross section solid-core: | 0.5 - 2.5 mm² |
| Rated current In: | 20 A |
| Rated voltage: | 500 V |
| Type of electrical connection 1: | Spring clamp connection |
| Connection position: | Atop |
| Number of levels: | 2 |
| Number of clamp positions per level: | 2 |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -60 - 130 °C |
| Inflammability class of insulation material according to with UL94: | V0 |
| Width/grid dimension: | 5.1 mm |
| Length: | 79.5 mm |
| Explosion-tested version 'Ex e': | yes |
| Closing plate required: | yes |
| Colour: | Brown |
| Internally connected stages: | no |
