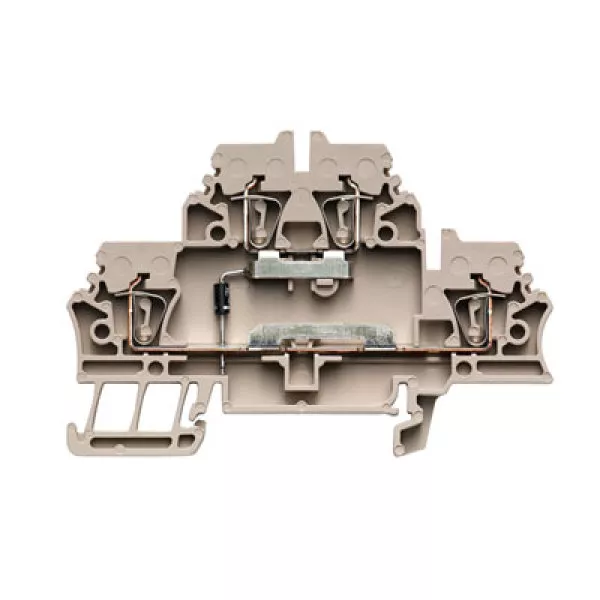

ZDK 2.5/D/1 Złączki szynowe z elementami elektronicznymi, nr.katalogowy 1690020000
Information | Value |
---|---|
Supplier | Weidmuller Sp. z o.o. |
Symbol | 1690020000 |
GTIN(EAN) | 4008190877897 |
Price unit | piece |
Catalog price | 23,53 zł (19,13 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Blok zacisków z elementami elektronicznymi.
Additional features:
Information | Value |
---|---|
ETIM class: | Component terminal block |
Explosion-tested version 'Ex e': | yes |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 2.5 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 1.5 mm² |
Connectable conductor cross section solid-core: | 0.5 - 2.5 mm² |
Rated current In: | 10 A |
Rated voltage: | 500 V |
Type of electrical connection 1: | Spring clamp connection |
Connection position: | Atop |
Number of levels: | 2 |
Number of clamp positions per level: | 2 |
Internally connected stages: | yes |
Mounting method: | DIN rail (top hat rail) 35 mm |
Material insulation body: | Thermoplastic |
Operating temperature: | -50 - 120 °C |
Inflammability class of insulation material according to with UL94: | V0 |
Width/grid dimension: | 5.1 mm |
Length: | 79.1 mm |
Closing plate required: | yes |
Colour: | Beige |
Type of component: | Diode |
