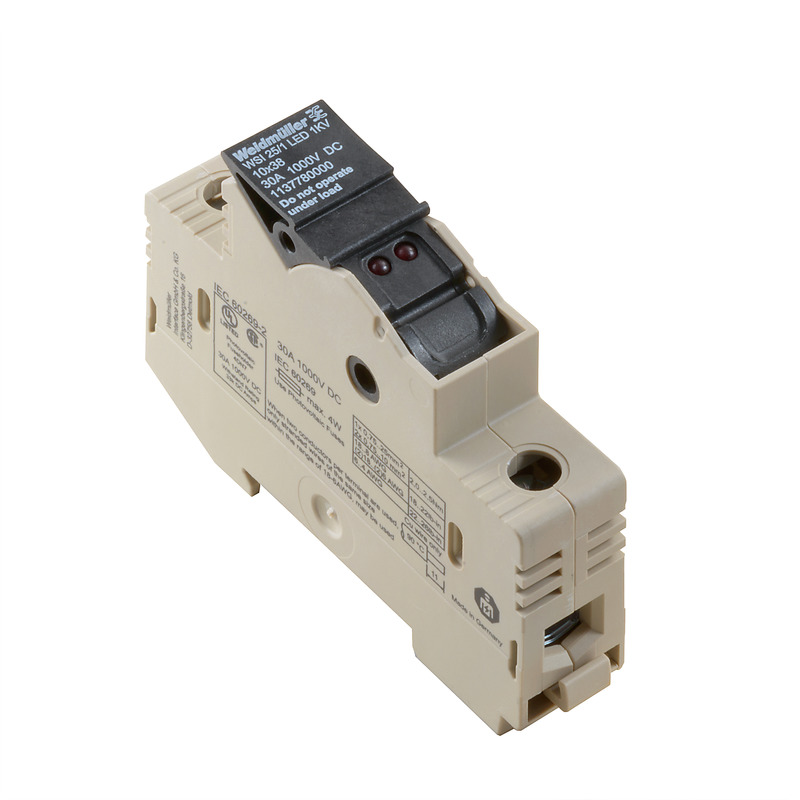

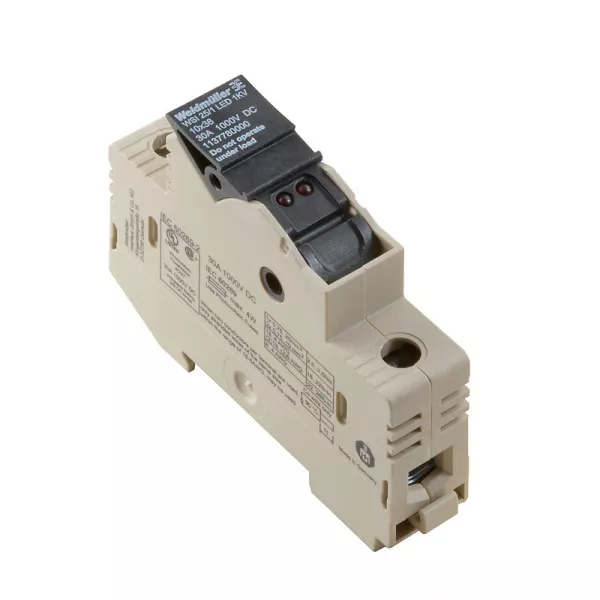

WSI 25/1 10X38/LED 1KV Złączka szynowa z bezpiecznikiem, nr.katalogowy 1137780000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 1137780000 |
| GTIN(EAN) | 4032248957392 |
| Price unit | piece |
| Catalog price | 86,12 zł (70,02 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Blok zaciskowy służący do podłączenia lub łączenia przewodników ze stale zabezpieczonym kontaktem. Hartowana stal wytrzyma przeciążenia, miedź powlekana cyną zapewnia najlepsze przewodnictwo. Z wyciąganym nośnikiem na bezpiecznik.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Fuse terminal block |
| Connectable conductor cross section fine-strand without cable end sleeve: | 1.5 - 25 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 1.5 - 25 mm² |
| Connectable conductor cross section solid-core: | 1.5 - 25 mm² |
| Connectable conductor cross section multi-wired: | 1.5 - 25 mm² |
| Rated current In: | 30 A |
| Rated voltage: | 1000 V |
| Type of electrical connection 1: | Screw connection |
| Number of levels: | 1 |
| Connection position: | Sideways |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -50 - 120 °C |
| Inflammability class of insulation material according to with UL94: | V0 |
| Width/grid dimension: | 18 mm |
| Length: | 81 mm |
| Closing plate required: | no |
| Colour: | Beige |
