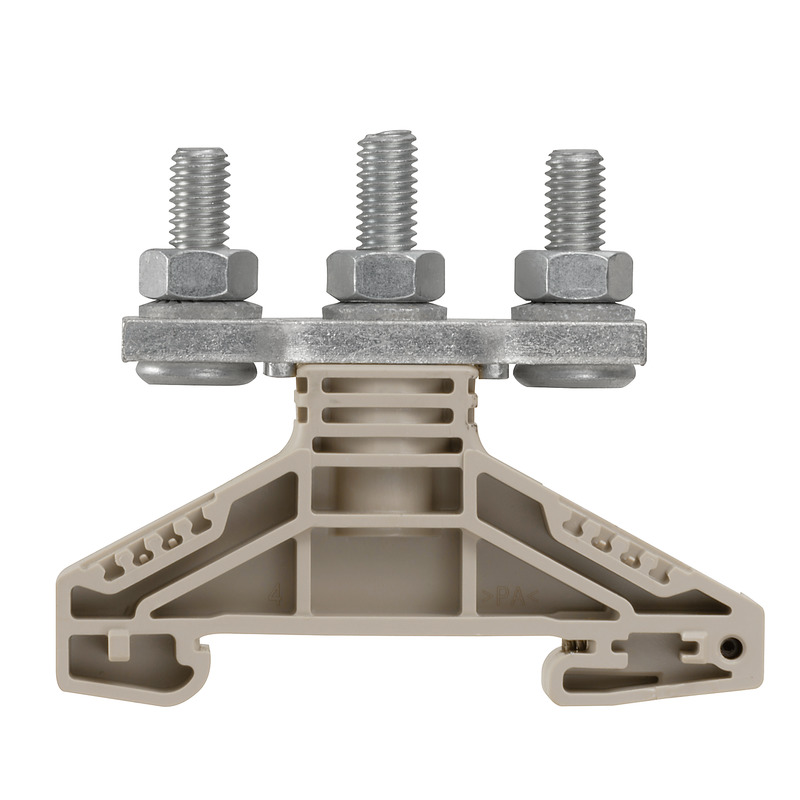

WF 6/2BZ Złączka szynowa przelotowa, nr.katalogowy 1789770000
| Information | Value |
|---|---|
| Supplier | Weidmuller Sp. z o.o. |
| Symbol | 1789770000 |
| GTIN(EAN) | 4032248251124 |
| Price unit | piece |
| Catalog price | 54,19 zł (44,06 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Zaciski dla obecnej transmisji. Przewodnik, który ma zostać podłączony jest zaprasowany z końcówką kablową i przymocowany do gwaintowanej śruby zasicku.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Feed-through terminal block |
| Rated current In: | 125 A |
| Rated voltage: | 1000 V |
| Type of electrical connection 1: | Bolt connection |
| Number of levels: | 1 |
| Number of clamp positions per level: | 3 |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -50 - 120 °C |
| Inflammability class of insulation material according to with UL94: | V0 |
| Width/grid dimension: | 17.8 mm |
| Length: | 67 mm |
| Explosion-tested version 'Ex e': | no |
| Colour: | Beige |
| Internally connected stages: | no |
