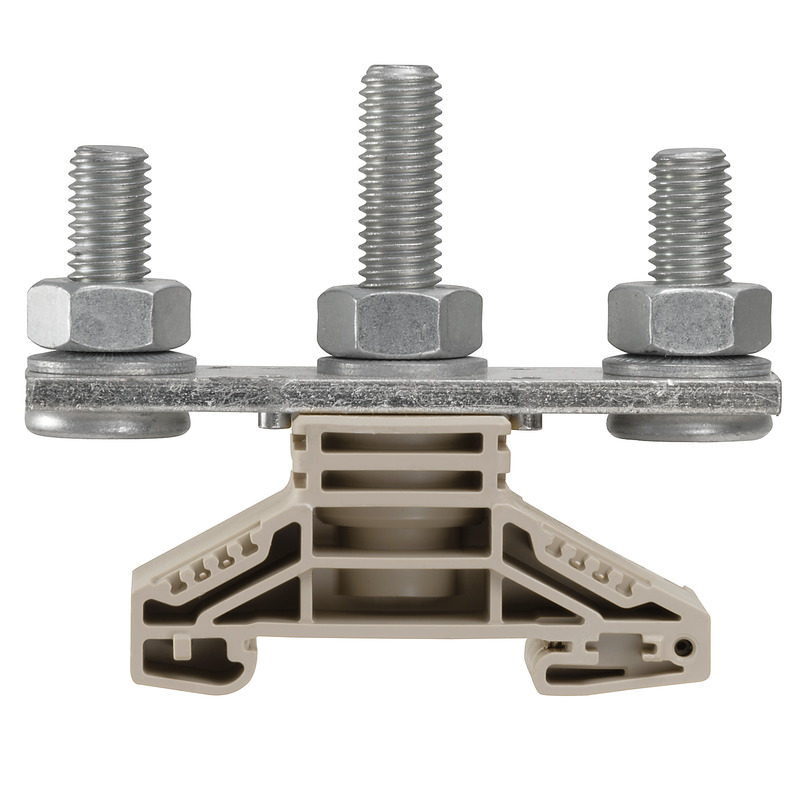

WF 10/2BZ Złączka szynowa przelotowa, nr.katalogowy 1789790000
Information | Value |
---|---|
Supplier | Weidmuller Sp. z o.o. |
Symbol | 1789790000 |
GTIN(EAN) | 4032248251162 |
Price unit | piece |
Catalog price | 67,79 zł (55,11 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Zaciski dla obecnej transmisji. Przewodnik, który ma zostać podłączony jest zaprasowany z końcówką kablową i przymocowany do gwaintowanej śruby zasicku.
Additional features:
Information | Value |
---|---|
ETIM class: | Feed-through terminal block |
Rated current In: | 269 A |
Rated voltage: | 1000 V |
Type of electrical connection 1: | Bolt connection |
Number of levels: | 1 |
Number of clamp positions per level: | 3 |
Mounting method: | DIN rail (top hat rail) 35 mm |
Material insulation body: | Thermoplastic |
Operating temperature: | -50 - 120 °C |
Inflammability class of insulation material according to with UL94: | V0 |
Width/grid dimension: | 33.8 mm |
Length: | 87.6 mm |
Explosion-tested version 'Ex e': | no |
Colour: | Beige |
Internally connected stages: | no |
